Different Parameters, Different Price. Price Reference Only.
TITAN different types of Tri Axle Semi Tipper Trailer for Sale to meet your different needs, like Tri Axle Semi Tipper for Sale, 28cbm dump tipper trailer, 30cbm tipper trailer, 100 ton tipper semi trailer, hydraulic tipper trailers.
Tri Axle Semi Tipper for Sale is a big trailer that usually lifts when dumping its hall in a chosen location. Tri Axle Semi Tipper for Sale will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.
TITAN Tri Axle Semi Tipper trailer adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

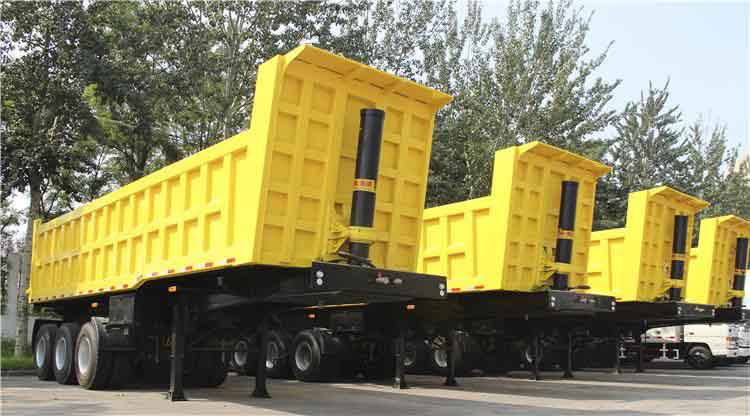

80 Ton Tri Axle Semi Tipper for Sale in Gabon Libreville
80 Ton Semi Tipper for Sale
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
