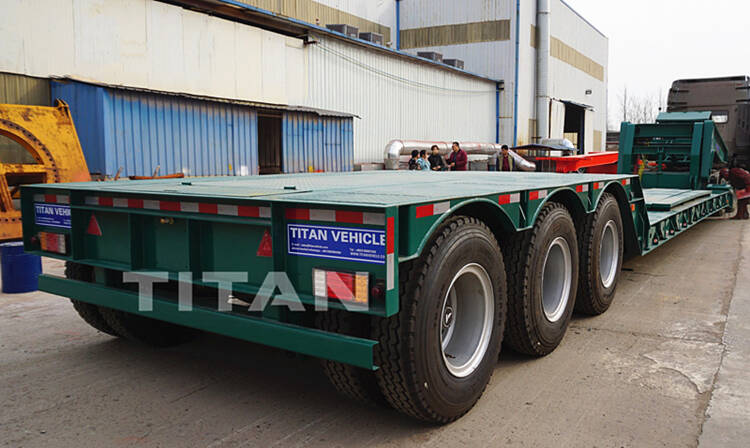

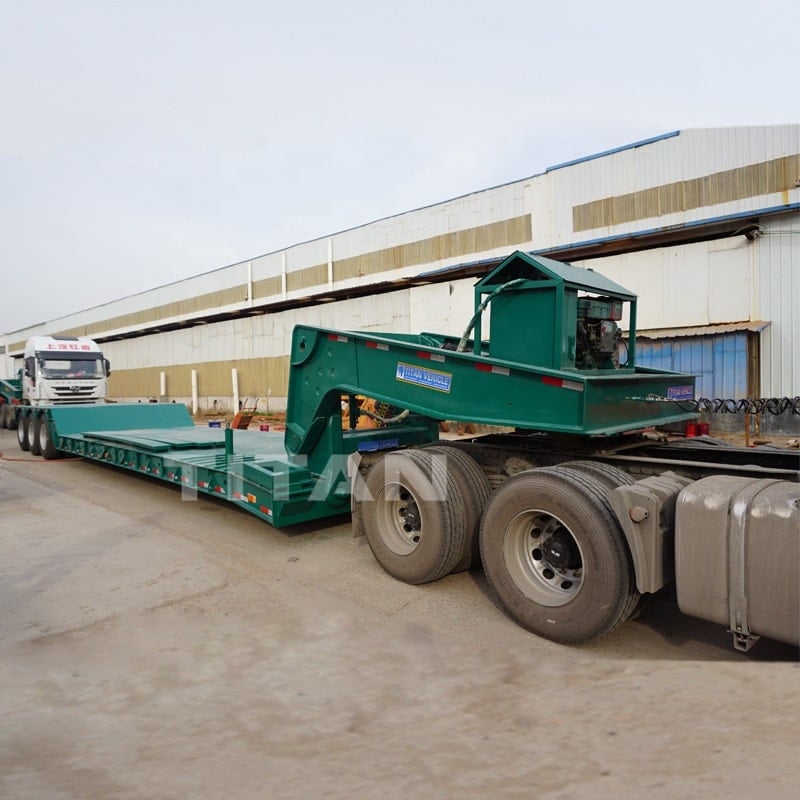

Tri Axles 60 Tons Detachable Gooseneck Trailer
Tri Axles 60 Tons Detachable Gooseneck Trailer

Tri Axles 60 Tons Detachable Gooseneck Trailer

12800 USD

This 3 axle gooseneck lowboy trailer capacity is 60 tons. We also can provide optional solutions for your transport requirements.

SKU: Tri Axles 60 Tons Detachable Gooseneck Trailer
GTIN: 06975766110451
MPN:
Brand: TITAN

Advantage:

1. The lower working platform height for the transport of high and voluminous loads.

2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps is made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.

5. The suspension ensures it has high loading capacity, and increase its capacity to twisting forces, shock, bump.

6. World famous brand spare part, ensure high quality and save costs.

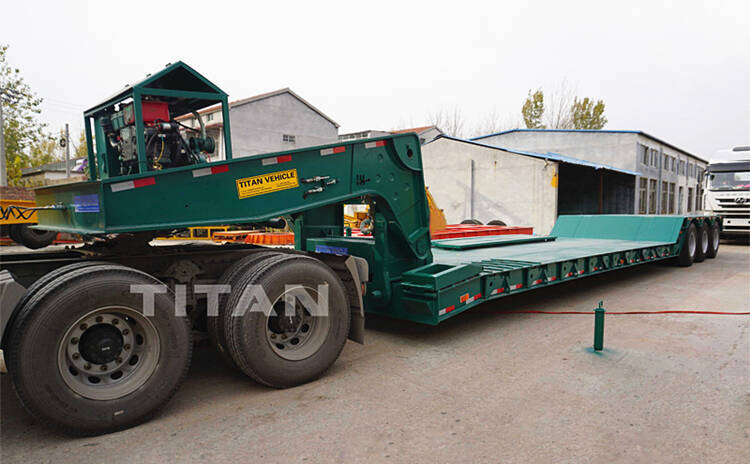

Tri Axles 60 Tons Detachable Gooseneck Trailer



Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 axle

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust





Tri Axles 60 Tons Detachable Gooseneck Trailer

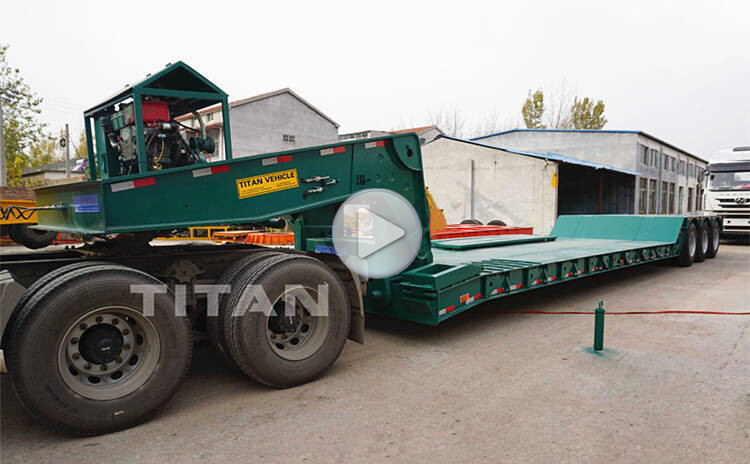

Tri Axles 60 Tons Detachable Gooseneck Trailer details display video

Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click " TITAN Lowboy Trailer" to get the detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!



Looking forward to your reply!
Thanks & Best Regards
Ada
Phone/Whatsapp: +86-15854170398

Email: sales014@titanvehicle.com

Review

kevin from Panama - 2023-04-06T11:04:15+0800
Now after only a few months, I'm ready for TITAN to buy another tri axles 60 tons detachable gooseneck trailer. To add, customer service is the best. Never have I had a better experience.
