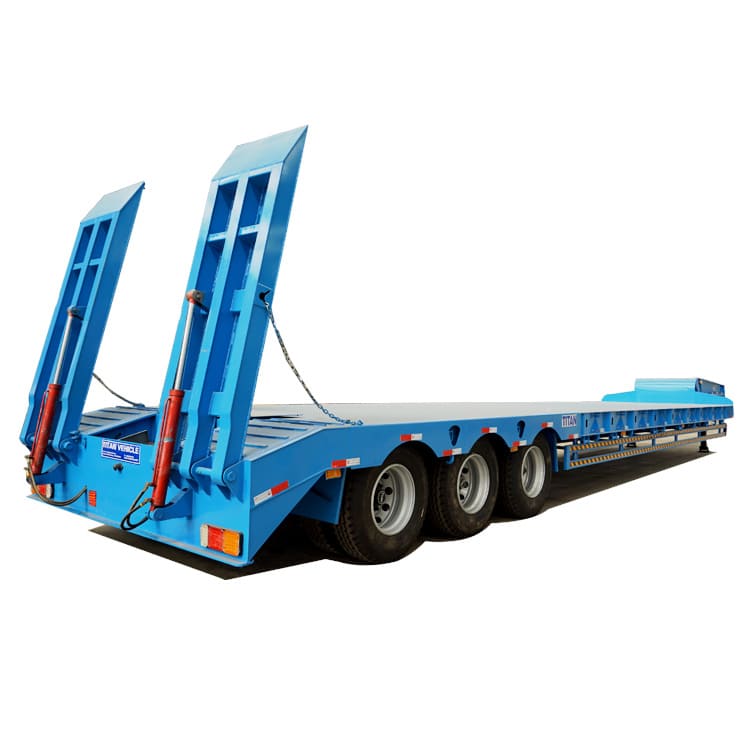

Tri Axles 60T Low Bed Semi Trailer

Tri Axles 60T Low Bed Semi Trailer Description:

The main beam of Titan tri axles 60t low bed semi trailer  is made of HG60 high strength structural steel. HG60 steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than the trailer made of Q345 steel.

Tri Axles 60T Low Bed Semi Trailer for Sale in Kenya Mombasa Manufacturers

Tri Axles 60T Low Bed Semi Trailer for Sale in Kenya Mombasa Manufacturers

Tri Axles 60T Low Bed Semi Trailer for Sale in Kenya Mombasa Manufacturers

Tri Axles 60T Low Bed Semi Trailer Specification：

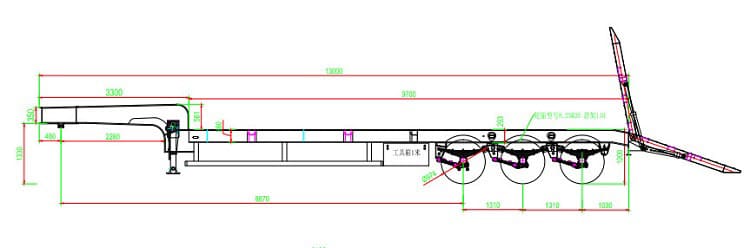

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Tri Axles 60T Low Bed Semi Trailer  Advantages:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

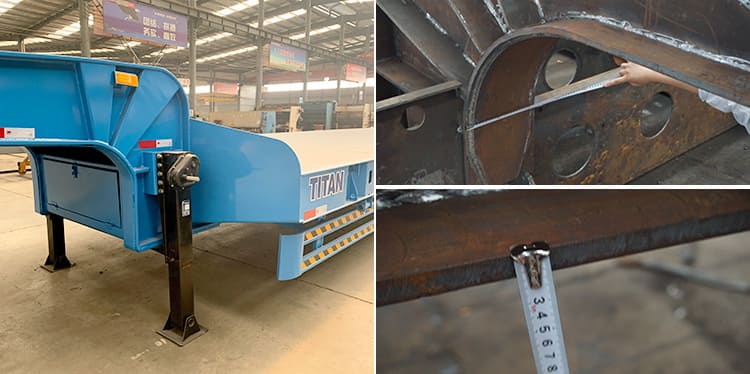

Tri axles 60t low bed semi trailer details display video

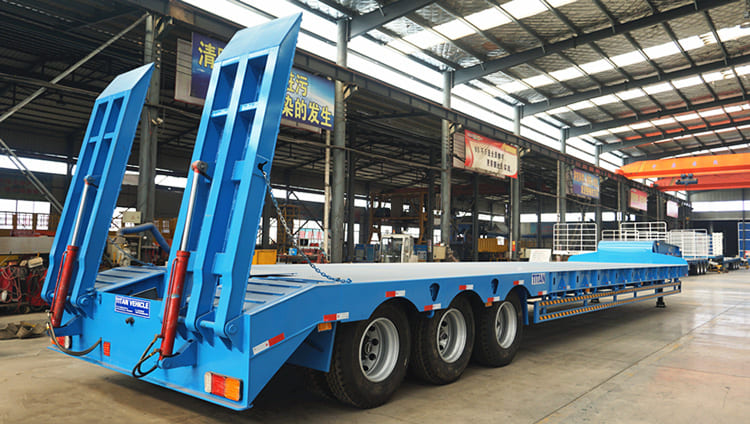

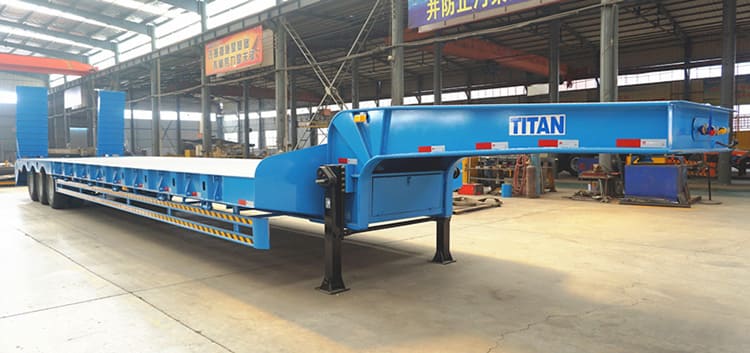

Lowbed trailer in production

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
