Different Parameters, Different Price. Price Reference Only.
The side beam of 4 Axles Semi Low Loader Truck Trailer adopts "H" shape design and is welded with HG 60 steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm.

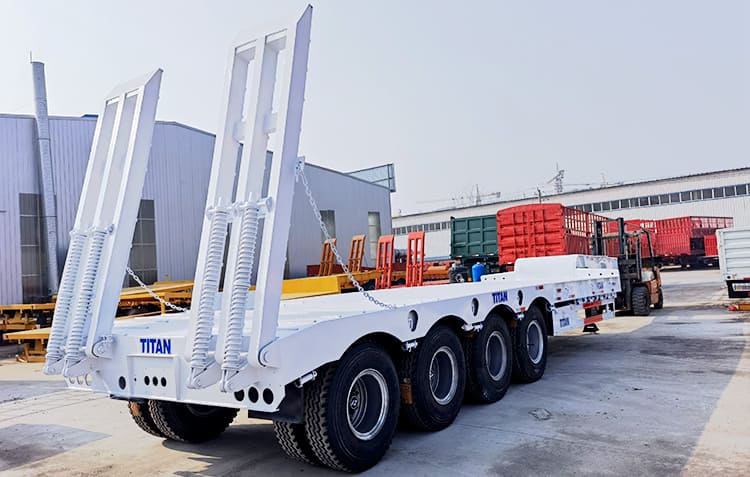

The ramp of the 4 axles semi low loader truck trailer is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.

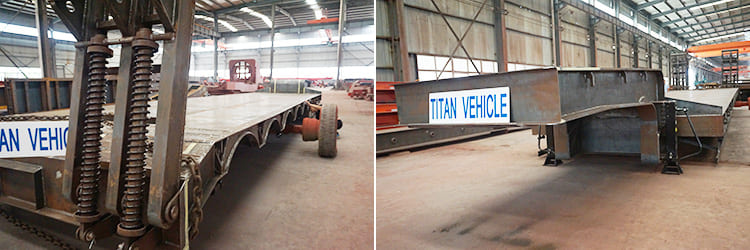

Titan 4 axles semi low loader truck trailer main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer in the heavy load when the deformation range is very small, better to use.

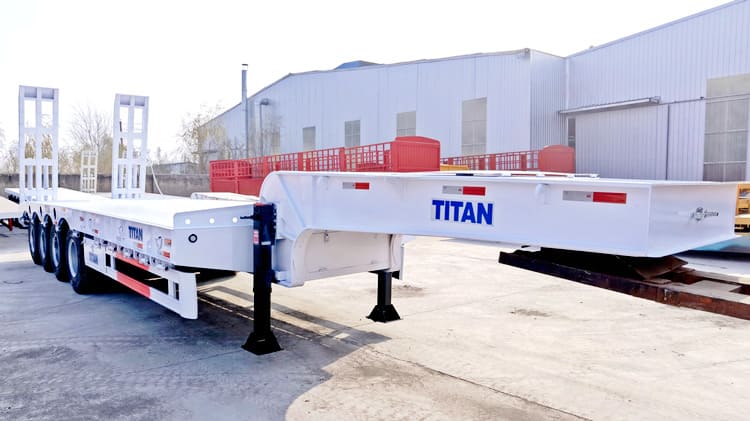

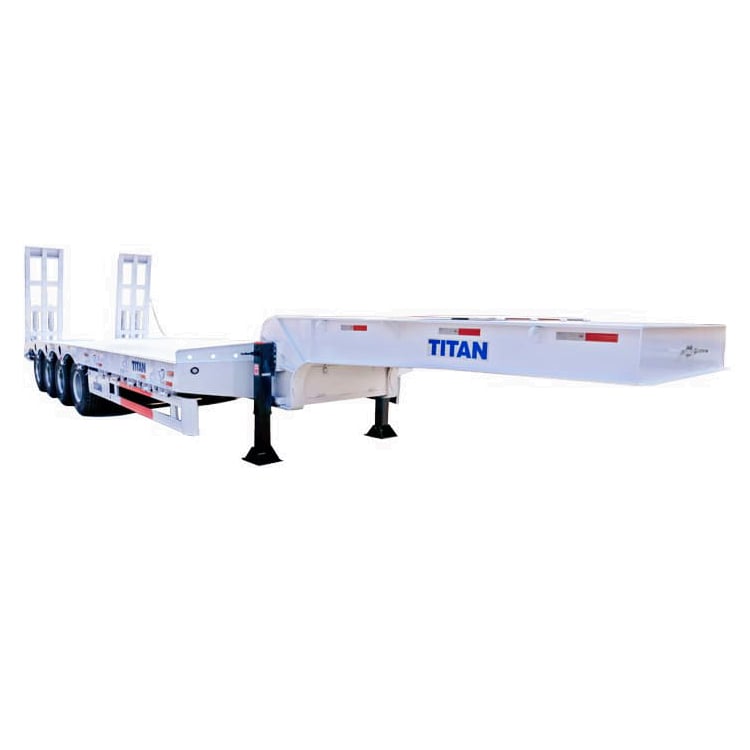

4 Axles Semi Low Loader Truck Trailer for Sale with Prices in Kenya
4 Axles Semi Low Loader Truck Trailer for Sale with Prices in Kenya
4 Axles Semi Low Loader Truck Trailer for Sale with Prices in Kenya
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 4 axle, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
