45000 Litres Fuel Tanker Semi Trailer
45000 Litres Fuel Tanker Semi Trailer

45000 Litres Fuel Tanker Semi Trailer

13600 USD

Different Parameters, Different Price. Price Reference Only.



After the production of 45000 Litres Fuel Tanker Semi Trailer , it will be carried out pressure test and metal inspection test, to ensure the tank sealing is good.

SKU: 45000 Litres Fuel Tanker Semi Trailer
GTIN: 06975766110093
MPN: TITAN9201017
Brand: TITAN

45000 Litres Fuel Tanker Semi Trailer Description:

45000 Litres fuel tanker semi trailer adopts longitudinal welding technology to reduce the number of weld seams of the tank and improve the overall firmness of the tank by more than 20%. The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.

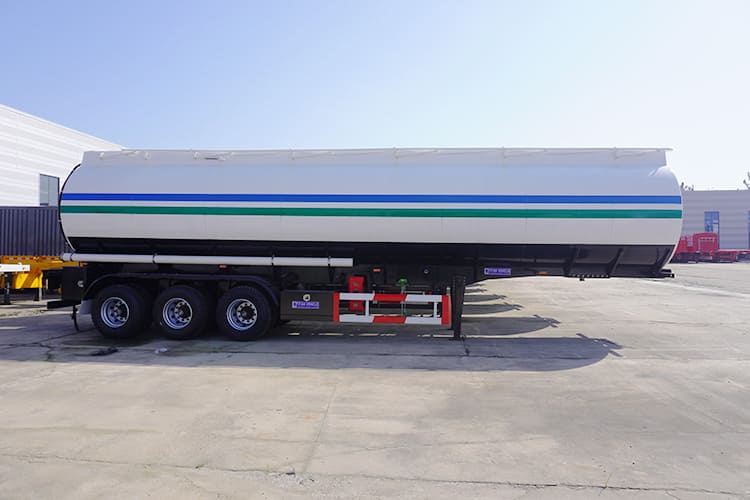

45000 Litres fuel tanker semi trailer

45000 Litres Fuel Tanker Semi Trailers for Sale with Good Prices Near Me in Kenya Mombasa

45000 Litres fuel tanker semi trailer

45000 Litres Fuel Tanker Semi Trailers for Sale with Good Prices Near Me in Kenya Mombasa

45000 Litres fuel tanker semi trailer

45000 Litres Fuel Tanker Semi Trailers for Sale with Good Prices Near Me in Kenya Mombasa

45000 Litres fuel tanker semi trailer



45000 Litres Fuel Tanker Semi Trailer Specification:

Shape: Round or square

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 25-60m³

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

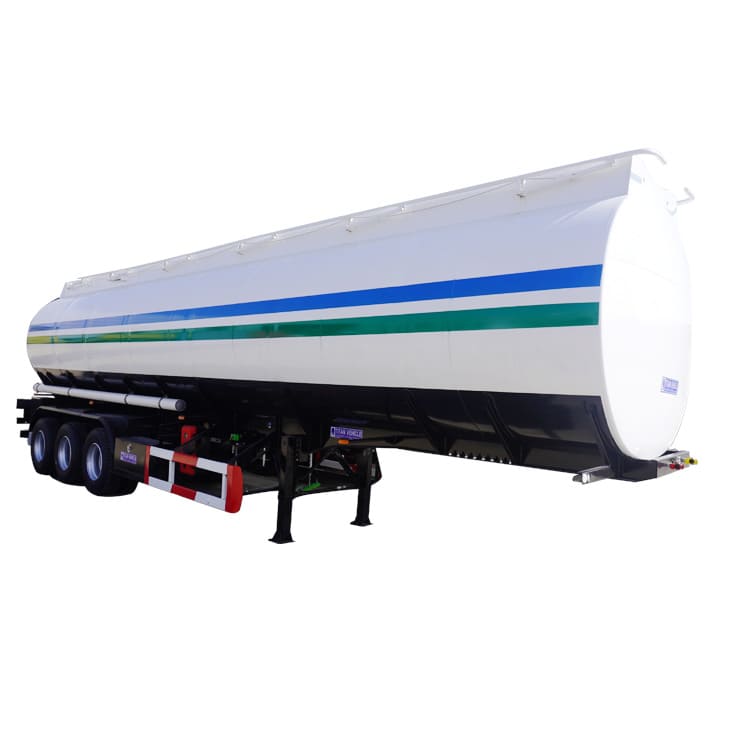

45000 liters fuel tank semi trailer for sale by professional supplier titan vehicle



45000 Litres Fuel Tanker Semi Trailer Advantages:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

6. The waved board reduces the impact of the liquid on the tanker.

7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.



Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

Tanker trailer for sale



Please click " TITAN Fuel Tanker Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!



Review

Solo Kips from Kenya - 2022-04-01T16:04:13+0800
we bought these 45000 litres fuel tanker semi trailer for transporting petrol. It is quiet safe.
