3 Axles 40Ft Skeleton Trailer
3 Axles 40Ft Skeleton Trailer

3 Axles 40Ft Skeleton Trailer

6700 USD

Different Parameters, Different Price. Price Reference Only.



3 Axles 40Ft Skeleton Trailer is specially designed to carry various cargo containers. Container chassis include 20, 40, 45 feet and other types.

SKU: 3 Axles 40Ft Skeleton Trailer
GTIN: 06975766113995
MPN: TITAN9201022
Brand: TITAN

3 Axles 40Ft Skeleton Trailer Description:

3 Axles 40ft skeleton trailer is a trailer whose axle is placed behind the center of gravity of the vehicle (when the vehicle is evenly loaded) and is equipped with a coupling device that can transmit horizontal and vertical forces to the tractor. Specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength.

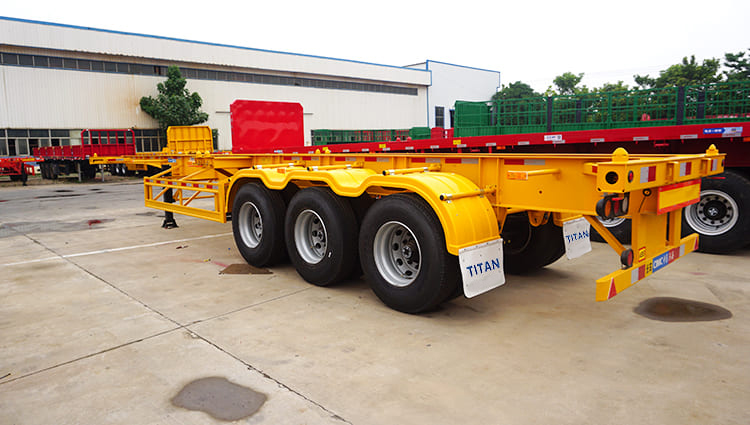

3 Axles 40ft skeleton trailer

3 Axles 40Ft Skeleton Trailer for Sale in Kenya Mombasa

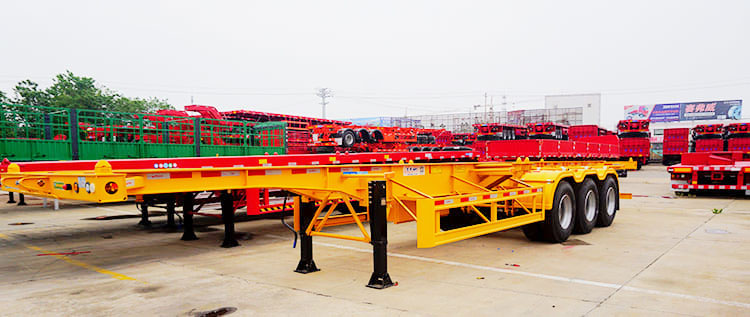

3 Axles 40ft skeleton trailer

3 Axles 40Ft Skeleton Trailer for Sale in Kenya Mombasa

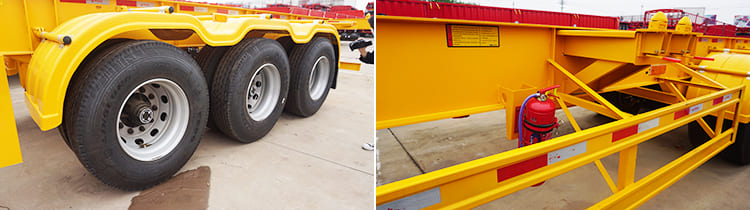

3 Axles 40ft skeleton trailer

3 Axles 40Ft Skeleton Trailer for Sale in Kenya Mombasa



3 Axles 40Ft Skeleton Trailer Specification:

Dimension(mm): 12400x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container



Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
