Tri Axles Semi Tipper Trailer
Tri Axles Semi Tipper Trailer

Tri Axles Semi Tipper Trailer

17500 USD

Different Parameters, Different Price. Price Reference Only.



Tri Axles Semi Tipper Trailer is suitable for the transportation of bulk and scattered goods such as coal, ores, and construction materials.

SKU: Tri Axles Semi Tipper Trailer
GTIN: 06975766111168
MPN: TITAN9201021
Brand: TITAN

Tri Axles Semi Tipper Trailer Description:

Tri axles semi tipper trailer adopts HG60 high-strength steel, high hardness of steel, can effectively prevent collision and avoid deformation of the cargo box.

Tri axles semi tipper trailer with 4 units vice beam, which can make the bottom of the box better bearing capacity, and will not easily deform. The lattice structure of the side door makes the side door more solid.

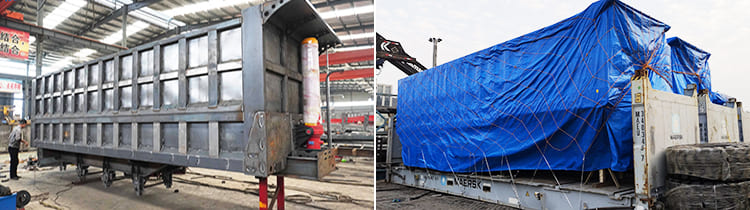

Tri axles semi tipper trailer

Tri Axles Semi Tipper Trailer for Sale with Lower Price in Kenya Nairobi

Tri axles semi tipper trailer

Tri Axles Semi Tipper Trailer for Sale with Lower Price in Kenya Nairobi

Tri axles semi tipper trailer

Tri Axles Semi Tipper Trailer for Sale with Lower Price in Kenya Nairobi



Tri Axles Semi Tipper Trailer  Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

tipper trailer



Please click " TITAN Tipper Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
