Triaxle Flat Bed Truck Trailer
Triaxle Flat Bed Truck Trailer

Triaxle Flat Bed Truck Trailer

9800 USD

Different Parameters, Different Price. Price Reference Only.



Triaxle flat bed truck trailer is the most popular model. TITAN can also offer tri axle flatbed trailer, fence trailer,  semi tipper trailer, fuel tanker trailer the capacity from 40 to 80 tons.

SKU: Triaxle Flat Bed Truck Trailer
GTIN: 06975766112677
MPN: TITAN9403037
Brand: TITAN

Product Description:

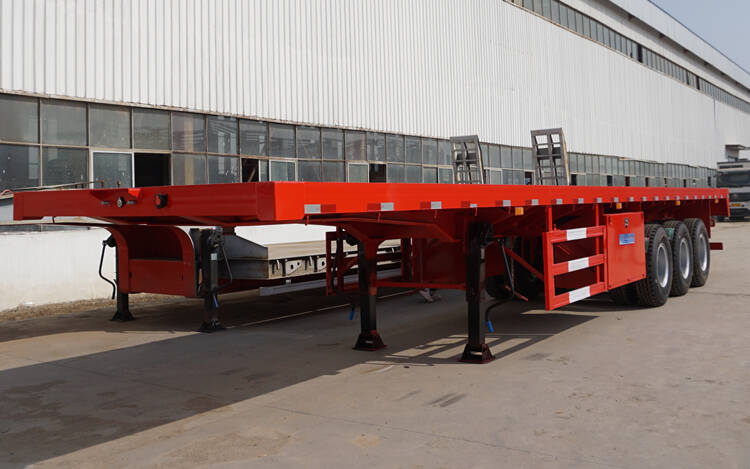

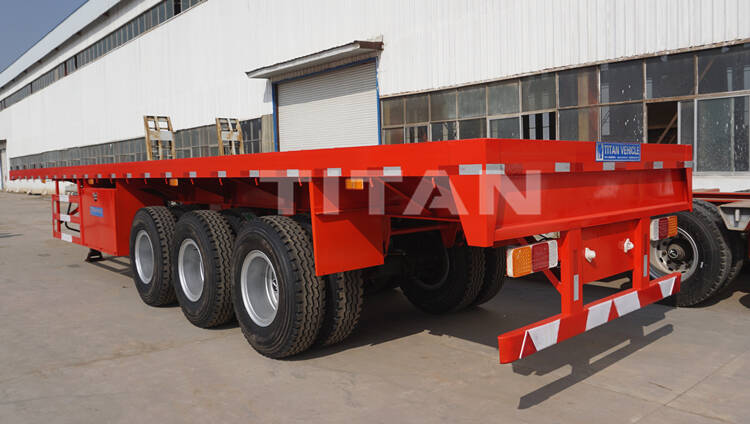

Triaxle flat bed truck trailer is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1×40ft or 2×20ft container.

Each triaxle trailer for sale comes with its own load rating, size, other systems as would be needed for its use. These specifications are very useful in helping you buy the right triaxle flat bed for your operations.

Triaxle Flat Bed Truck Trailer for Sale in Botswana - TITAN Vehicle

Triaxle Flat Bed Truck Trailer for Sale in Botswana - TITAN Vehicle

Triaxle Flat Bed Truck Trailer for Sale in Botswana - TITAN Vehicle



Specification:

Model: Triaxle flat bed truck trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stability and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.

China 40ft Container Flatbed Truck Trailer for Sale - TITAN Vehicle



Video of triaxle flat bed truck trailer:

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.

tri axle trailer for sale



Please click "TITAN Flatbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
