Flatbed Trailer

Triple Axle 40Ft Flatbed Platform Trailer

TITAN triple axle 40ft flatbed platform trailer is mainly used for transporting containers, the length of this platform trailer is 12,5 meters, it is enougth for two 20ft containers to loading on the platform or one 40 foot container. There are also some different length of the flatbed platform trailer, like 4 axle 48 ft, 2 axle 20ft etc.

TITAN can provide customers the different models of triple 40ft flatbed platform trailer, they can customed by buyers need.

Triple Axle 40Ft Flatbed Platform Trailers for Sale

Triple Axle 40Ft Flatbed Platform Trailers for Sale

Triple Axle 40Ft Flatbed Platform Trailers for Sale

40Ft Flatbed Platform Trailer Specification:

Model: triple axle flatbed platform trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

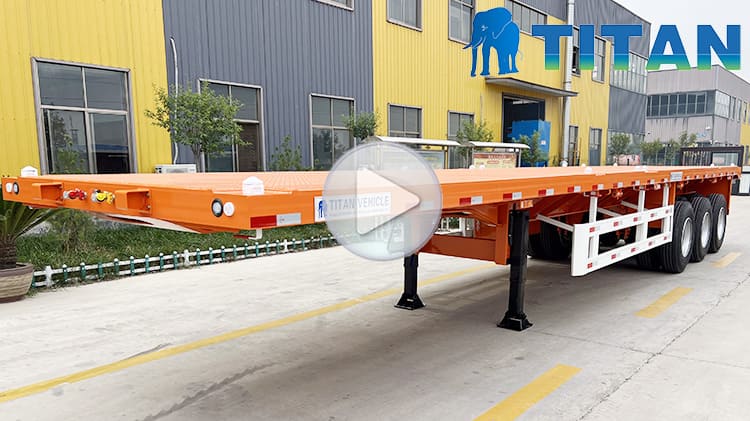

Video of the triple axle 40ft flatbed platform trailer
