The main task of the wind energy trailers for sale is to transport windmill components of various sizes, such as wind blades, wind tower sections, etc. At the same time, it can also be used for long-distance large and ultra-long cargo transportation
This wind energy trailers for sale can adjust its own length and adopts a snap box design. Pulling the main beam can increase the length of the wind energy trailers for sale, up to 62m. The main purpose of this design is to adapt to wind blades of different lengths.
Another advantage of the TITAN wind energy trailers for sale is the use of HG60 high-strength steel, which is very strong and not easy to deform. This wind energy trailers for sale aslo could be used for transporting long heavy cargo goods.

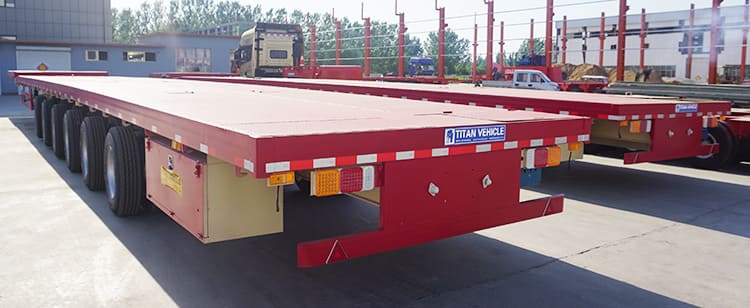

Wind Energy Trailers for Sale in Vietnam

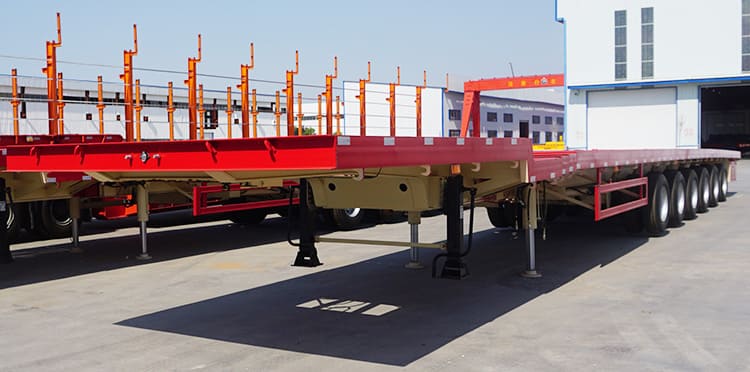

Wind Energy Trailers for Sale in Vietnam

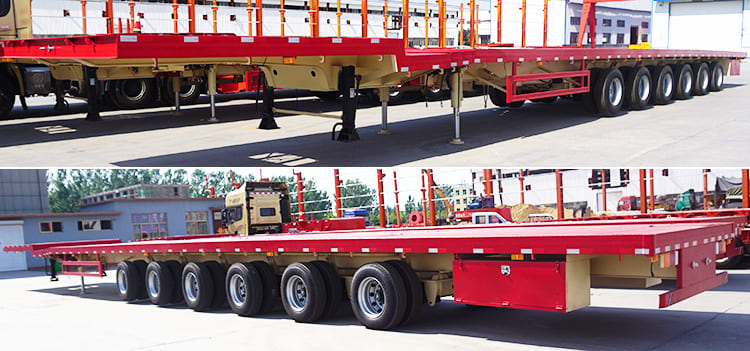

Wind Energy Trailers for Sale in Vietnam
Details of the wind energy trailers for sale

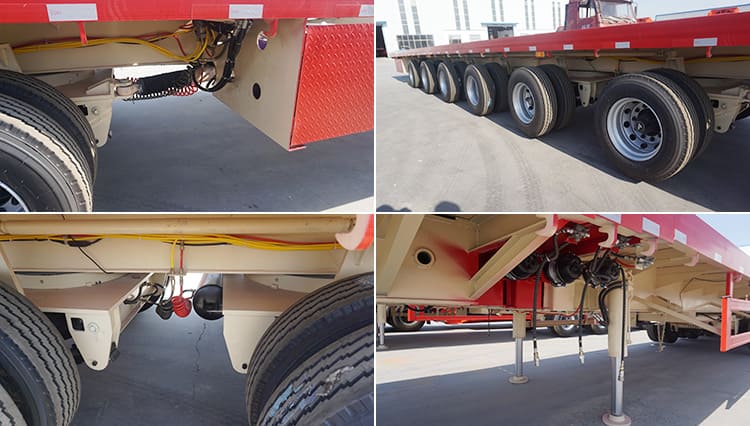

Wind Energy Trailers for Sale in Vietnam
Brand: TITAN wind energy trailer 6 axle 62m
Closed length: 24150mmX3000mmX1650mm
Total length: 62,000mm after extension
Transport: 80m windmill blade
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 6 axle
Tire: 24 units
Kingpin: 3.5 inch
Landing gear: JOST C200
Suspension: Hydraulic suspension
Braking system: WABCO emergency valve

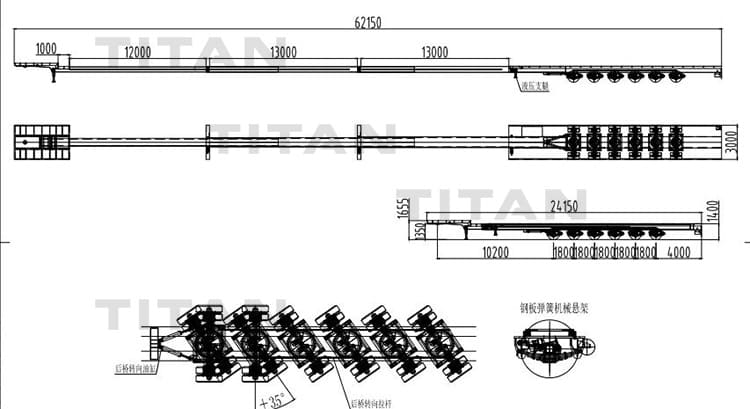

Drawing of the Wind Energy Trailers for Sale
1.The length of the wind energy trailers for sale can be extended to 62m front and rear, which is used for road transportation of special wind blades. This wind energy trailers for sale is characterized by a sturdy frame and a stable extended beam.
2.TITAN can provide you with the suspension mounted on the wind energy trailers for sale: mechanical spring suspension, air suspension or hydraulic suspension.
3.The wind energy trailer whole body is made of high-quality HG60 steel, which has the characteristics of high strength, high rigidity, and not easy to deform. Its loading capacity can reach an astonishing 90 tons.
Wind Energy Trailers for Sale Display Video
