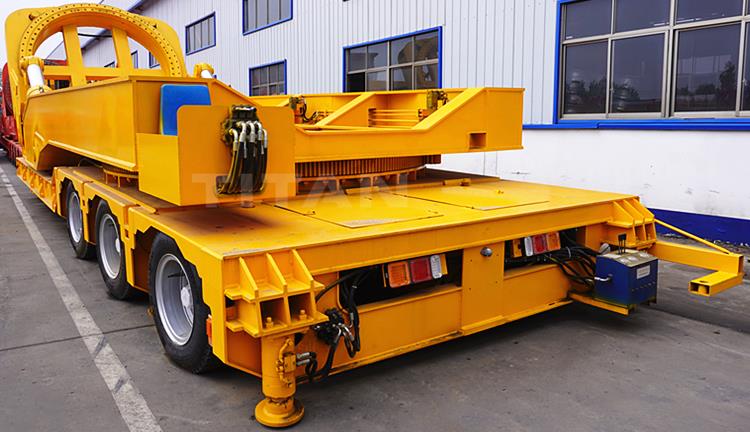

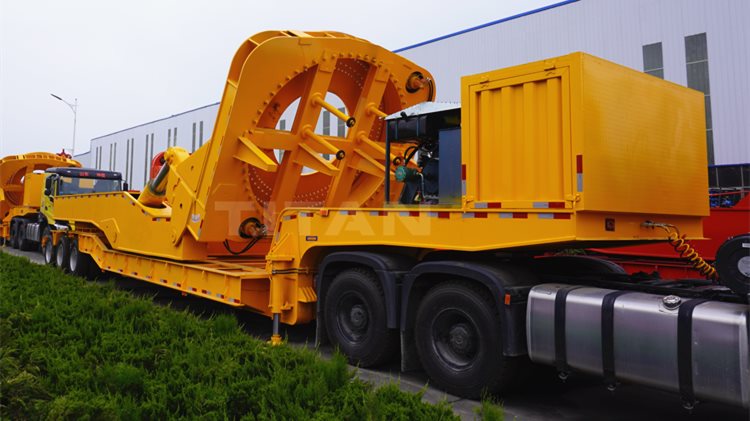

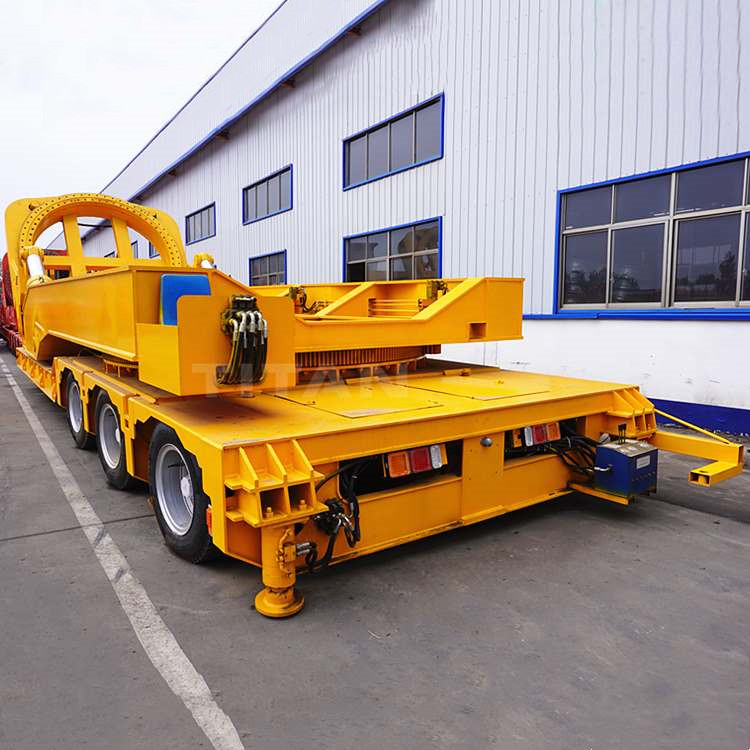

Windmill Blade Transport Adaptor

 Windmill Blade Transport Adaptor Product Description:

Blade lifting movement: when the oil cylinder is compressed, the blade is lifted, and the blade lifting frame shrinks to the center of the rotating axis, and the movement track of the lifting center of gravity is always near the rotating axis, effectively avoiding the instability during transportation, and the lifting angle is within the range of 0 ~ 60 degrees. Rotation movement: the rotating oil cylinder drives the blade on the rotating bracket to deflect left and right along the center of the semi-trailer. The designed deflection angle is ± 45 ° (calculated from the landing in front of the wind blade tip).

Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification:121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Advantage:

1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.

2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

Through this video, you can learn more details about wind blade lifter adaptor , wind blade lifter adaptor for sale , 3 line 6 axle wind blade lifter adaptor, etc.

If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
