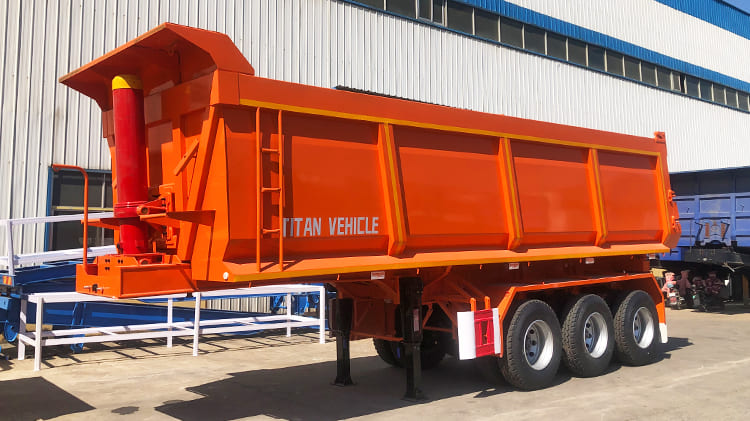

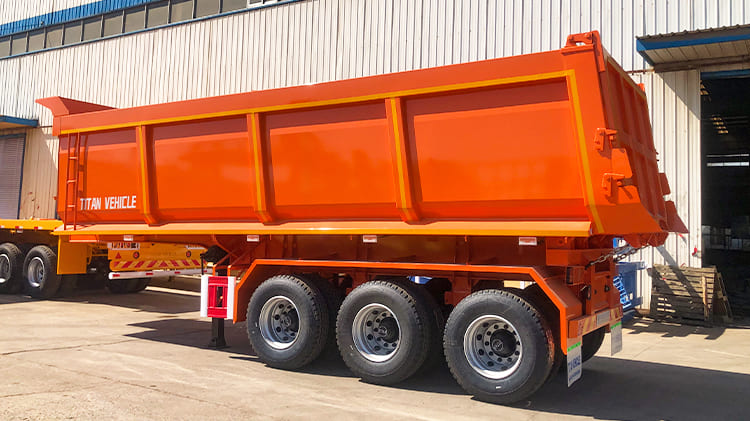

Hydraulic End Dumper Trailer

Rock Dump Trailer Price: 17500 USD

The end dump trailer for sale designed by TITAN is engineered to meet the rigorous demands of modern freight transport, where durability, functionality, and operator comfort must work in harmony.

Comment below to get special discounts on our 2026 new model, limited stock available now.

Comment below to get special discounts on our 2026 new model, limited stock available now.

Specification of Rock Dump Trailer

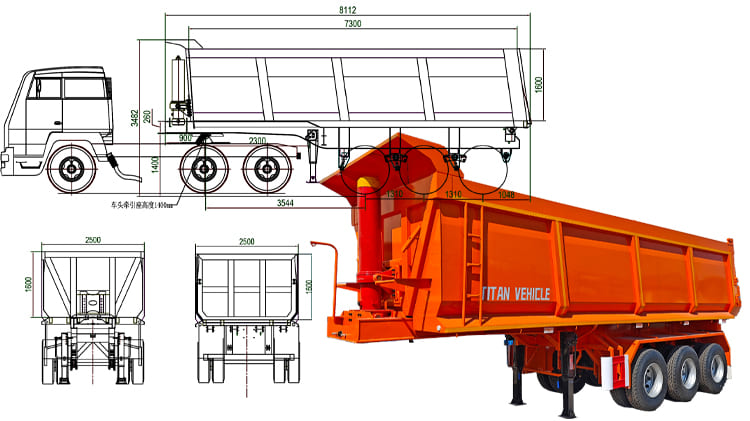

Dimension: 8500mmx2500mm x3950mm

Load Capacity: 60 ton

Tipping System: hydraulic cylinder system

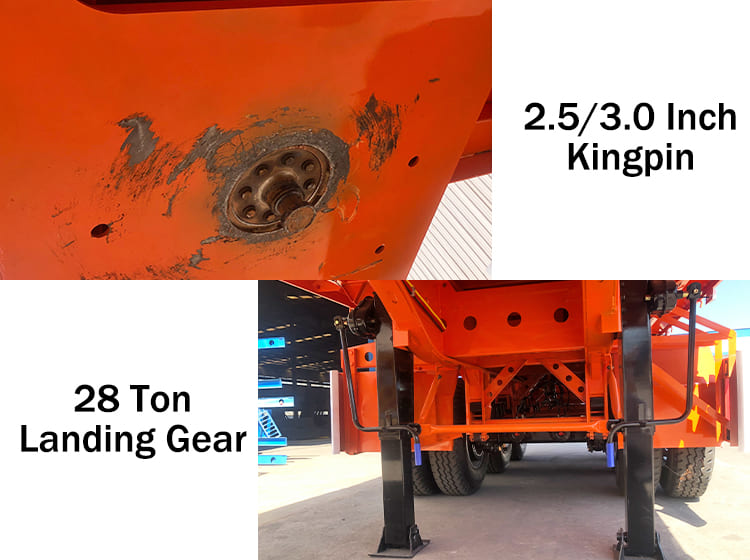

Landing Gear: 28 ton

Axles: 3 axles, 13ton, TITAN brand

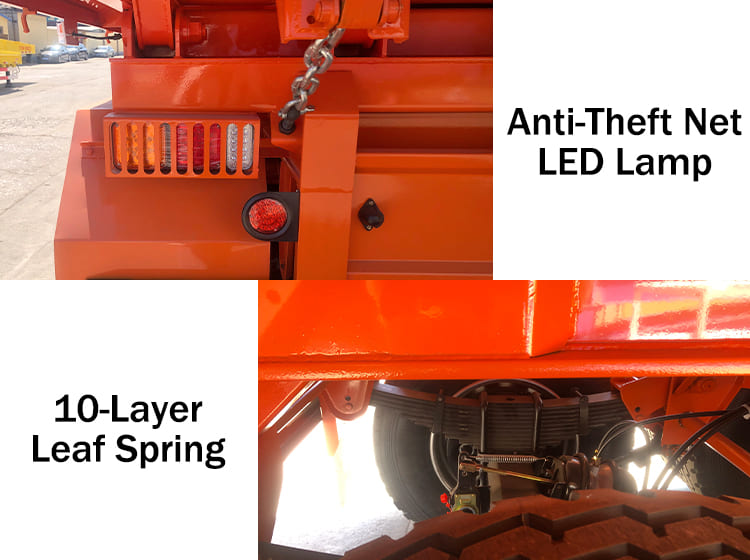

Leaf Spring: 10 layers

Suspension: mechanical suspension

Lamp: LED Lamp with protective net

Tire: 12 units, 12R22.5

Comment below to get special discounts on our 2026 new model, limited stock available now.

Advantage of Rock Dump Trailer

The overall configuration embodies a carefully calculated balance between structural strength, payload capacity, and efficient handling. This synergy makes the hydraulic dump trailer prices model a dependable solution for hauling bulk aggregates, construction materials, and high-density cargo. The streamlined layout allows the dump truck trailer to perform consistently in a wide variety of loading and unloading environments, from construction sites to industrial yards.

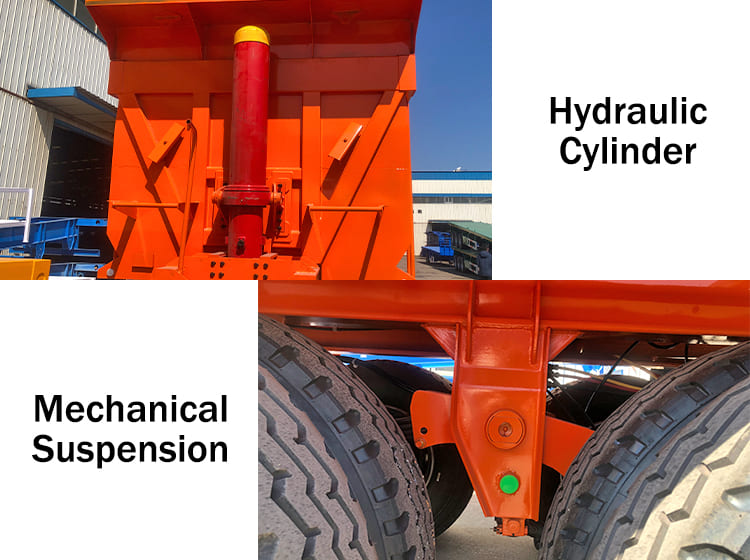

A major contributor to the performance of the heavy duty dump trailers is its advanced hydraulic cylinder assembly. The cylinder adopts a compact, integrated architecture that delivers powerful lifting efficiency while minimizing the need for manual intervention. In narrow job sites, this design becomes especially advantageous by conserving operational space and reducing price dumper trailer for sale repositioning. The hydraulic system accelerates tipping cycles, ensuring that the new dumper price model improves labor productivity and reduces turnaround time. At the core of the chassis is a main beam fabricated from T700 high-strength alloy steel. This material offers significantly greater yield strength than conventional carbon steel, ensuring the price dumper trailer for sale maintains its structural alignment under extreme loads.

Even during continuous transport of dense materials such as ore or stone, the beam resists bending and distortion. This stability is a critical factor in extending the lifecycle of the price of a dumper, particularly in environments where price of a dumper routinely encounter rough ground or uneven job sites.

These reinforcements greatly enhance the safety of the dump truck trailer, reducing the risk of deformation over years of intense commercial use. The added structural resistance ensures the trailer performs steadily even under unpredictable loading patterns.

The mechanical suspension system receives similar attention. The end dump trailer for sale uses a reinforced multi-leaf spring suspension built with ten thickened steel plates. This configuration provides effective shock absorption, protecting both the chassis and the transported load from damage caused by potholes, gravel, or rugged off-road conditions.

The setup also improves driver comfort by reducing chassis vibration, which is especially important for long-distance hauls. Engineered for hot and humid regions, the suspension used in the dump truck trailer also resists corrosion and deformation, contributing further to the trailer’s endurance.

Reliable braking is essential for a trailer designed to handle heavy material, which is why TITAN equips the hydraulic dump trailer prices model with 16-ton brake pads. Larger pads provide faster response and stronger braking force, giving operators confidence when performing emergency stops with a fully loaded new dumper price unit.

Unloading stability is guaranteed by the installation of a reinforced flip stand. When the body of the heavy duty dump trailers is raised, the flip stand distributes the upward load more evenly across the frame, preventing excessive stress concentration. This design is vital to protecting the structural integrity of the price dumper trailer for sale, especially when unloading extremely dense material. The flip stand ultimately promotes a longer chassis lifespan.

A 12 mm one-piece steel traction plate forms a strong, reliable connection between the tractor and the price of a dumper trailer. The single-cut design improves force transmission, enabling smoother turns and reducing shock during transitions between road surfaces.

Comment below to get special discounts on our 2026 new model, limited stock available now.

Shipping of New Dumper Price

Before shipment, each heavy duty dump trailers undergoes a comprehensive anti-corrosion procedure. A thick layer of industrial-grade protective wax coats the entire exterior to form a moisture-resistant seal. Afterward, the end dump trailer for sale is fully wrapped in a heavy-duty waterproof tarpaulin.

This dual-protection packaging prevents oxidation, surface fading, and structural deterioration during sea transport. The preparation ensures every hydraulic dump trailer prices unit, regardless of destination, arrives ready for immediate and reliable service—maintaining both appearance and structural integrity in line with TITAN’s high manufacturing standards.
