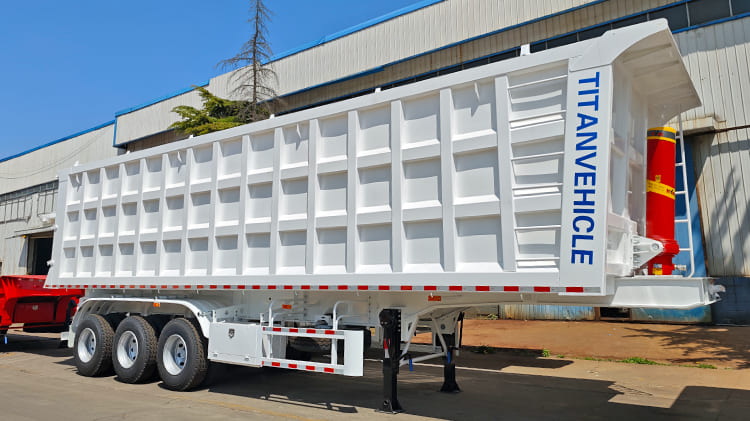

Rear Dump Semi Trailer

Dump Semi Trailer Price: 17500 USD

Every aspect of TITAN's dump semi trailer is developed with real-world operating conditions in mind, achieving a deliberate balance between payload capacity, chassis strength, and operational versatility. That equilibrium lets the rear dump semi trailer handle large-volume, heavy materials while remaining adaptable for different loading scenarios.

Specification of Dump Semi Trailer

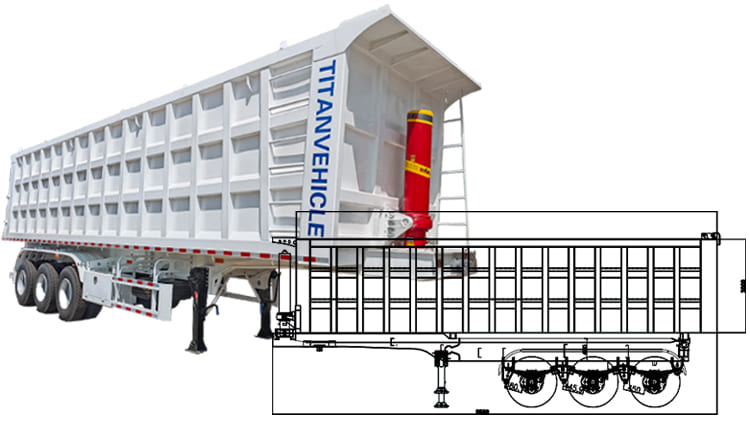

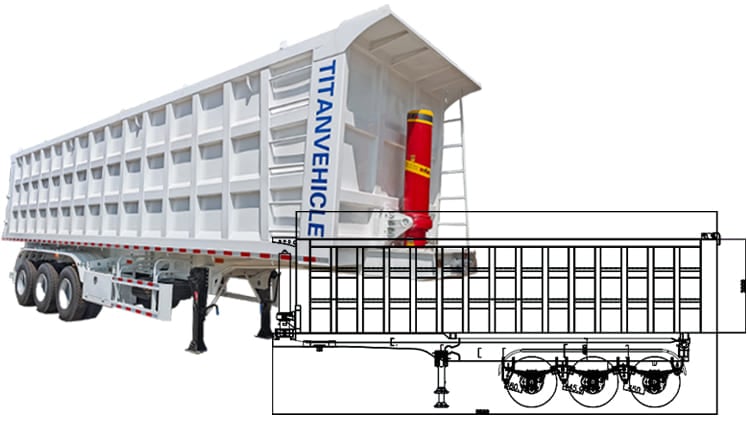

Dimension: 9000mmx2500mm x3950mm

Load Capacity: 60 ton

Volume: 35CBM

Tipping System: hydraulic cylinder

Axles: 3 axles, TITAN brand, 13ton,

Tire: 12 units, 12R22.5

Kingpin: 2.0 /3.5inch JOST brand

Landing Gear: 28 ton

Suspension: mechanical suspension

Leaf Spring: 10 layers

Lamp: LED Lamp

Advantage of Dump Semi Trailer

With a rugged build and practical features, the semi dump trailer capacity platform is a dependable choice for bulk freight operations across Sierra Leone, where long hauls and difficult roads are commonplace.

Visually and functionally, the dump semi trailer body receives a premium powder-spray finish followed by high-temperature baking. Although this coating process raises manufacturing costs slightly, it produces superior adhesion and much greater resistance to weathering than standard paints.

The treated surface stays bright and resists visible wear even after years of regular service, which matters especially for fleets operating in the humid, coastal, and seasonally wet environments found in Sierra Leone.

Structurally, the main beam of the rear dump semi trailer is fabricated from T700 high-strength alloy steel, selected for its excellent tensile strength and yield properties. This alloy resists bending and distortion when the trailer carries uneven or heavy loads and provides outstanding fatigue resistance against the constant shocks and vibrations typical of rough roadways. As a result, the semi dump trailer capacity design retains rigidity over prolonged use, reducing the need for frequent reinforcement or repair.

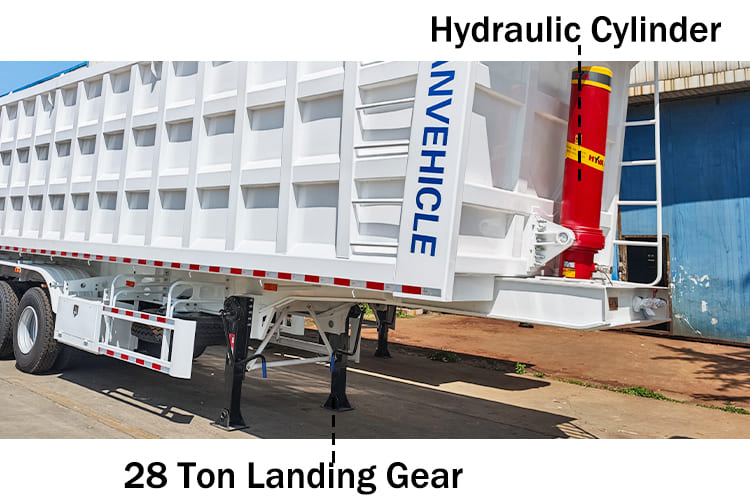

When parked and during coupling or loading operations, the landing gear plays a critical stabilizing role. TITAN fits a heavy-duty support system that spreads the load evenly across the ground and prevents sinking on soft surfaces. The wide-base design increases ground contact and balance, which is crucial when operating on mud, sand, or gravel commonly encountered in remote work sites.

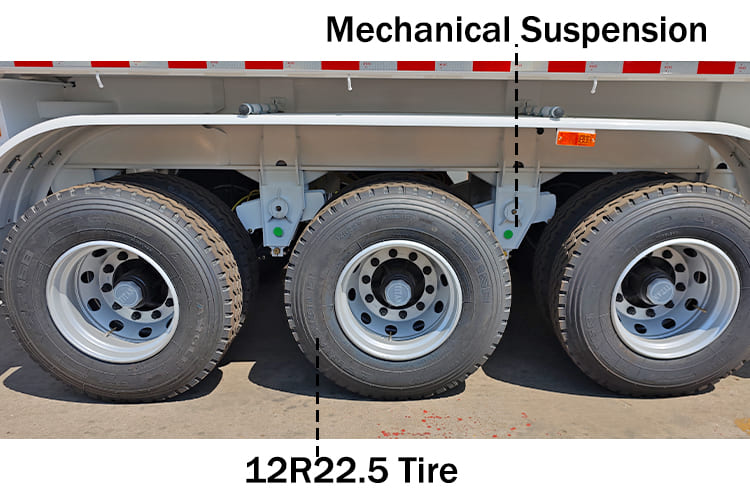

The suspension architecture is engineered for durability and cargo protection. A reinforced mechanical arrangement using thickened, 10-layer leaf springs combined with a 70 mm central balance pin gives the dump semi trailer strong shock-absorbing capacity.

This configuration minimizes the transmission of jolts to the frame and cargo, extends tire life, and maintains a smoother ride even when fully loaded—key benefits for operators moving materials long distances over unpaved stretches in Sierra Leone.

Braking safety is enhanced by the use of 16-ton rated brake pads. Their larger contact area delivers rapid response and shorter stopping distances under heavy loads, an essential safety factor when hauling bulk or potentially hazardous material. Complementary high-pressure pneumatic lines and durable fittings help ensure consistent braking performance under sustained operation.

For tipping operations, the rear dump semi trailer includes a structural flip stand that adds support when the bed is raised. This device helps distribute the lifted weight along the chassis rather than concentrating stress at a single point, protecting the main beam and extending the overall service life of the trailer. The flip stand is especially useful during offloading on uneven ground, where uncontrolled stress could otherwise accelerate wear.

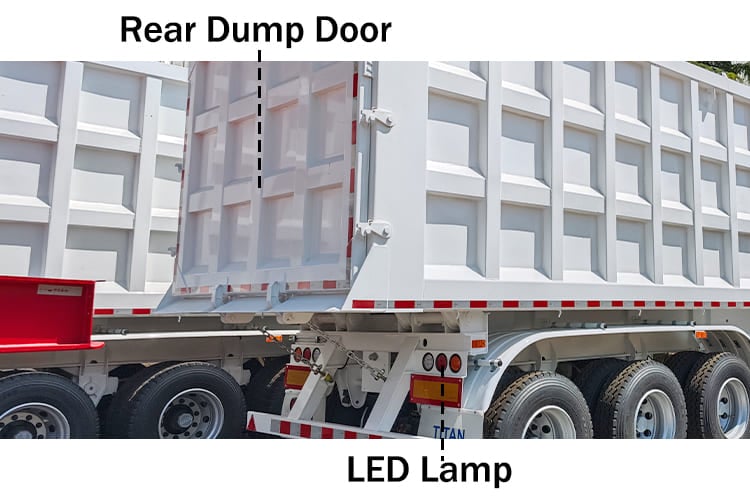

Lighting and visibility are addressed with high-brightness LED fixtures positioned around the semi dump trailer capacity body. LEDs consume less power, last longer, and withstand high-vibration environments better than traditional bulbs—improving safety during night work or in poor weather conditions. Protective housings further guard the lighting system against impact and theft.

Shipping of Dump Semi Trailer

Each unit leaves the factory after a two-step anti-corrosion preparation: a heavy industrial wax application followed by a full waterproof tarpaulin wrapping. This dual-layer preservation keeps the dump semi trailer's exterior and structural elements protected from sea air, salt spray, and moisture during long ocean shipments, ensuring the rear dump semi trailer arrives in Sierra Leone ready for immediate deployment with its semi dump trailer capacity preserved for years of reliable service.
