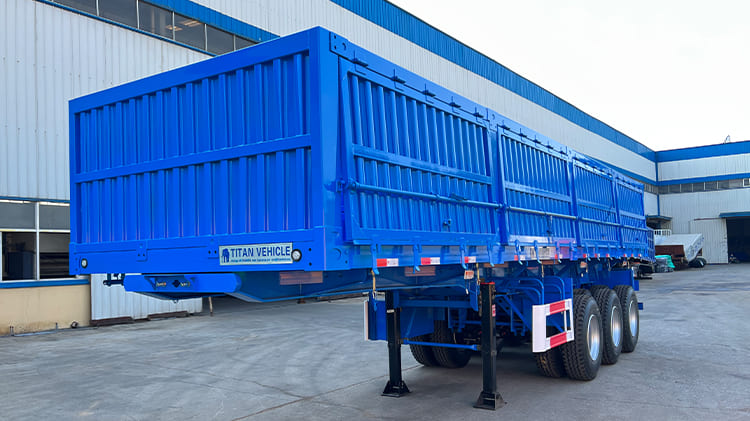

Side Dump Semi Trailer

Side Dump Trailer Price: 17500 USD

The side dump semi trailer has become a dependable and widely adopted solution for transporting bulk materials across multiple industries, thanks to its ability to combine efficiency, durability, and operational reliability.

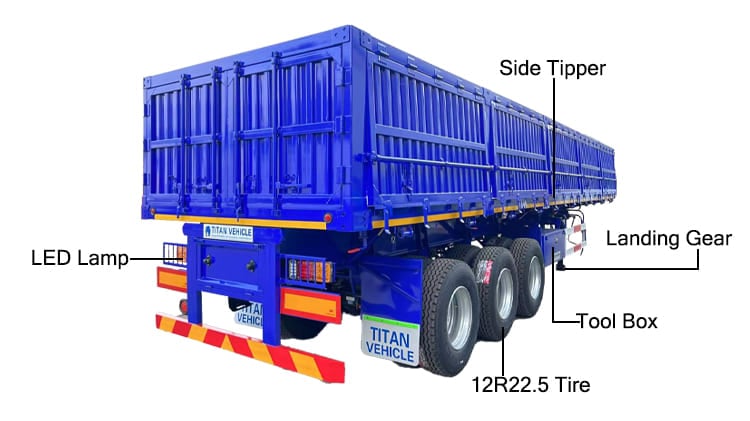

Specification of Side Dump Trailer

Side Wall: 1600mm high

Axle: 3 axles, 13 ton

Tire: 12R22.5, 12units

Suspension: mechanical suspension

Spring leaf: 10 layers

Kingpin: 2.0/3.5 inch

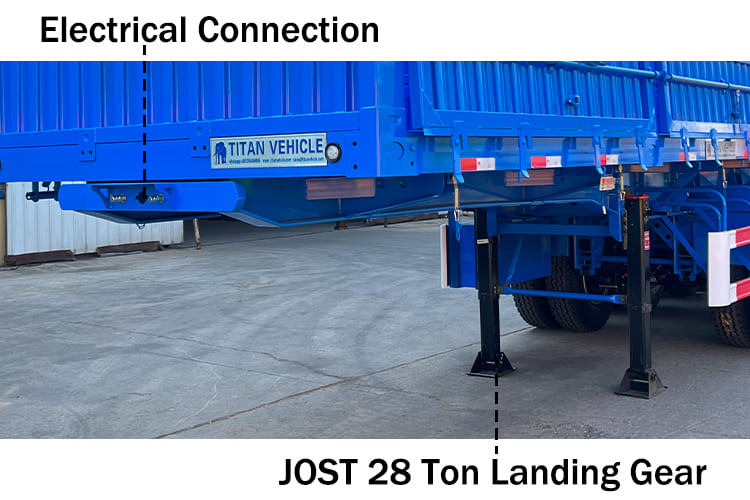

Landing gear: 28 ton, JOST brand

Lamp: LED lamp with net

Advantage of Side Dump Trailer

The side dump trailer capacity optimized structural layout helps maintain a balanced center of gravity while in motion. This feature greatly improves the stability of the side dump semi trailer, minimizing the likelihood of rollovers and ensuring safer transportation even in challenging working environments.

During unloading, materials are released uniformly along the side of the body, preventing pile-ups in a single location. This even discharge pattern not only enhances overall unloading efficiency but also reduces the need for additional manual intervention.

A highly durable beam structure is one of the most important components affecting the side dump trailer capacity and service lifespan. TITAN uses automatic submerged-arc welding technology to guarantee consistent penetration and improve the overall strength of the main beam. This integrated beam design significantly enhances torsional resistance and helps the trailer maintain structural integrity during heavy-load operations.

Additionally, the cross-beam and main beam are reinforced using diagonal braces spaced within 500 mm. This arrangement ensures a more even load distribution while preventing deformation from concentrated stress. The cross beams are fabricated from 100 mm thickened channel steel, which further strengthens the chassis and increases the compression resistance of the side dump trailer capacity structure.

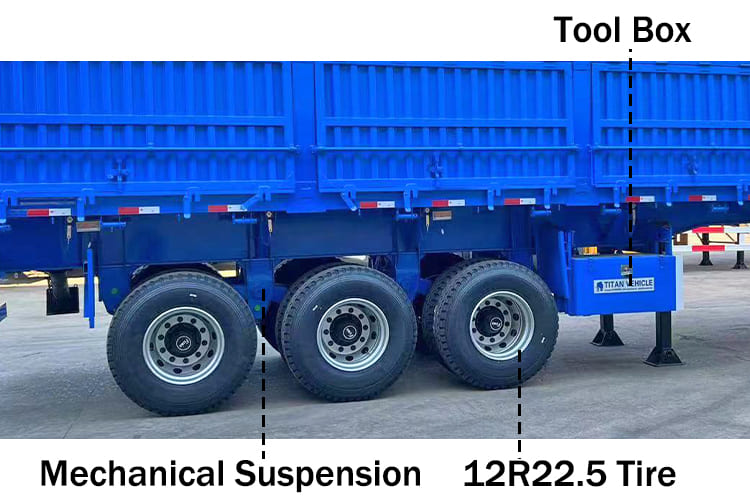

The suspension system of the side dump semi trailer adopts a reinforced mechanical suspension designed to improve stability and load-bearing performance under harsh road conditions. The heavy-duty leaf springs efficiently absorb shock and vibration from uneven terrain, protecting both cargo and trailer structure.

Made from high-strength steel, the suspension is resistant to high temperatures and impact, ensuring long-term reliability even in regions with severely damaged roads, such as Congo. The system also features a 70 mm center balance pin and strengthened front and rear linkage points, enhancing durability and reducing tire impact.

These optimizations allow the suspension to better support transport tasks in Congo while maintaining smooth driving performance. As many customers in Congo often operate under extreme conditions, these suspension enhancements are particularly valuable.

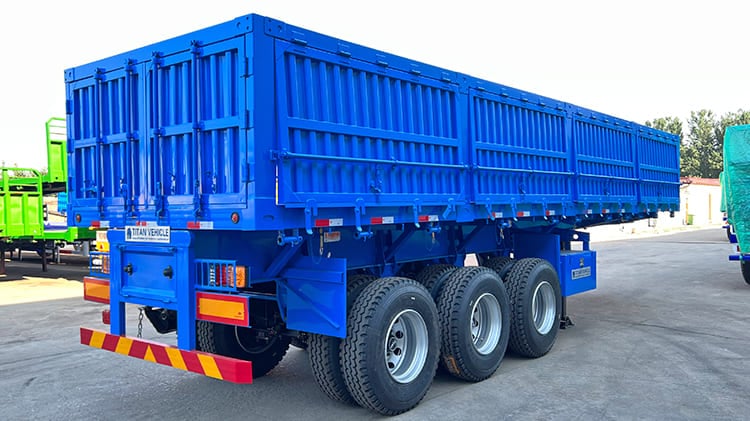

The axle configuration is another key factor influencing the overall side dump trailer capacity. Equipped with three axles, the trailer distributes weight more evenly across the frame and tires, reducing excessive stress on individual points and minimizing the risk of tire failure or structural fatigue.

When working with the suspension system, the axles help absorb road shock and improve braking stability, ensuring safer operation for users transporting heavy bulk materials with side dump trailers for sale.

To increase operational convenience, each side dump semi trailer is fitted with a dedicated toolbox for storing essential tools, equipment, and maintenance items. This design frees up space in the cab and cargo bed, improving the overall practicality of the side dump trailers for sale. The toolbox features a secure lock mechanism to protect stored items, providing users with both safety and easy access during daily operations.

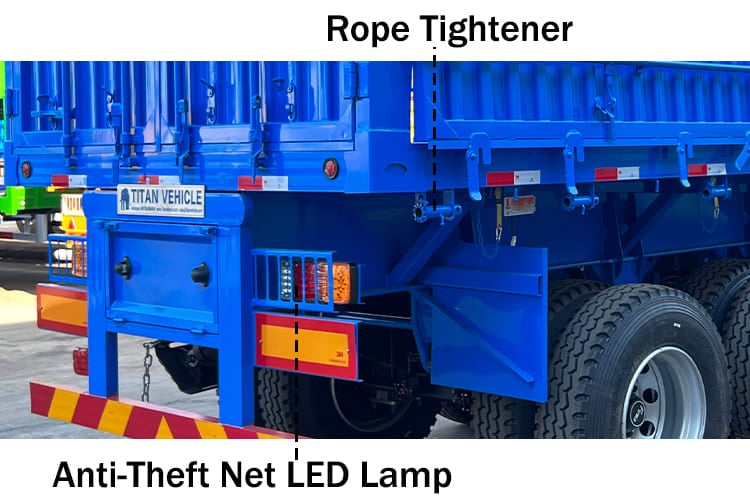

To secure cargo effectively during transport, rope tighteners are mounted along both sides of the side dump semi trailer. Designed with a straightforward mechanism, these devices are easy to operate, allowing quick and efficient fastening of goods, thereby reducing handling time. During sharp turns or sudden braking, the rope tighteners reliably prevent cargo from shifting or falling, significantly enhancing transportation safety and boosting operational efficiency.

Shipping of Side Dump Trailer

Buyers may choose to transport the side dump trailers for sale in containers or via ro-ro vessels. Both methods are designed to ensure the trailer reaches its destination safely.

Before shipment, every unit is coated with a layer of protective wax and then wrapped with a waterproof covering. This dual-layer protection shields the side dump trailers for sale from moisture, corrosion, and rust caused by fluctuations in temperature and humidity during long-distance sea transport.
