10 Axle Extendable Wind Turbine Blade Transport Trailer

Wind Turbine Blade Transport Trailer:

TITAN 10 axle extendable wind turbine blade transport trailer is specially used to transport the wind blades. The important advantages of this trailer is the highly rigid frame and the excellent stability of the extension beams. The high standard of workmanship and welding ensures easy adjustment of the extension beams.

TITAN wind turbine blade transport trailer are perfectly suited for hauling windmill turbine blades from 45m to 80m and other long heavy goods.

The wind turbine blade transport trailer is available in an extended configuration for transporting wind turbine blades up to 80m in length.

All of our wind turbine blade transport trailers use an air suspension system for transporting cargo such as wind blades. Hydraulic suspension systems are more suitable for heavier payload cargo.

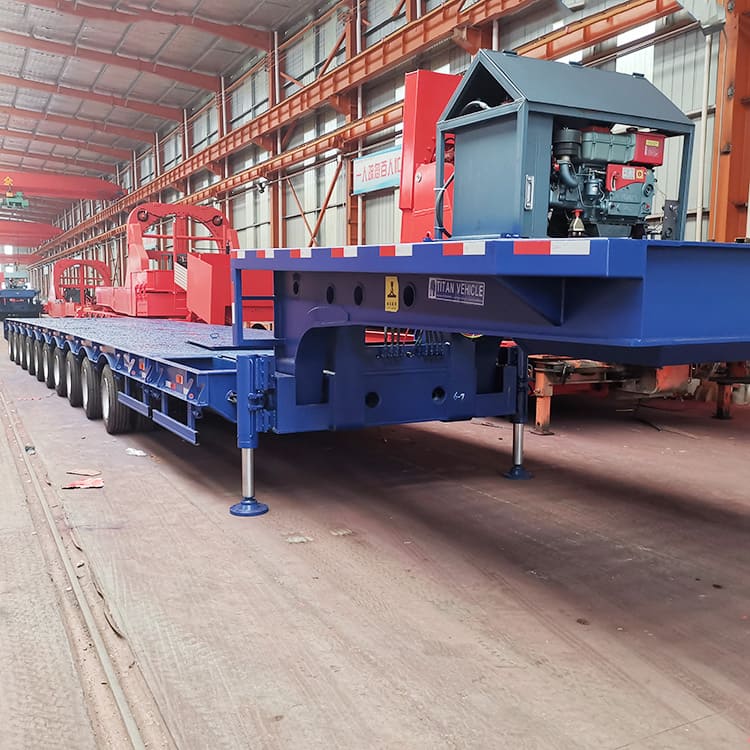

10 Axle Extendable Wind Turbine Blade Transport Trailer for Sale in Vietnam

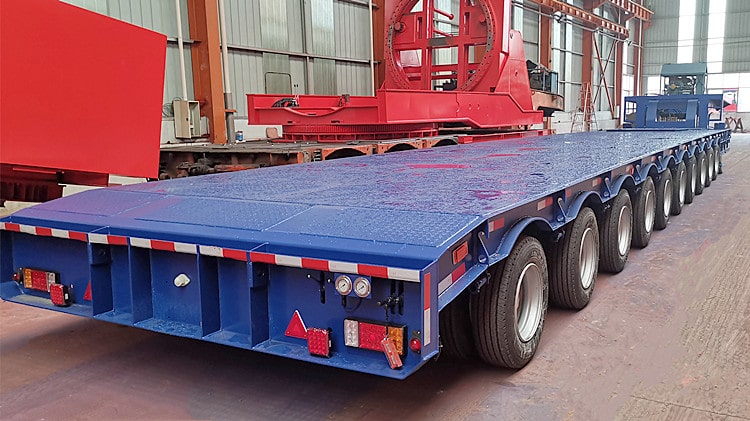

10 Axle Extendable Wind Turbine Blade Transport Trailer for Sale in Vietnam

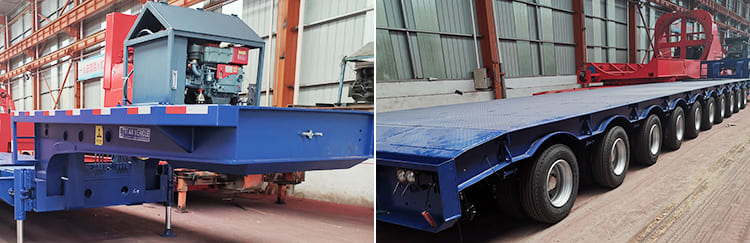

10 Axle Extendable Wind Turbine Blade Transport Trailer for Sale in Vietnam

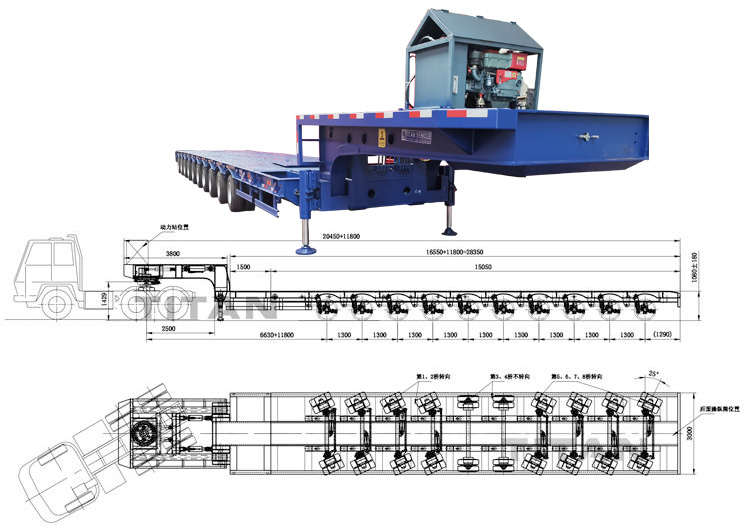

10 Axle Extendable Trailer Specification：

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 10 Axles

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel

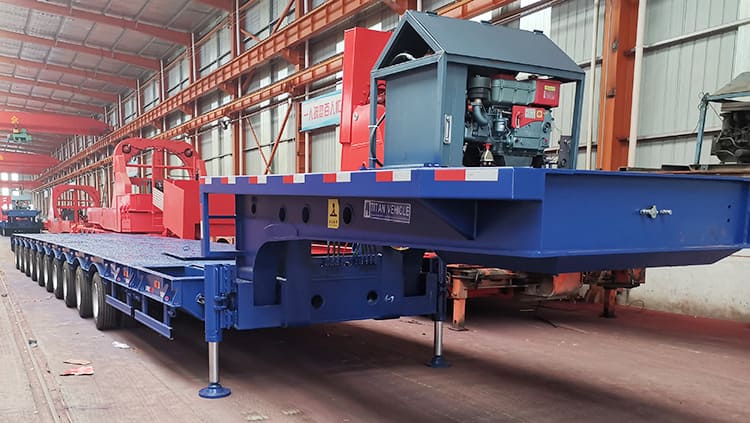

10 Axle Extendable Wind Turbine Blade Transport Trailer for Sale in Vietnam

10 Axle Extendable Trailer Advantages

1. The gooseneck of this trailer is powered by a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle; the active steering axle is controlled by a hydraulic cylinder.

2. The load-bearing platform of this trailer is widened by 250mm on both sides; the longest can be stretched 7500x2, and the length of the load-bearing platform is 14.5m; it meets the requirement of 29m after the cargo platform is stretched

3. The hydraulic suspension with lifting function is applied, and the force between the shafts is balanced by the suspension oil cylinder, which has the function of independent lifting shaft.

Through this video, you can learn more about the 10 axle extendable wind turbine blade transport trailer.

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
