40 ft Flatbed

Flatbed trailer for sale near me in Nigeria:

12.5m tri axle trailer for sale is special trailer for transporting containers. The size of the flatbed trailer for sale near me loading area is determined according to the standard container size, 40ft tri axle flatbed trailer for sale can transport 1×40ft or 2×20ft container.

A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.

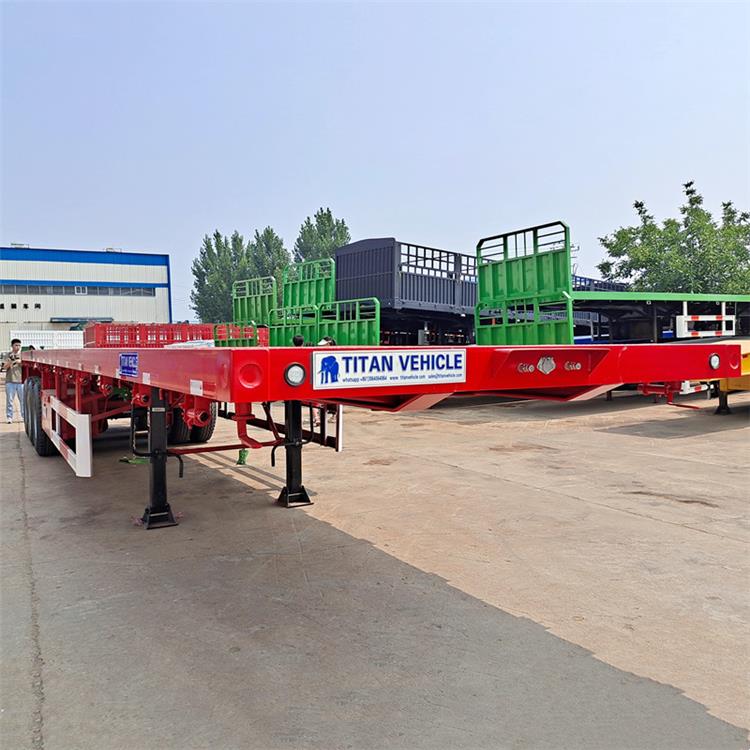

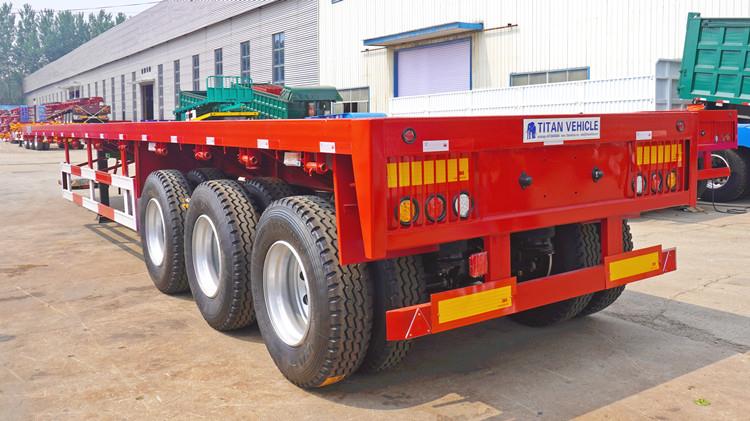

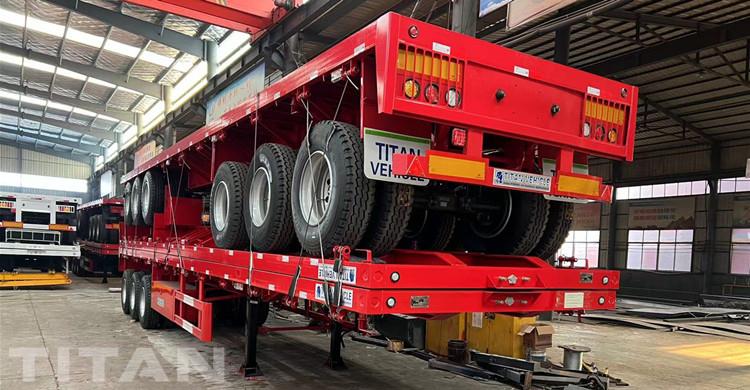

12.5m Tri Axle Flatbed Trailer for Sale Near Me in Nigeria

12.5m Tri Axle Flatbed Trailer for Sale Near Me in Nigeria

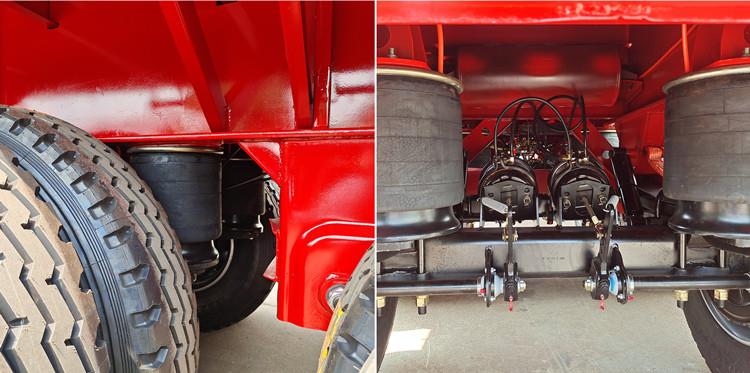

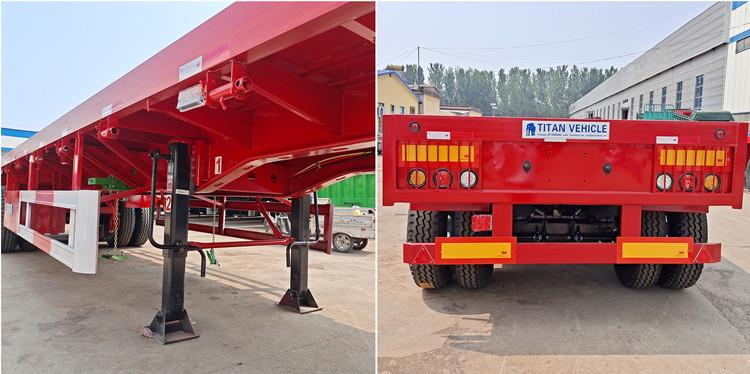

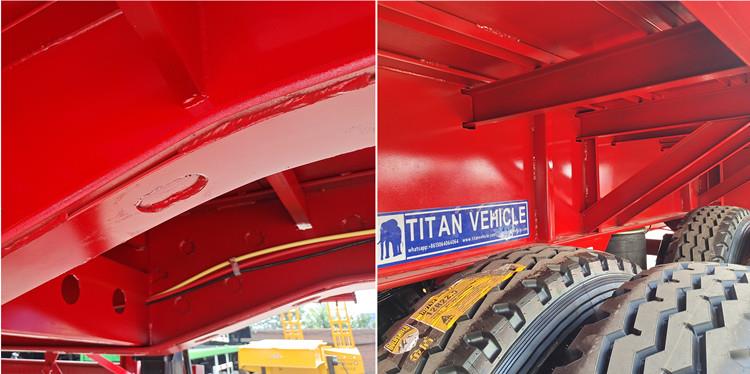

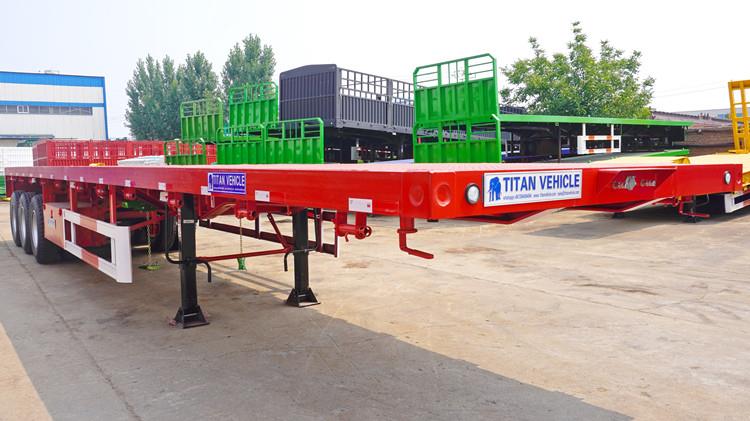

Details of tri axle flatbed trailer for sale

Details of 12.5m Tri Axle Flatbed Trailer for Sale Near Me

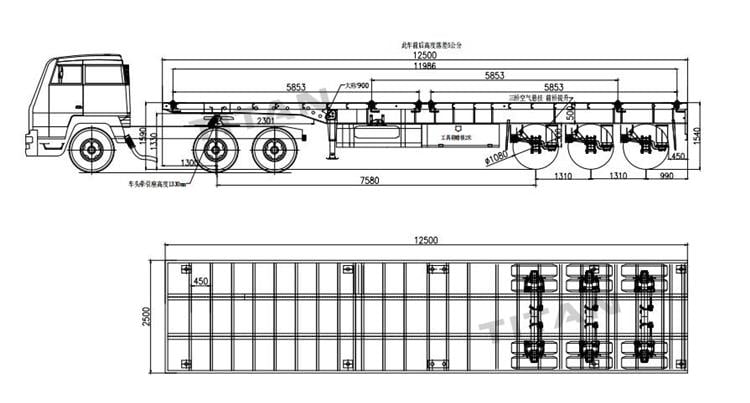

Specification of 12.5m tri axle trailer for sale:

Model: Tri axle flatbed trailer for sale

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension(China brand or BPW brand)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package of tri axle flatbed trailer:

When transporting tri axle flatbed trailers, many customers use container transportation, some customers are bulk carriers or ro-ro ships. We will recommend suitable transportation methods to customers according to different situations.

All tri axle flatbed trailer for sale will undergo rigorous testing before delivery to ensure the quality. We have professional technicians to operate. In addition, a layer of wax will be sprayed on the flatbed trailer for sale near me to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture so that it is foolproof.

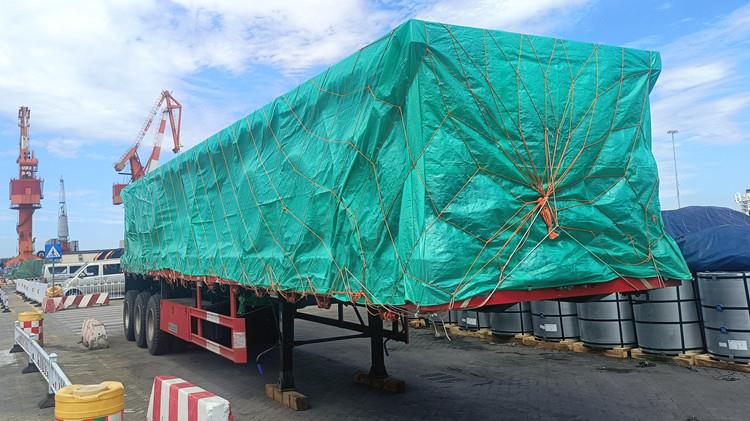

Tri axle flatbed trailer wrapped in rain cloth

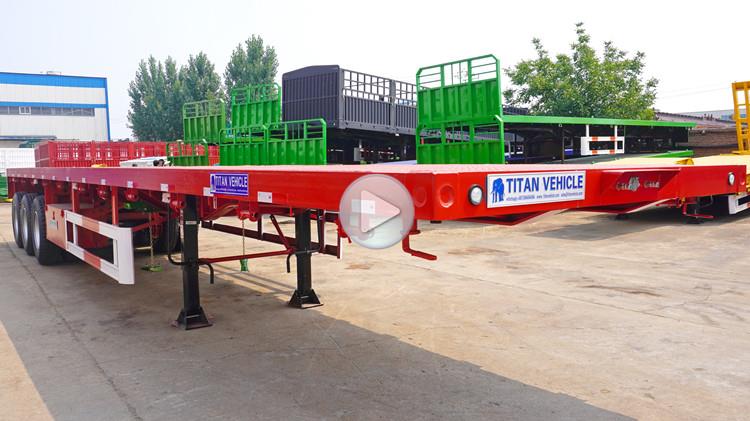

Video of tri axle flatbed trailer:

Please click "TITAN Flatbed Trailer" to get more video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
