The tri axle skeletal trailer for sale is an economically feasible and practical trailer to use. This is an invention that offers a truck chassis for loading and offloading high weight containers without much effort.
The tri axle skeletal trailer for sale is an economically feasible and practical trailer to use. This is an invention that offers a truck chassis for loading and offloading high weight containers without much effort.
Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks that may, all the accessories of tri axle skeletal trailer for sale have been 20 years of experience in the use supplier of choice, long-term repeated use, with sufficient strength.

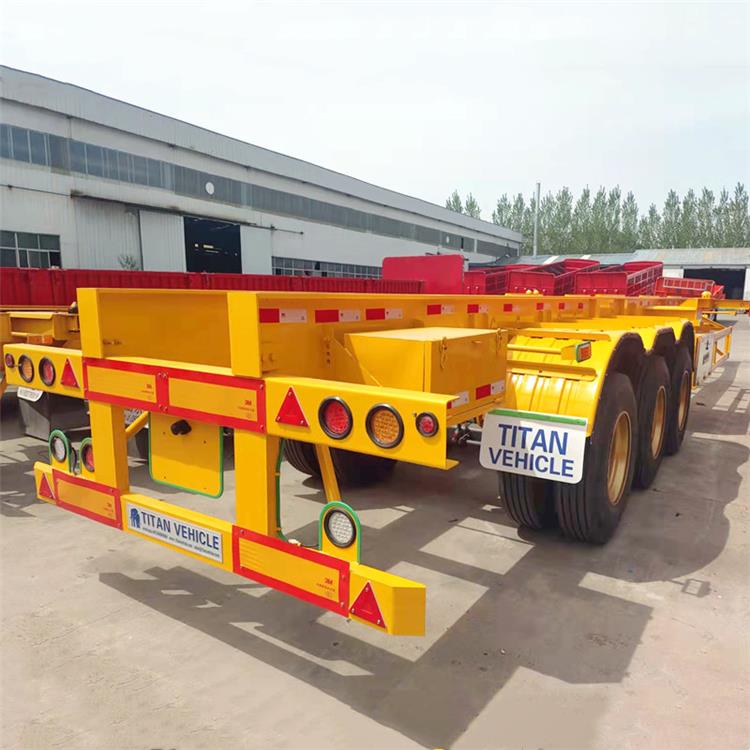

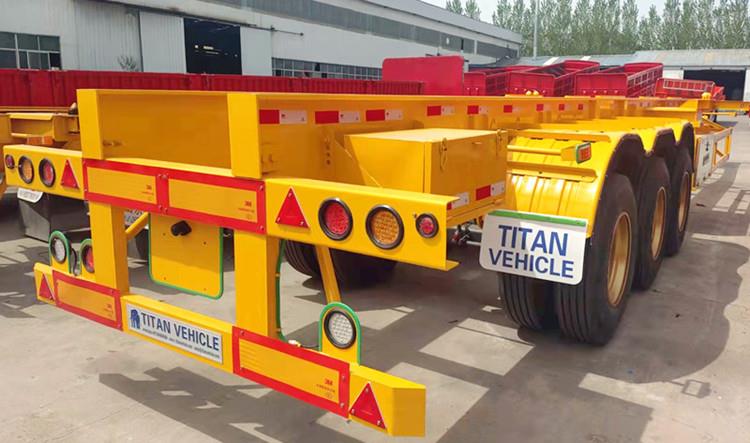

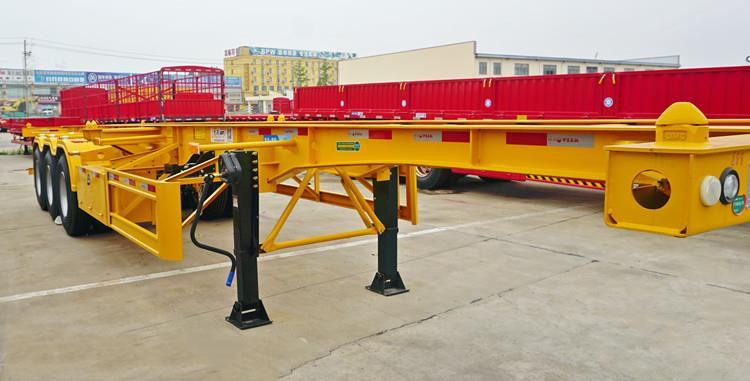

12m Tri Axle Skeletal Container Semi Trailer for Sale
12m Tri Axle Skeletal Container Semi Trailer for Sale

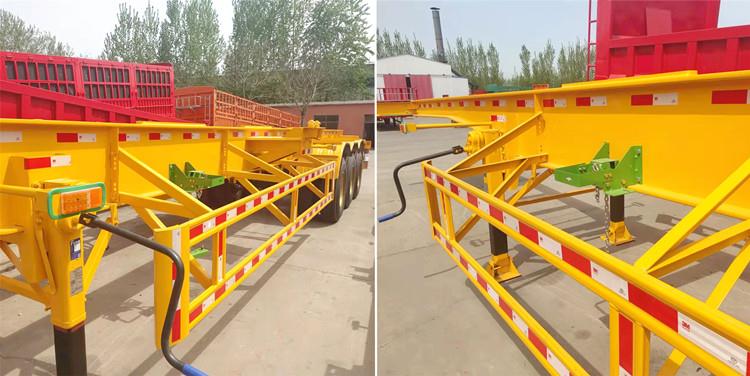

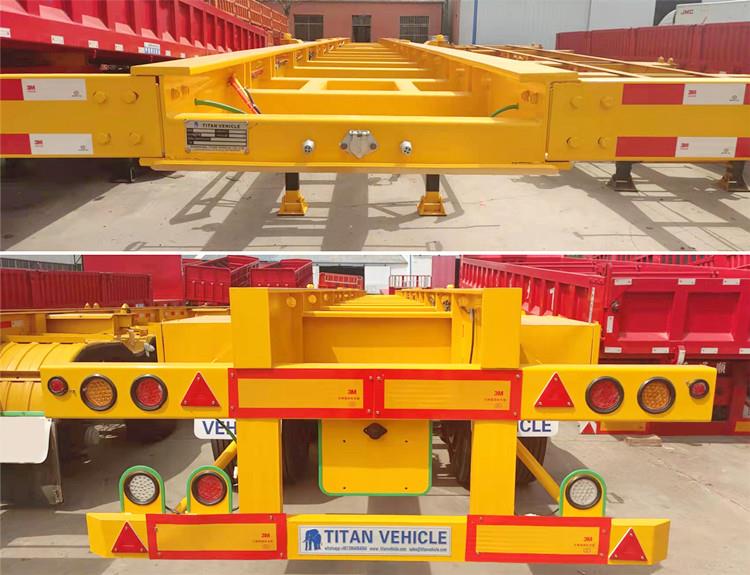

Details of Container Skeletal Trailer
Dimension(mm): 12400x2500x1620mm
Loading capacity(ton): ≤60T
Axles: Tri axle skeletal trailer for sale
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Many customers use the method of container transportation, which has low transportation costs and short transportation time.
Some customers choose bulk carriers or ro-ro ships. Before the TITAN 12m skeletal trailer for sale is shipped, the container skeletal trailer for sale is sprayed with wax and covered with a tarpaulin.
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Container Skeleton Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
