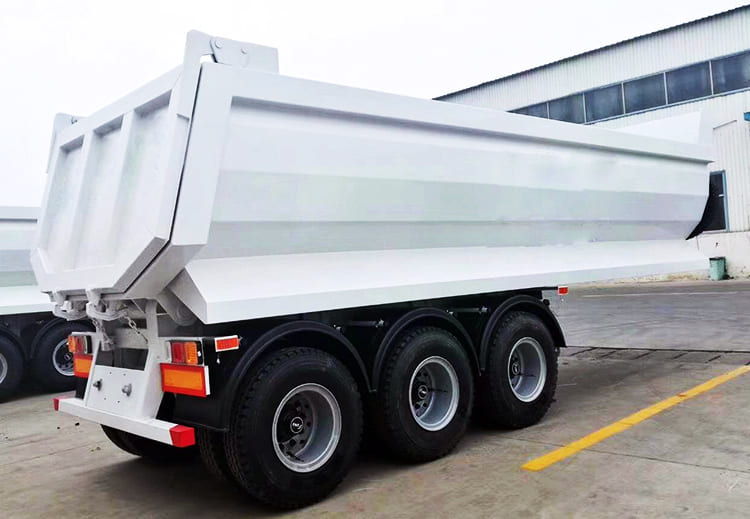

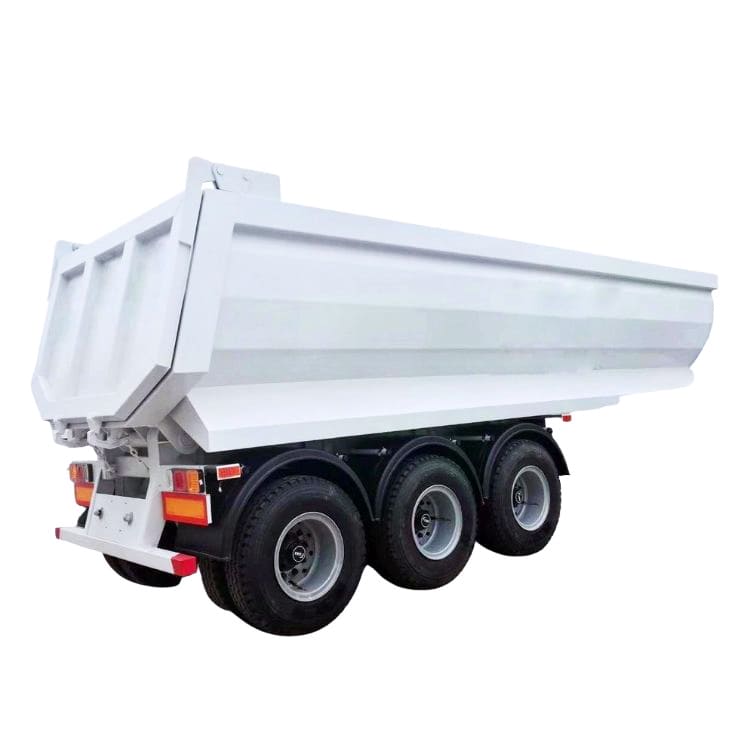

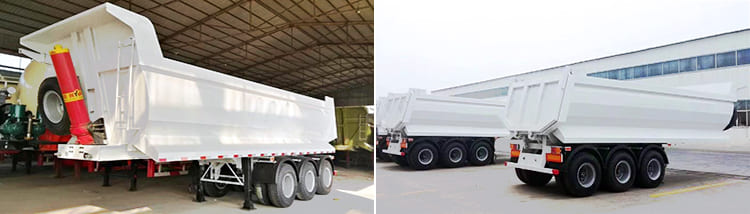

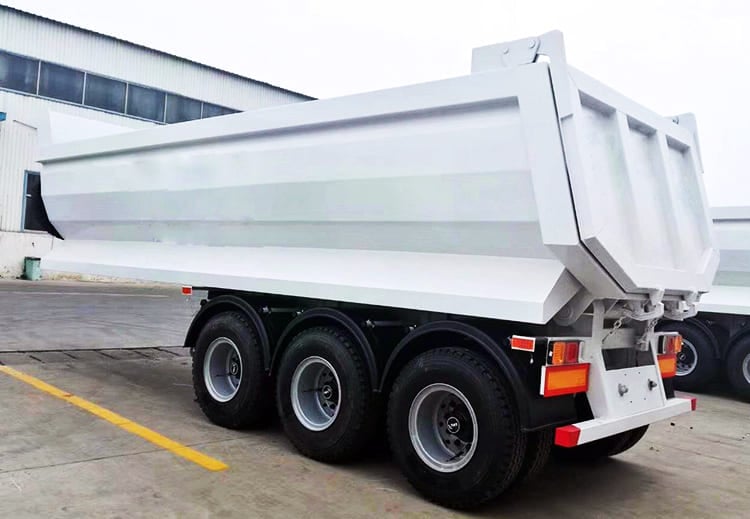

3 Axle 30T Dump Truck Trailer is specially designed double-plate main beam for heavy-duty semi dump trailer,the main beam is designed with double plates, which have stronger carrying capacity and not easy to damage.
3 Axle 30T Dump Truck Trailer is eqquiped with the heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
The 3 Axle 30T Dump Truck Trailer can very quickly adjust for the complicated road conditions, we reinforced the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.
Dimension: 9300mmx2500mm x3700mm (inside dimension)
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30 ton
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi dump trailers, as well as the process, testing, packaging and customer feedback, etc.
