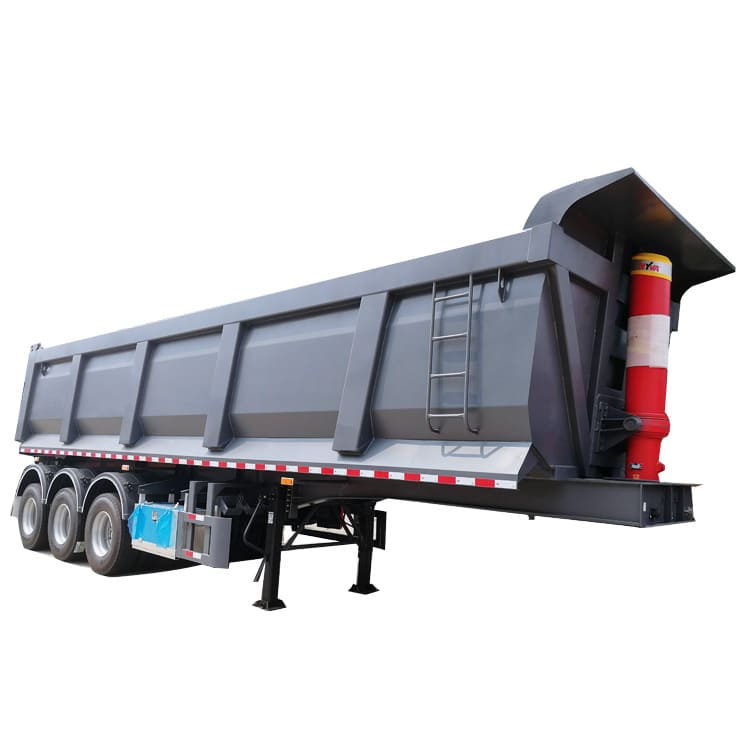

3 Axle 35 Cubic U Shape Dumper Trailer

Product description:

3 Axle 35 Cubic U Shape Dumper Trailer adopts scientific design, reasonable load distribution, effectively reduce the dead weight of the product under the same load. The frame design is reasonable, the craftsmanship is good.

3 Axle 35 Cubic U Shape Dumper Trailer also adopts HG60 high-strength steel, high hardness of steel, can effectively prevent collision and avoid deformation of the cargo box.

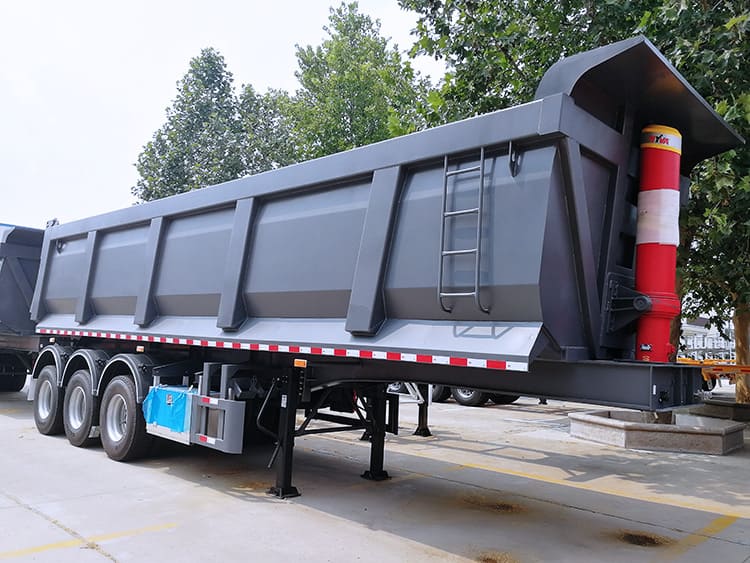

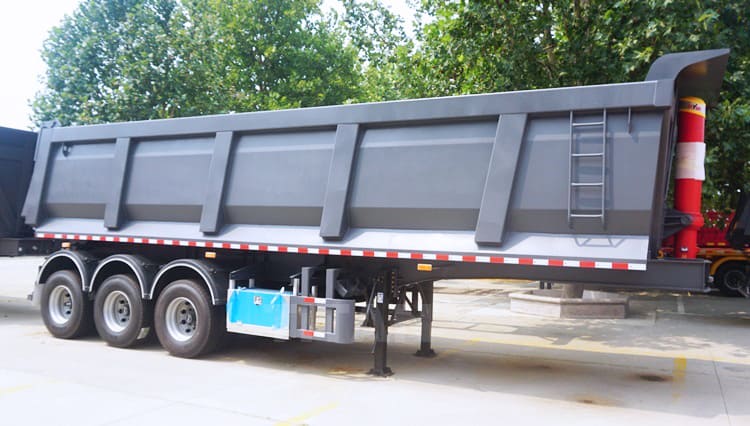

3 Axle 35 Cubic U Shape Dumper Trailer for Sale

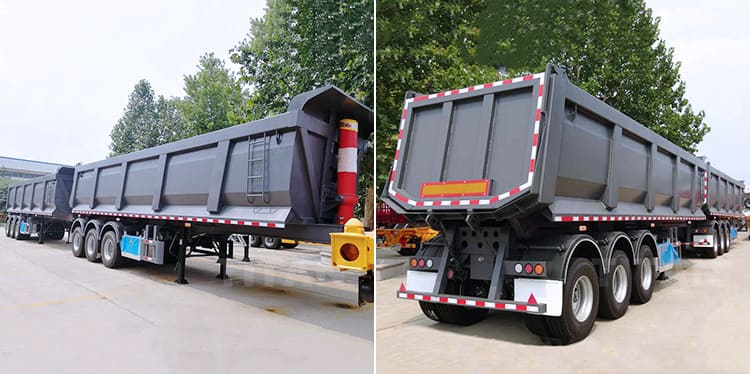

3 Axle 35 Cubic U Shape Dumper Trailer for Sale

Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 35Cubic

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
