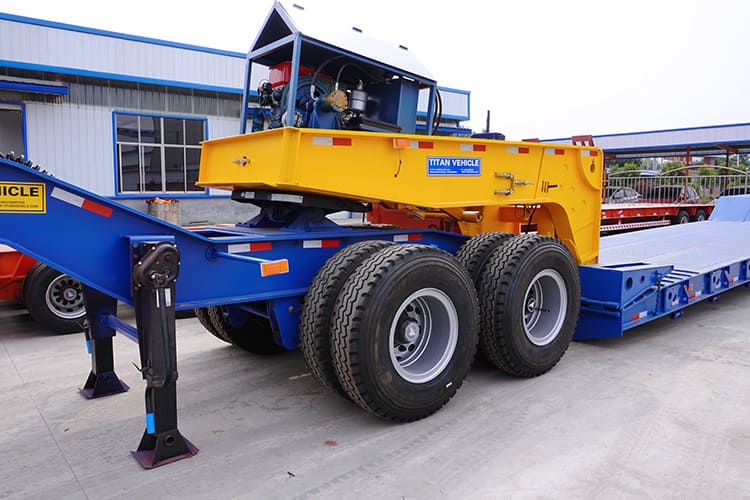

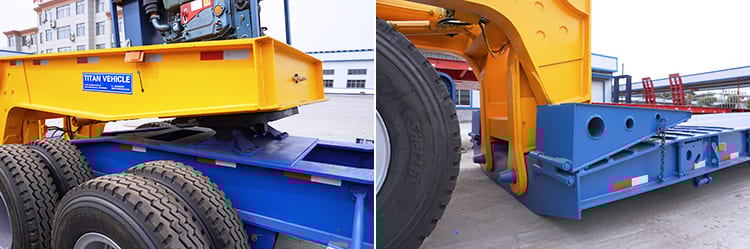

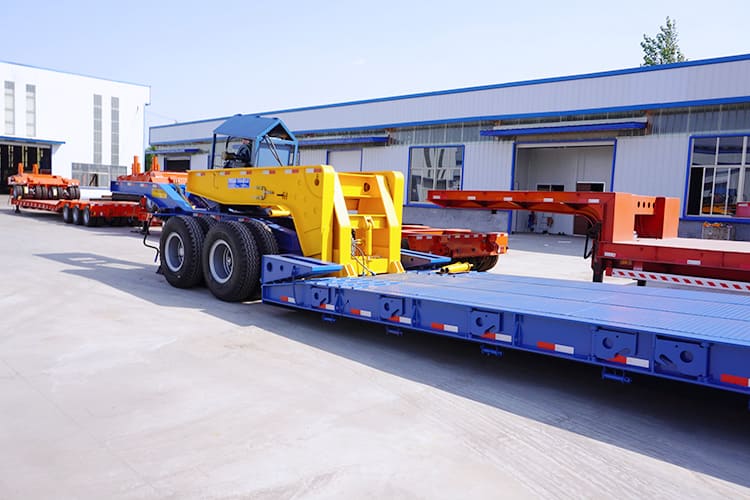

4 Axles 100T Detachable Gooseneck Lowboy Trailer with Dolly

Product description:

4 axles 100t detachable gooseneck lowboy trailer with dolly has a lower working platform height for transporting bulky goods. TITAN adopts high-strength structural steel with high tensile strength and durability.

TITAN optional Jost landing gear which is a world recognized famous brand accessory with a better bearing capacity and long service life.

 4 Axles 100T Detachable Gooseneck Lowboy Trailer with Dolly for Sale

4 Axles 100T Detachable Gooseneck Lowboy Trailer with Dolly for Sale

Specification:

Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:  100 ton

Axles：4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
