Tri Axle 60T Hydraulic Tipper Truck Trailer

Product description:

The whole Tri Axle 60T Hydraulic Tipper Truck Trailer is made of high-quality steel, advanced technology and strict production process. The whole vehicle has reasonable structure, reliable performance, simple operation and beautiful appearance.

Tri Axle 60T Hydraulic Tipper Truck Trailer adopts double-plate main beam, the main beam is designed with double plates, which have stronger carrying capacity; it is not easy to damage.

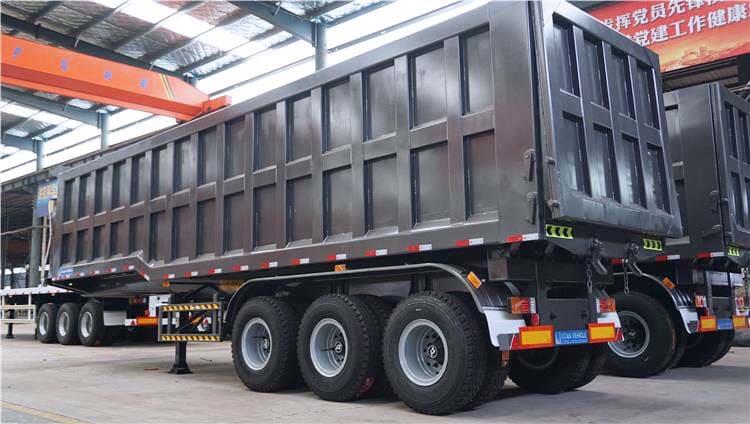

Tri Axle 60T Hydraulic Tipper Truck Trailer for Sale

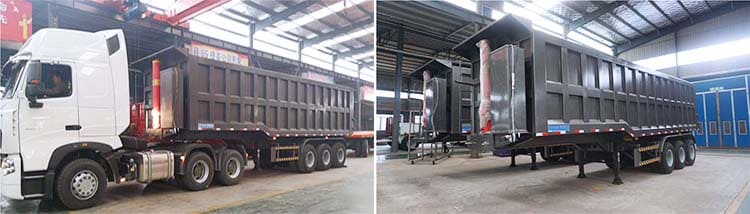

Tri Axle 60T Hydraulic Tipper Truck Trailer for Sale

Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 60Ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
