Different Parameters, Different Price. Price Reference Only.
Tri Axle 80T Low Loader Semi Trailer's low level of the column of the car rack ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel, etc.
We use the reinforced suspension on our tri axle 80t low loader semi trailer, 70mm center balance pin.Titan low bed trailer's suspension front and rear, left and right are reinforced. We use a 16mm thick plate spring for thickening. After loading the excavator, the deformation will be slight.
The whole tri axle 80t low loader semi trailer is equipped with LED lamps and will be shipped with a set of taillights and side lights.
Tri Axle 80T Low Loader Semi Trailer for Sale
Tri Axle 80T Low Loader Semi Trailer for Sale

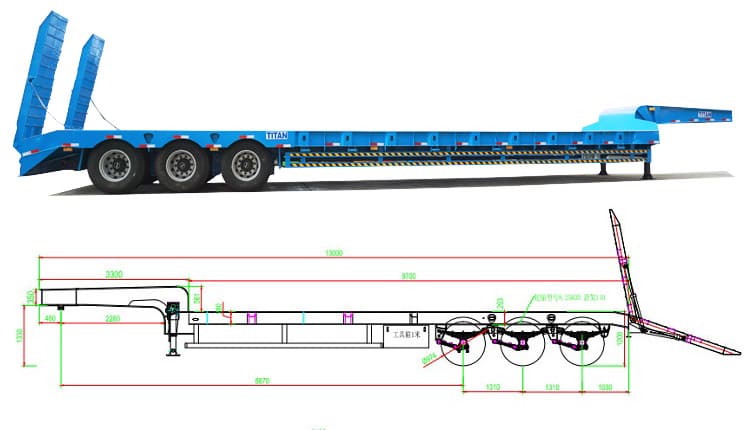

Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 80T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
Lowbed trailer in production
