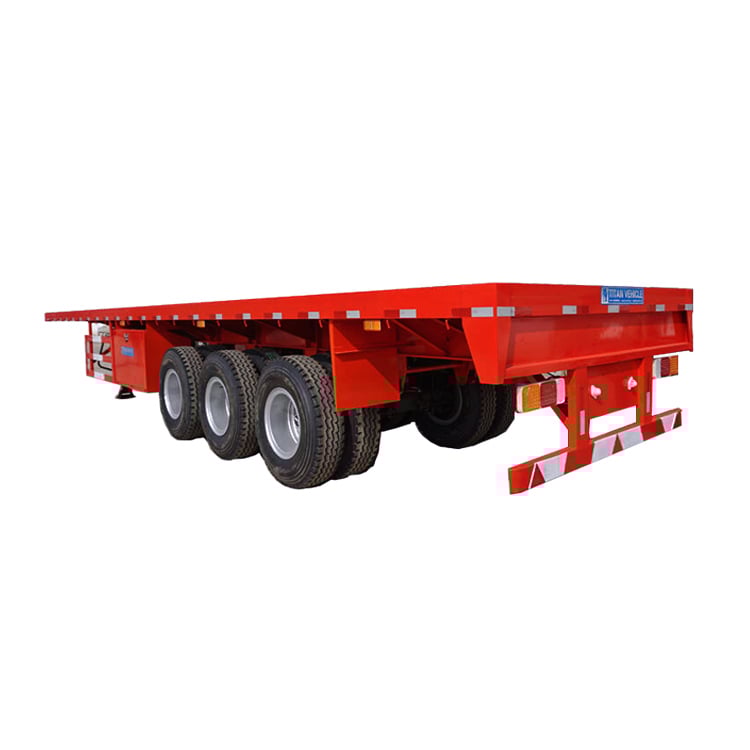

Tri Axle 40Ft Flatbed Truck Trailer

Product Description：

Tri Axle 40Ft Flatbed Truck Trailer is eqquiped with a 16-ton brake axle; TITAN vehicle axles has 9 years of experience in production, better loading capacity and good braking effect. TITAN also has been working with the company on tires for more than 12 years. The quality is very stable .In China, it can use 200,000 kilometers for two years without any problem.

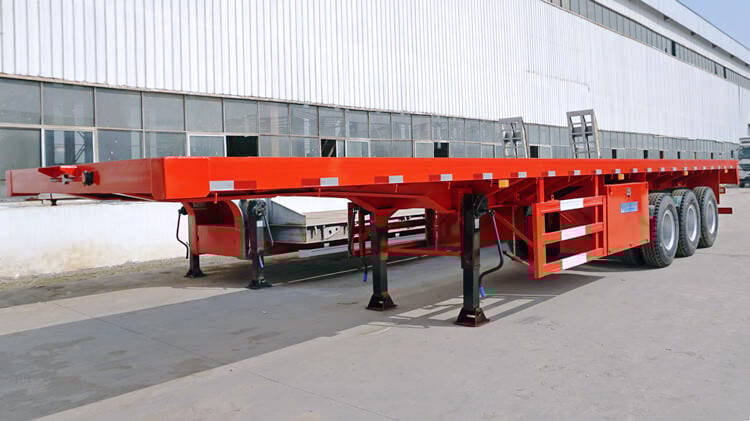

Tri Axle 40Ft Flatbed Truck Trailer for Sale

Tri Axle 40Ft Flatbed Truck Trailer for Sale

Specification：

Model: Tri axle flatbed semi trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantage:

1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
