Different Parameters, Different Price. Price Reference Only.

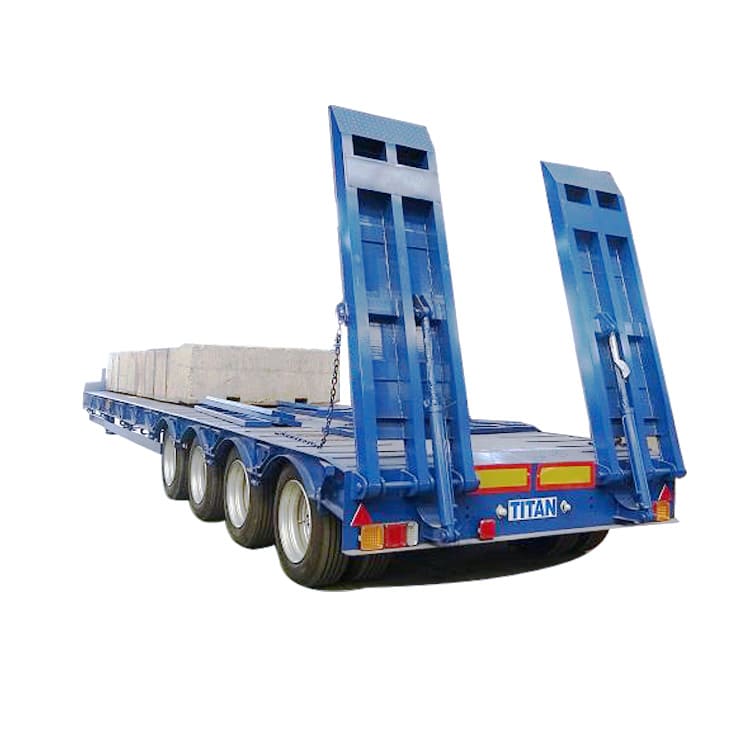

4 Axles 100 Tons Lowbed Truck Trailer are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery and other heavy loads.
4 axles 100 tons lowbed truck trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years.
We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
