3 Axles 40 Foot Trucks Flatbed Trailer is a semi-trailer designed to transport bulk cargo and containers between transport facilities and terminals, usually used to transport 20ft or 40ft containers.
3 Axles 40 Foot Trucks Flatbed Trailer mainly used to support ships, ports, waterways, highways, transit Container transport for stations, bridges, tunnels and intermodal transport.We have different types of container flatbed semi-trailers, such as 2-axle, 3-axle, 4-axle, etc.,and the color could be painted as your request.

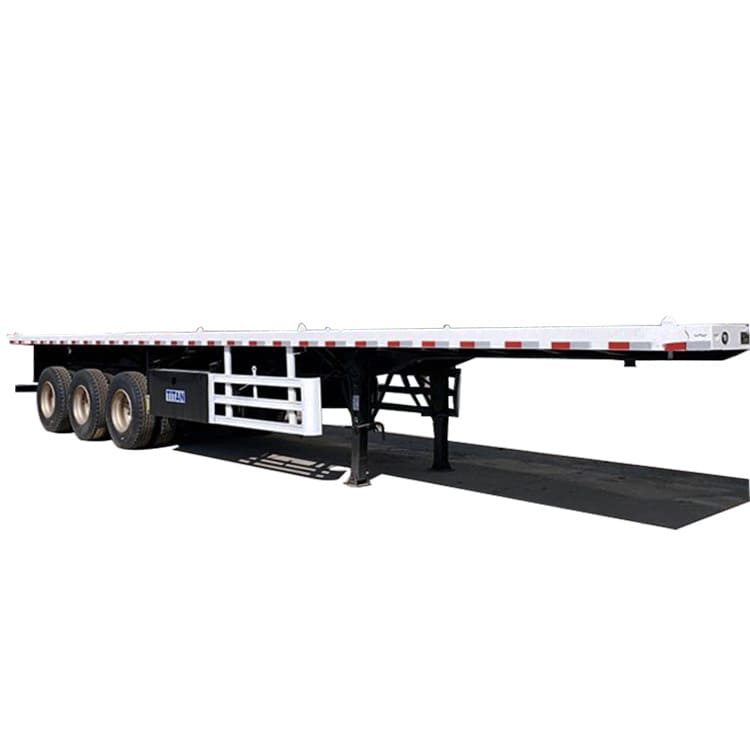

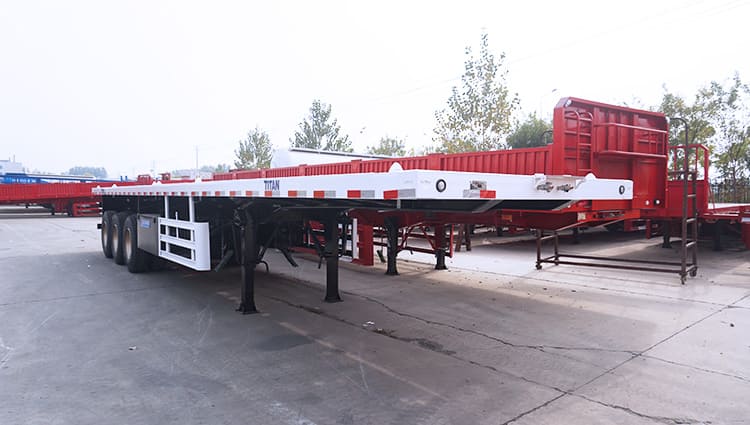

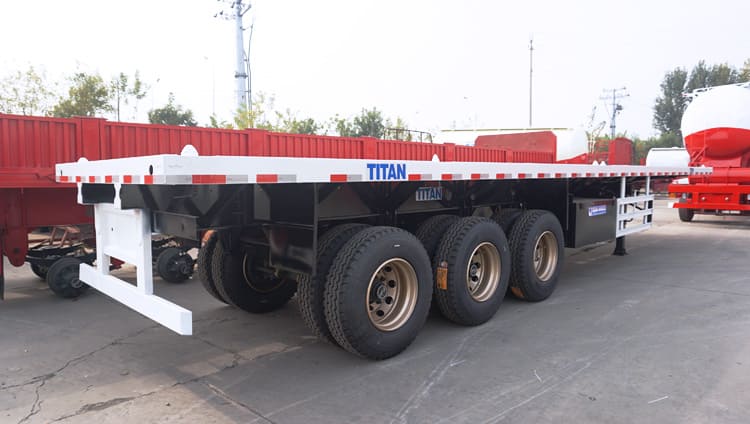

3 Axles 40 Foot Trucks Flatbed Trailer for Sale
3 Axles 40 Foot Trucks Flatbed Trailer for Sale
Model: Tri axle flatbed semi trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.
3. Durable mechanical widened spring suspension, make sure the stable and safety.
4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
