3 Axle 60 Ton Low Bed Trailer

Product Description：

TITAN 3 axle 60 Ton low bed Transport Trailer use HG60 high strength steel material to ensure the capacity, the load can be up to 60 to 80 tons payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles.The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.These’ll ensure the long service life of the 60 Ton Low Bed Transport trailers.

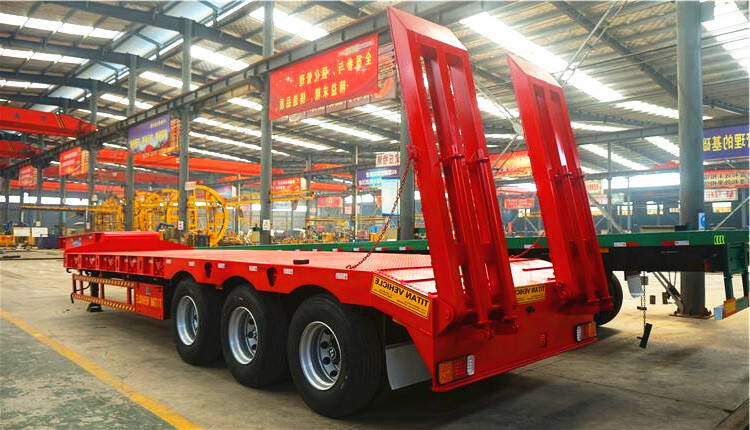

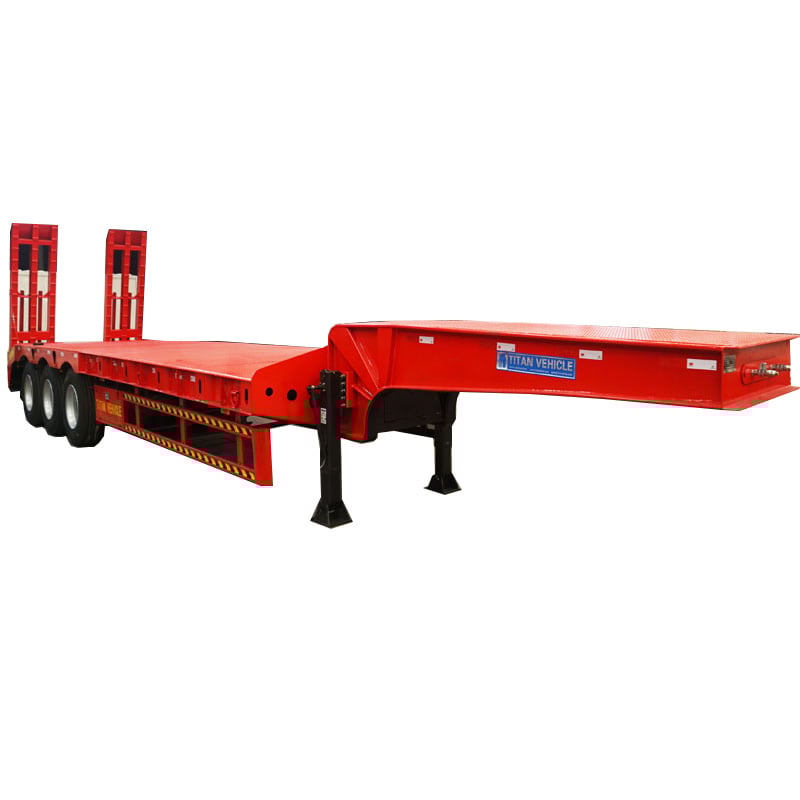

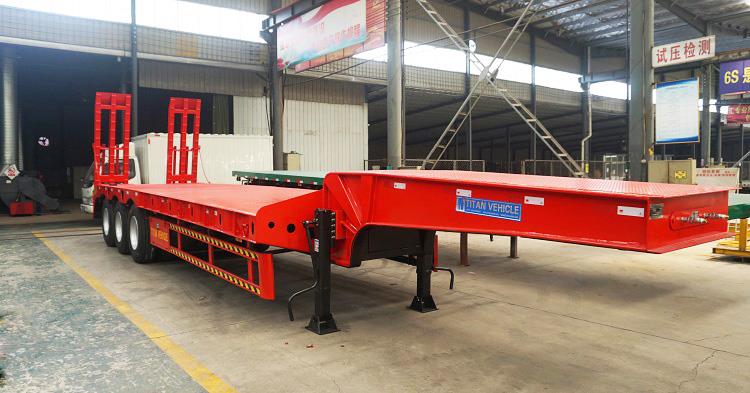

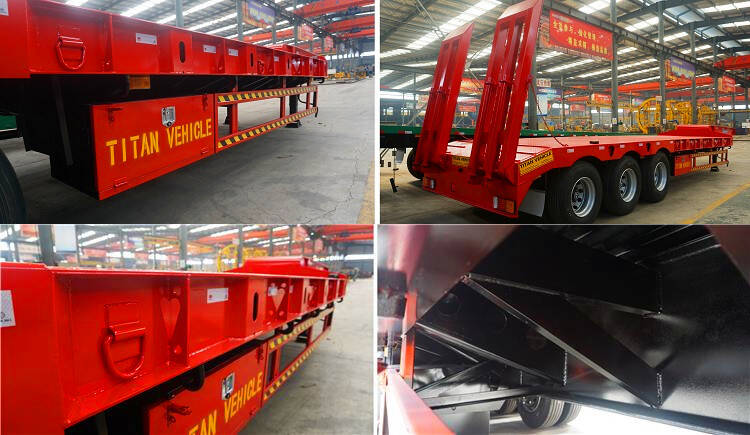

3 Axle 60 Ton Low Bed Transport Trailer Manufacturers Price

3 Axle 60 Ton Low Bed Transport Trailer Manufacturers Price

3 Axle 60 Ton Low Bed Transport Trailer Manufacturers Price

Specification：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 60 Ton

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand landing gear

Main beam: Height: 550mm, Upper plate: 20mm, Middle plate: 14mm, Lower plate: 20mm, Material: HG60 steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” shape design, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
