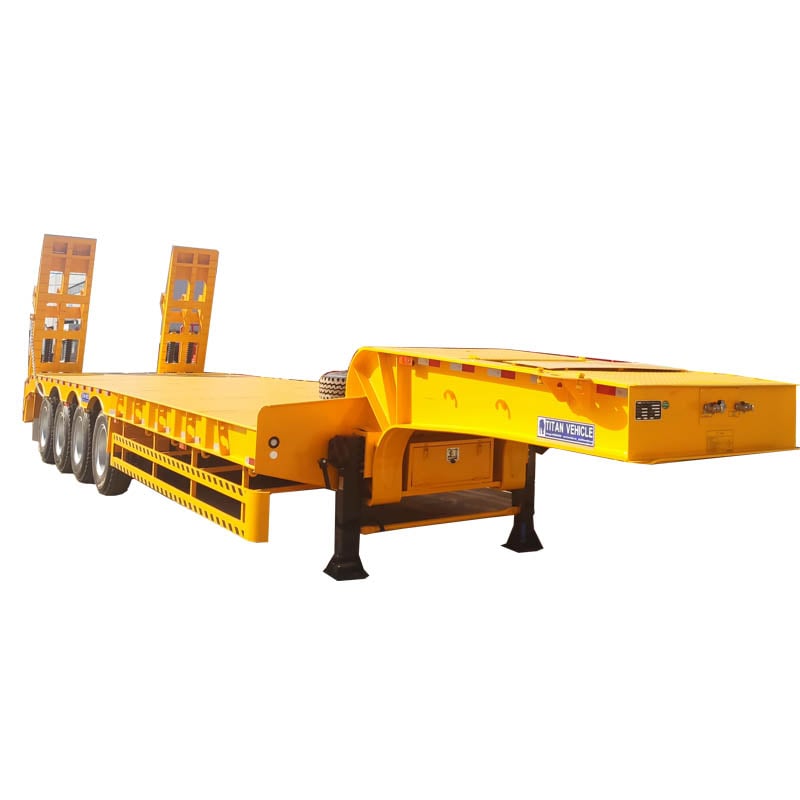

4 Axle 40Ft Low Bed Truck Trailer

Product description:

4 Axle 40Ft Low Bed Trailer is widely used, mainly for medium and long-distance freight transportation.

Its frame is a beam-through structure, and the longitudinal beam adopts a straight and live gooseneck type.

There are many tonnages of 4 Axle Low Bed Trailer we can provide, such as 80,100,120,150 ton slow bed trailer for sale near me.

We can also provide customized services according to the actual situation of transportation.

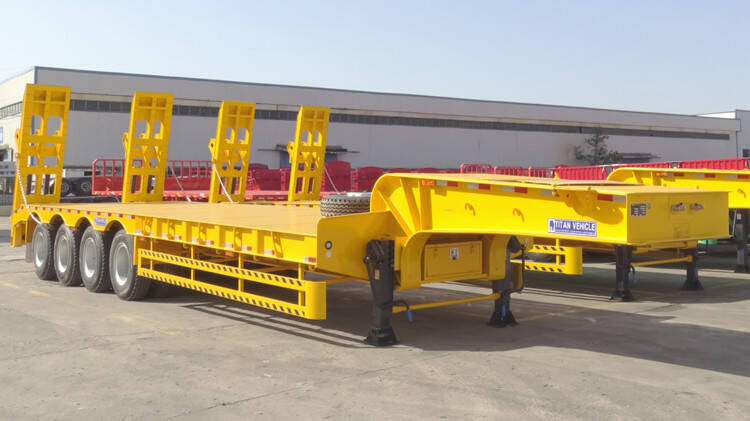

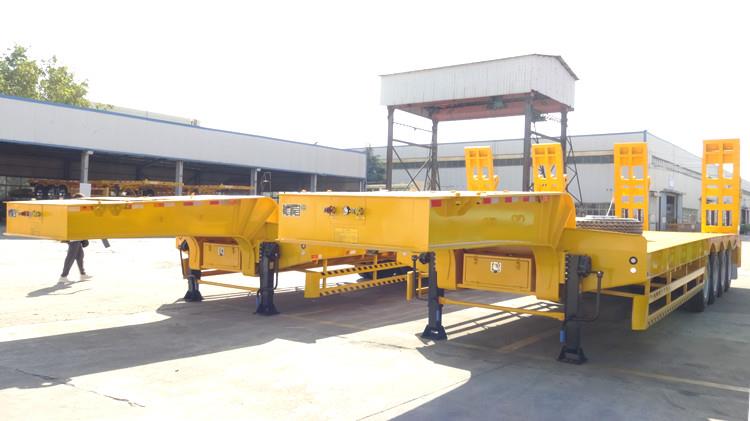

4 Axle 40Ft Low Bed Loader Truck Trailer in Uganda Near Me

4 Axle 40Ft Low Bed Loader Truck Trailer in Uganda Near Me

4 Axle 40Ft Low Bed Loader Truck Trailer in Uganda Near Me

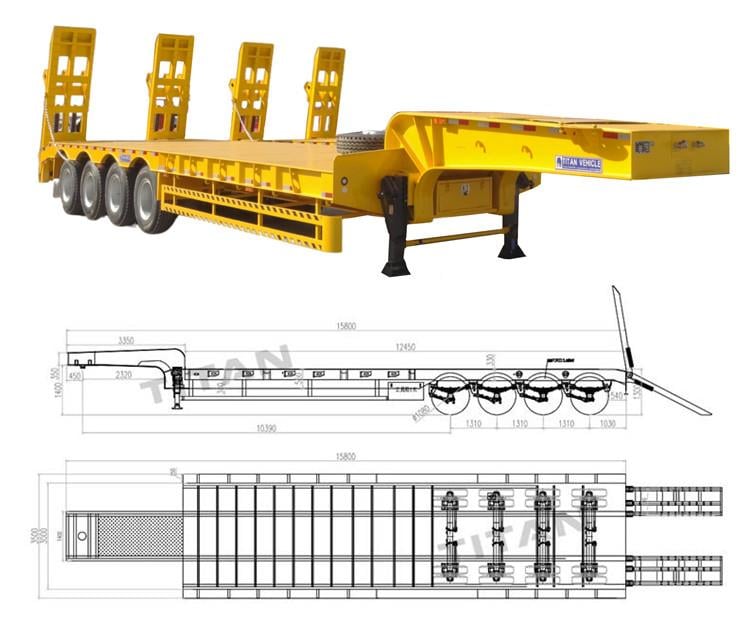

Specification：

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 80-120T

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

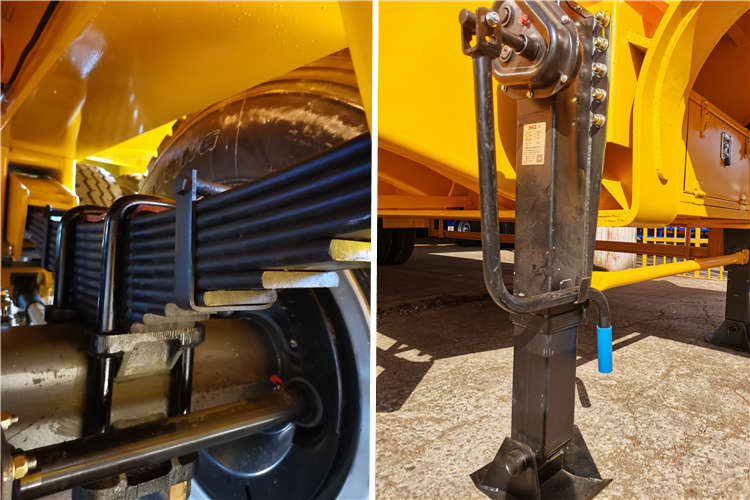

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

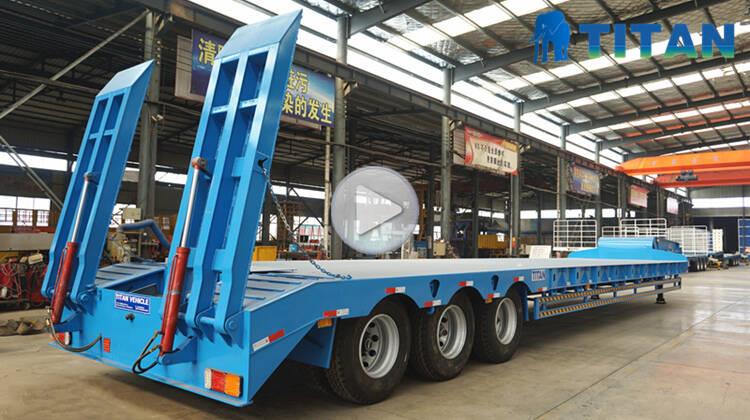

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
