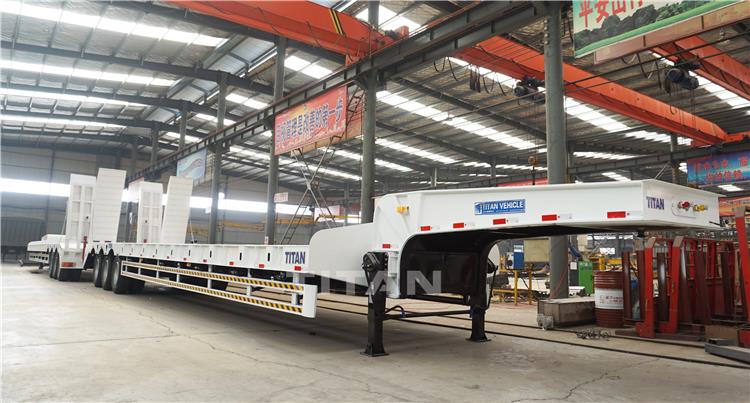

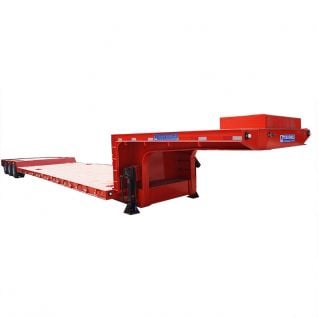

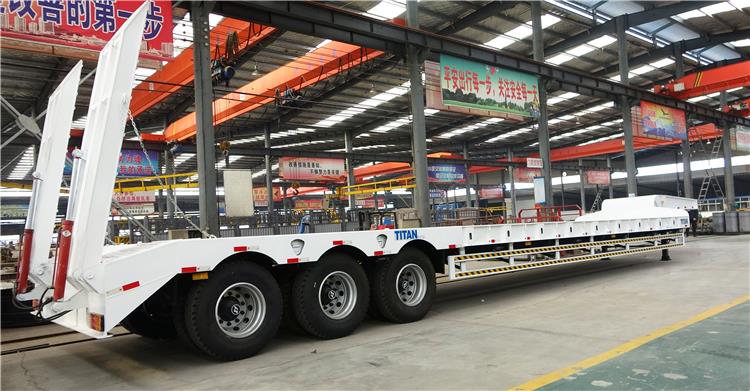

3 Axle 80T Low Bed Semi Trailer

Product description:

TITAN 3 Axle 80T Low Bed Semi Trailers are widely used in heavy machines transportation.

TITAN 80 Ton low bed trailer for sale can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. We use it to make sure that our TITAN Excavator Low Bed  Trailers have a long service life and avoid unnecessary maintenance.

We can customize the 3 Axle Low Bed for Sale according to your needs.

3 Axle 80T Low Bed Semi Trailer for Sale in Nigeria Lagos

3 Axle 80T Low Bed Semi Trailer for Sale in Nigeria Lagos

Specification：

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand landing gear

Main beam: Height: 550mm, Upper plate: 20mm, Middle plate: 14mm, Lower plate: 20mm, Material: HG60 steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Brake System: WABCO brake system

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” shape design, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, the deformation will not happen when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare parts, ensure high quality and save costs.

3 axle 80T low bed semi trailer details display video

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
