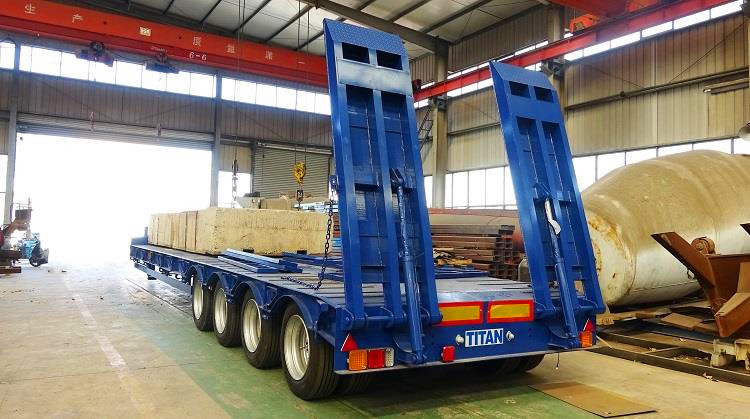

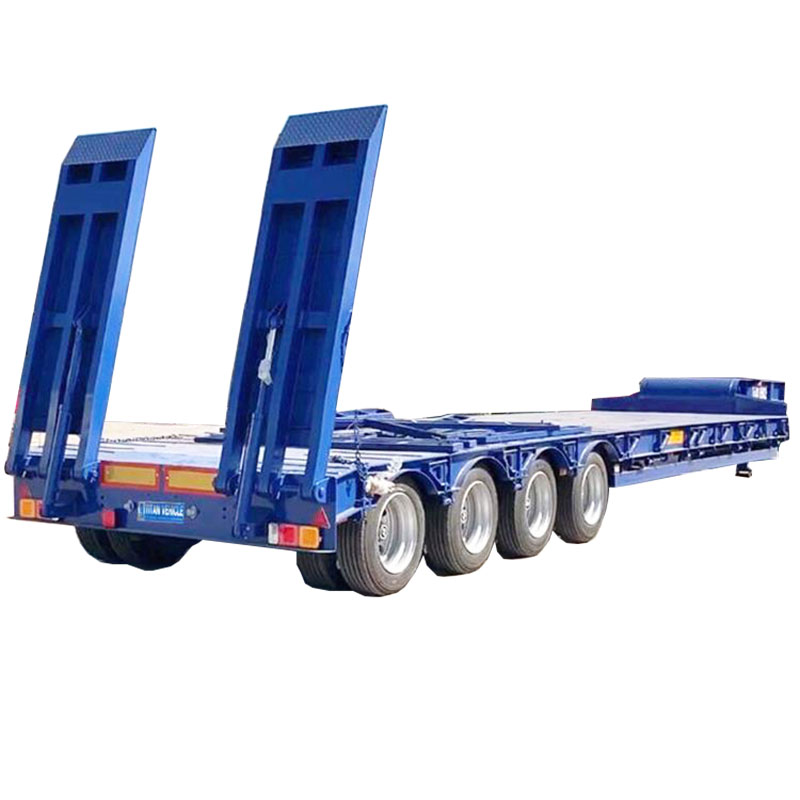

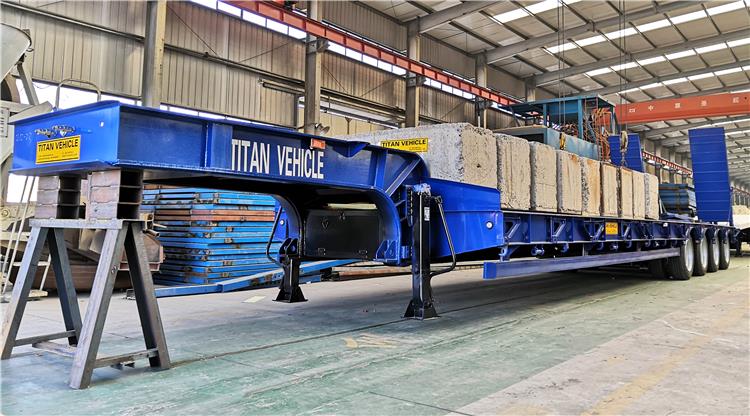

4 Axle 100 Ton Lowbed Trailer

Product description:

TITAN provides 4 axle 100 ton lowbed trailer for sale adopts HG60 high strength steel material to ensure the capacity, the load can be up to 80 to 100 tons payload.

The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4 Axle 100 Ton Heavy Load Lowbed Trailer for Sale Price

4 Axle 100 Ton Heavy Load Lowbed Trailer for Sale Price

Specification：

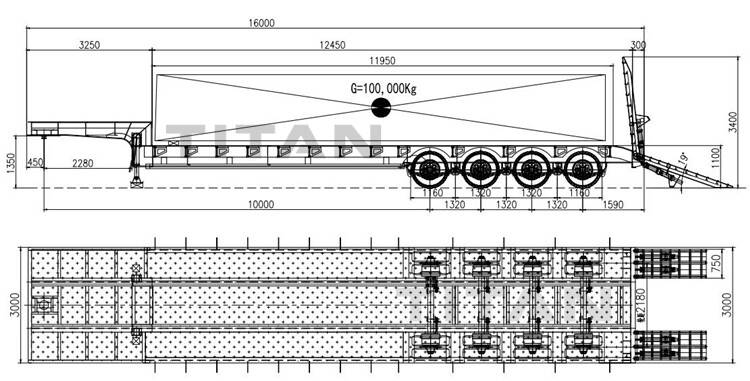

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 100Ton

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand landing gear

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” shape design, the durable design avoid the side beam having the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

4 Axle 100 Ton Lowbed Semi Trailer details display video

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
