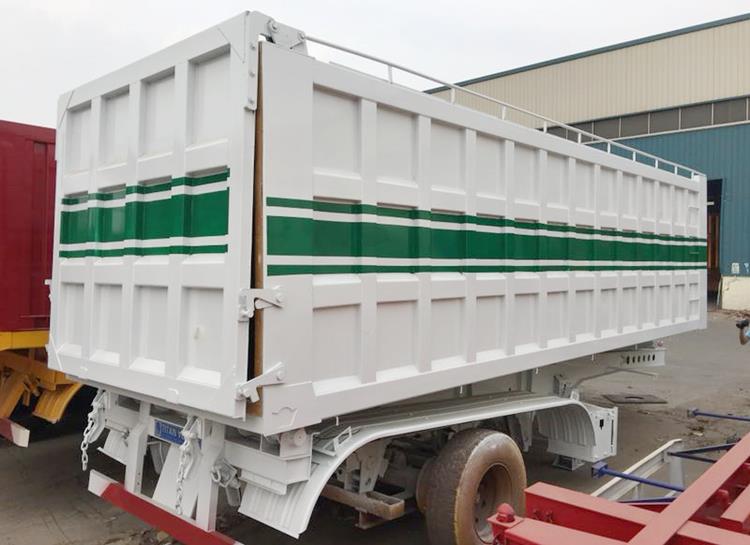

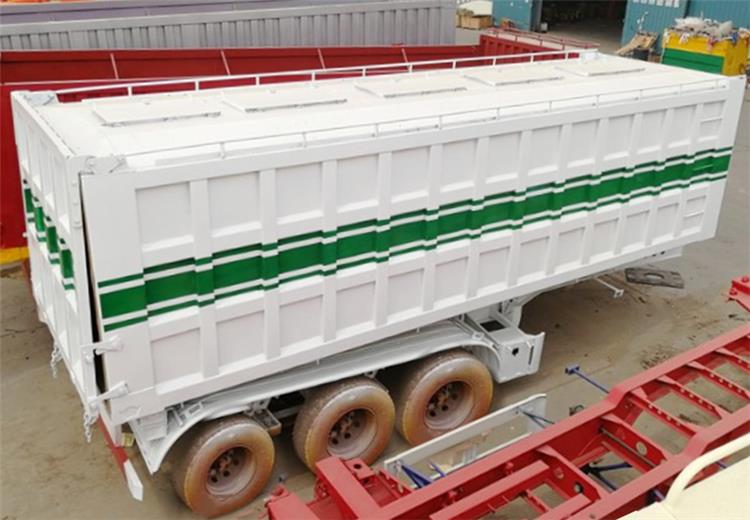

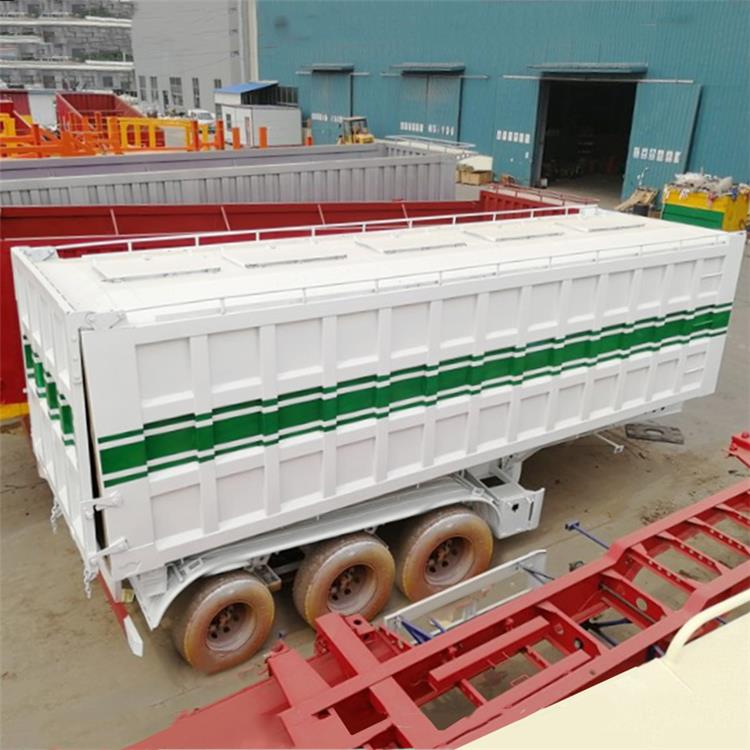

3 Axle 60 Ton Tipper Trailer
3 Axle 60 Ton Tipper Trailer

3 Axle 60 Ton Tipper Trailer

13500 USD

Different Parameters, Different Price. Price Reference Only.



TITAN different types of 3 axle 60 ton tipper trailer to meet your different needs, like 3 axle dump semi trailer, 35ton dump tipper trailer,  80 ton tipper trailer, 100 ton tipper trailer, hydraulic tipper trailers.

SKU: 3 Axle 60 Ton Tipper Trailer
MPN: TITAN9407100
Brand: TITAN

Product Description:

TITAN different types of 3 axle 60 ton tipper trailer to meet your different needs, like 3 axle dump semi trailer, 35ton dump tipper trailer,  80 ton tipper trailer, 100 ton tipper trailer, hydraulic tipper trailers.

In civil engineering, often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The dump trailer carriage adopts rear-dump and side-dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.

TITAN has different types of semi dump trailers: end dump trailer, side tipper trailer, skeleton dump trailer, and flatbed type tipping trailer. semi tipper trailers can be customized with different tonnage according to the different needs.

TITAN tipper trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the tipper trailer.

3 Axle 60 Ton Tipper Trailer for Sale with Best Price In Nigeria

3 Axle 60 Ton Tipper Trailer for Sale with Best Price In Nigeria

Tipper Truck Trailer for Sale Near Me

Tipper Truck Trailer for Sale Near Me

Tri Axle 60T Tipper Dump Trailer Manufacturer

Tri Axle 60T Tipper Dump Trailer Manufacturer

Details of 3 Axle 60 Ton Tipper Trailer Price

Details of 3 Axle 60 Ton Tipper Trailer Price



Advantage:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.



Specification:

Dimension: 9000mmx2500mmx4000mm ( inside dimension )

Tare Weight: About 15600kg

Total volume(m³): 30m³ or less than 100tons

Sidewall thickness: 4 - 6mm

Endplate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.

Bottom Platform: 4-6mm thick checkered plate

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for overseas markets)

Voltage: 24V

Toolbox: 1 set

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.

Shipping terms: Transported by the bulk carrier in a RORO



Other Stock Semi Trailer



Spot Fuel Tanker Trailer Get a Free Tire and Faircloth

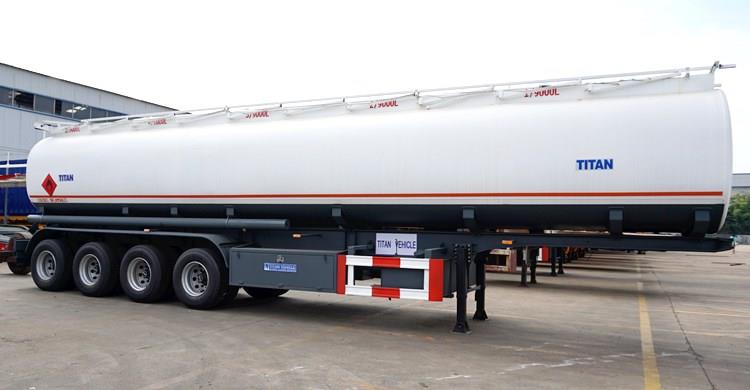

4 Axle Fuel Tanker Trailer
