TITAN Vehicle Semi Trailer Price List

Product description:

Semi trailers are mainly used to transport large cargoes that are bulky and difficult to split, such as excavators, etc. The fence trailer is more suitable for pulling fresh and live goods, such as vegetables, fruits, etc. The van trailer is more suitable for pulling bulk cargo and more expensive cargo.

TITAN can customize different types of semi trailer according to your need, we can provide container trailer price, lowbed trailer price, cargo trailer price, fuel tanker trailer price, cement bulker trailer price, etc.

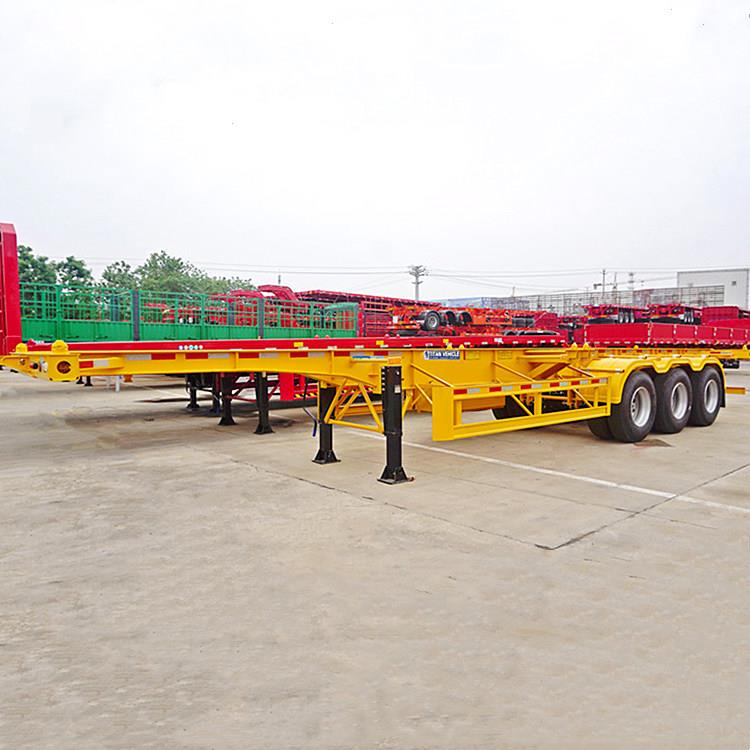

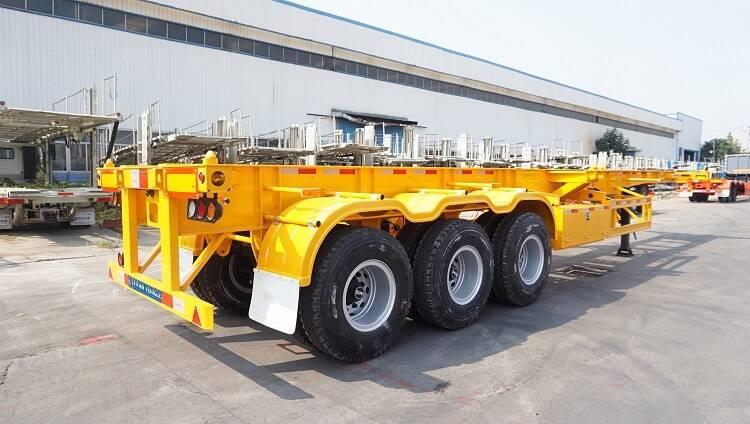

3 Axle Container Trailer Specifications:

Container Trailer Price: USD6300-10000

Model: 3 axle 40ft container trailer

Overall dimension：12400*2500*1550mm

Axles: 3 axles

Tire: 12 units

Kingpin: 50#, 90#

Landing gear: JOST

Brake system: WABCO

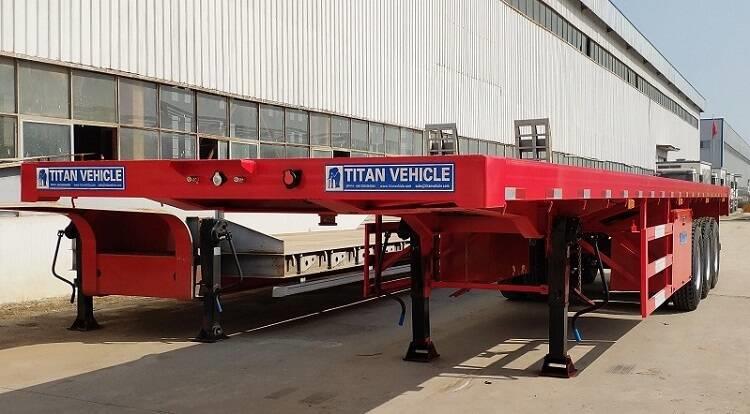

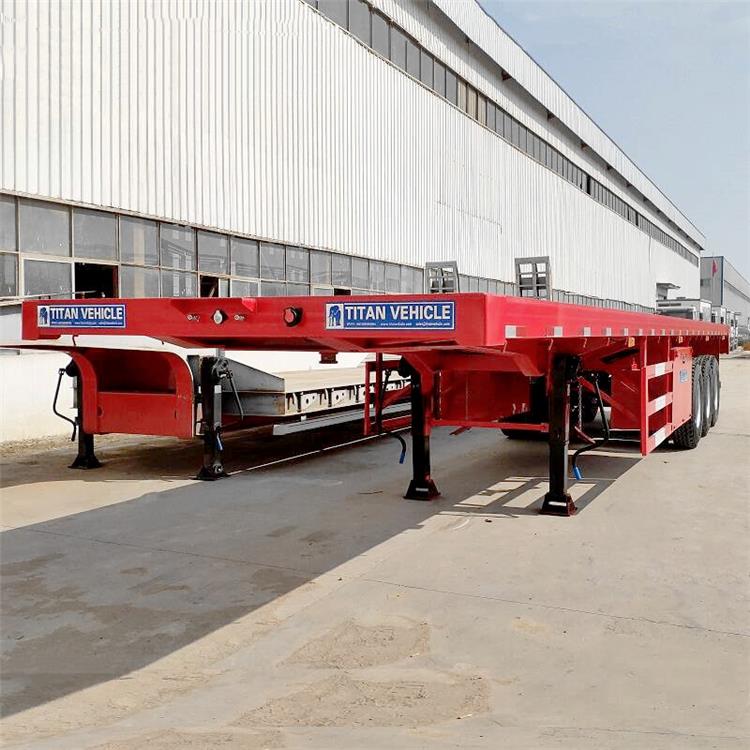

Tri Axle Flatbed Trailer Specification:

Flatbed Trailer Price: USD7800-11000

Model: 3 axle 40ft flatbed trailer

Overall dimension：12500*2500*1530mm

Axles: 3 axles

Tire: 12 units

Kingpin: 50#, 90#

Landing gear: JOST

Brake system: WABCO

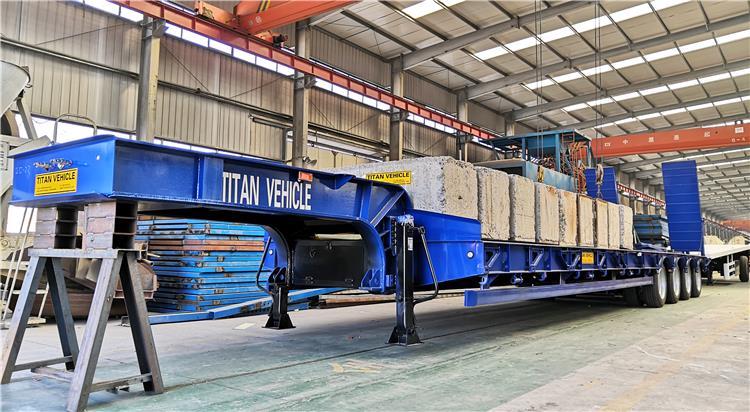

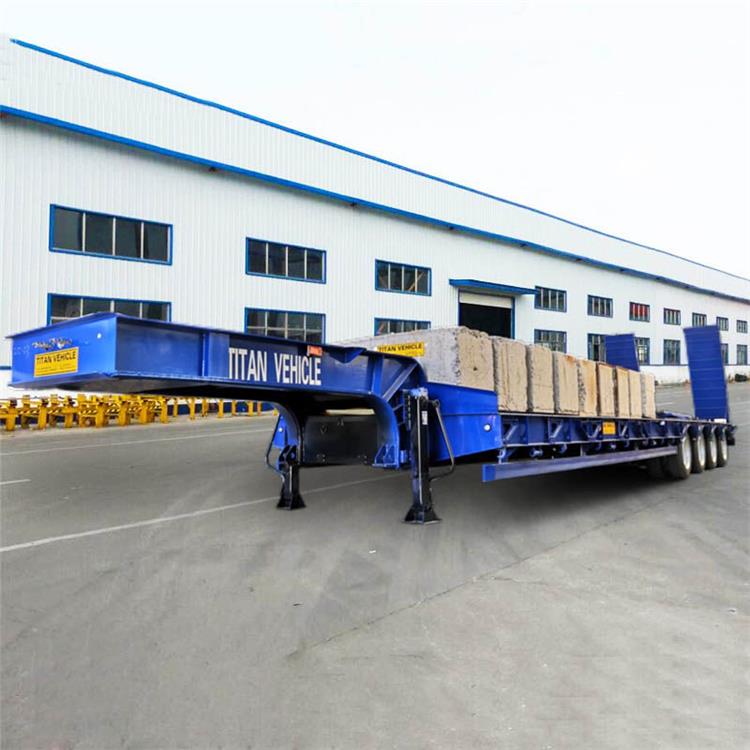

Lowbed Trailer Specification:

Lowbed Trailer Price: USD14000-20000

Model: 4 Axle Lowbed

Overall dimension: 15800mm * 3000mm *3400mm

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Valve: WABCO valve

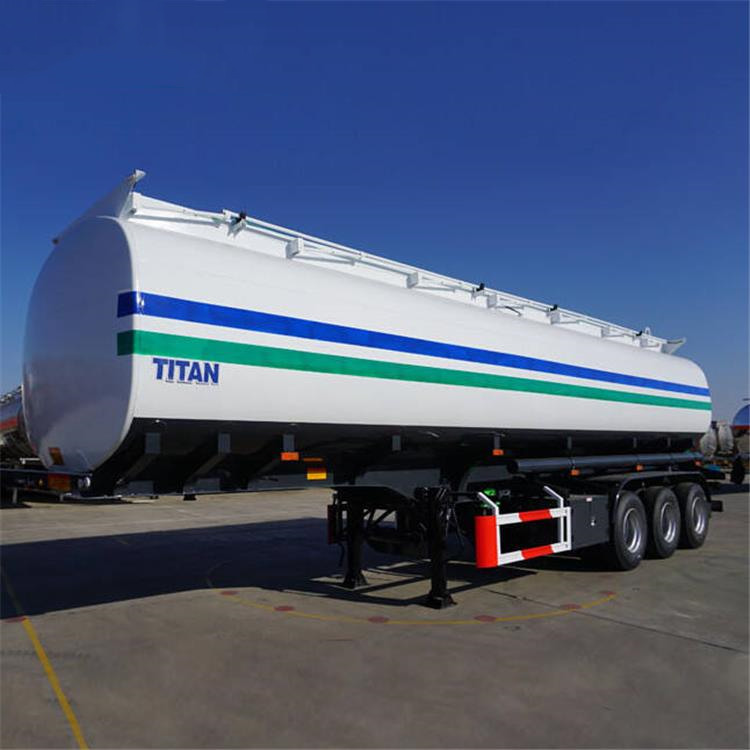

Fuel Tanker Trailer Specification:

Fuel Tanker Trailer Price: USD13500-20000

Model: 45000 Liters Fuel Tanker Tanker

Overall dimension: 11500mm * 2500mm *3700mm

Transport: fuel, petrol, oil

Tank body material: carbon steel

Axles: 3 axles

Suspension: Heavy duty mechanical suspension

Tire: 12 units

Discharging Pipe: 2 pcs, 6m/each

Kingpin: 90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights

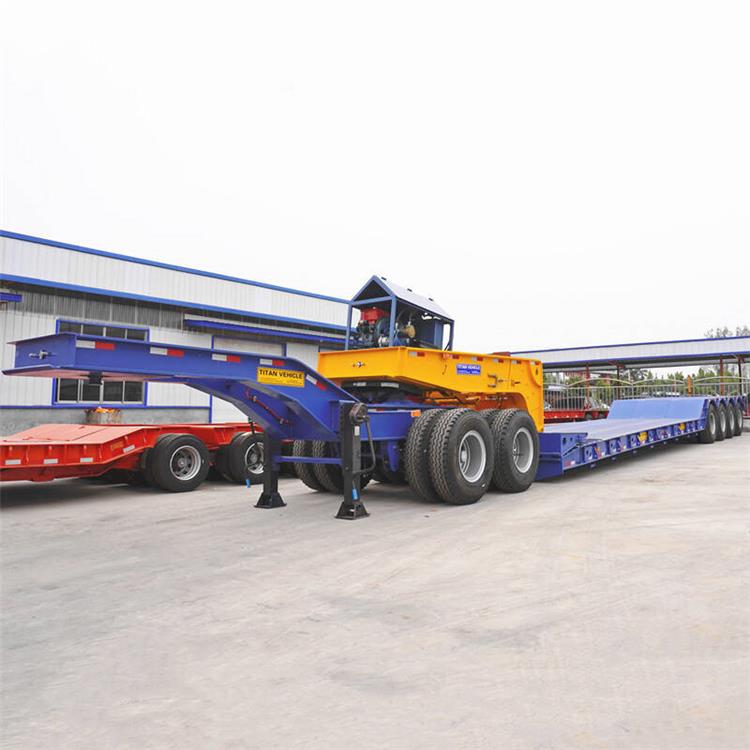

Detachable Gooseneck Trailer Specification:

Detachable Gooseneck Trailer Price: USD21000-42000

Model: 4 Axle Lowboy Trailer

Overall dimension: 17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:150 ton

Axles: 4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

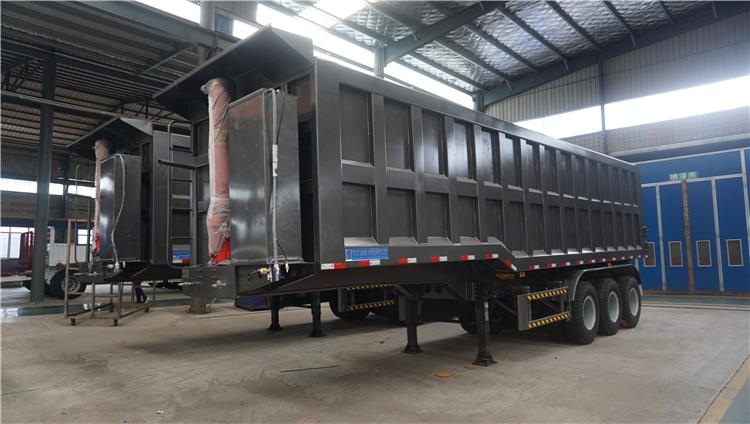

3 Axle Tip Trailer Specification:

Tipper Trailer Price: USD17500-28000

Model: 3 Axle Tipper Trailer

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm,

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

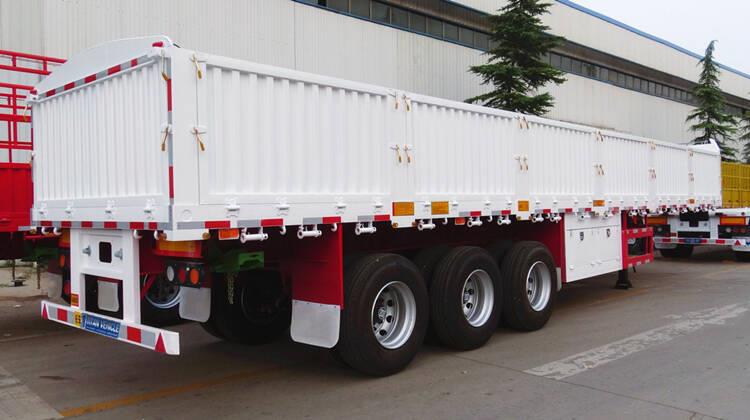

Side Wall Trailer Specification:

Sidewall Trailer Price: USD 9700-12500

Livestock Trailer Price: USD 10000-12000

Overall dimension: 12500mm*2500mm*2350mm(800mm sidewall)

Loading capacity: 50-60ton

Axles: 3 axles

Tire: 12 units

Suspension: Heavy duty mechanical spring suspension

King pin: 90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V , LED lights

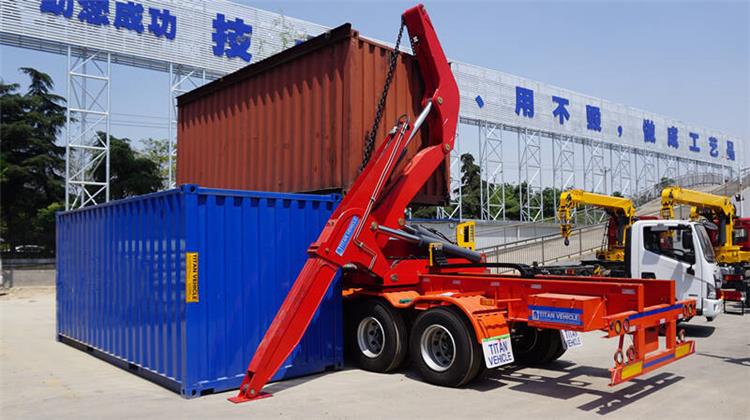

Sidelifter Specification:

Side Lifter Trailer Price: USD67500-88000

Model: 40Ft Sidelifter Trailer

Max.lifting capacity: 45 ton

Function: Load 20/40ft container trailer

Trailer Chassis: 14100mm * 2500mm *4100mm

Axles: 3 axles

Tire: 12 units

Landing gear: JOST C200

Hydraulic pump: Gear type Casappa Italy

Hydraulic direction control valves: AMCA Holand

Motor: Japanese Kubota diesel engine

Bulker Cement Tanker Trailer Specification:

Cement Tanker Trailer Price: USD16000-20000

Model: Cement Tanker Trailer

Payload : 36T-50T

Axles: 3 axles

Tire: 12 units

Application: transport lime, cement, powder, etc.

Tank body thickness: 3.5mm

Diesel Engine: WEICHAI Brand

Compressor: BOHAI

Suspension: Heavy duty mechanical suspension

Landing gear: JOST

Brake system: WABCO

Extendable Wind Blade Trailer Specification:

Extendable Wind Blade Trailer Price: USD65000-100000

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Frame: HG60 high strength steel frame

Loading capacity: 100 Ton

Axle: 10 Axles

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform leveling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Landing gear: JOST C200

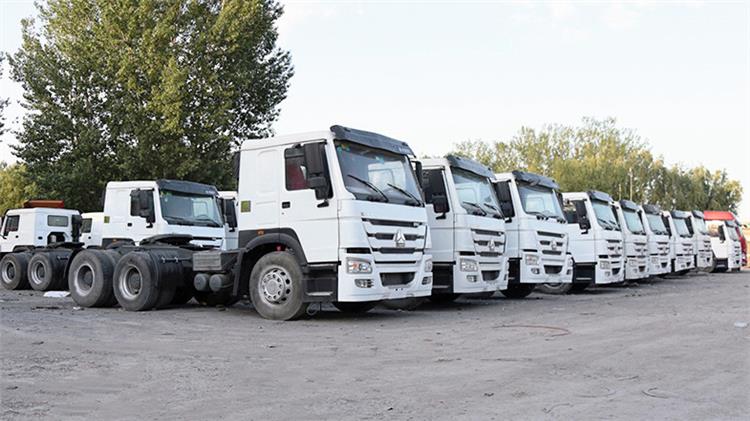

Howo 6x4 420 hp Tractor Truck  Specification:

SinoTruk Howo Tractor Truck Price: USD35000-40000

Model: Howo 6x4 420 hp Tractor Truck

Chassis model: ZZ4257V3241W

Overall dimension: 6900*2550*3450mm

Driving Typer: LHD (RHD is optional)

Engine model: D12.42, Euro 2, 420 HP, 6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 11.596 L

Steering: ZF power steering, model ZF8118, hydraulic steering with power assistance;

Frame: Uprofile parallel ladder frame with a section of 300x80x8mm, reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on the front shaft and rear wheels

TYRES: 13R22.5

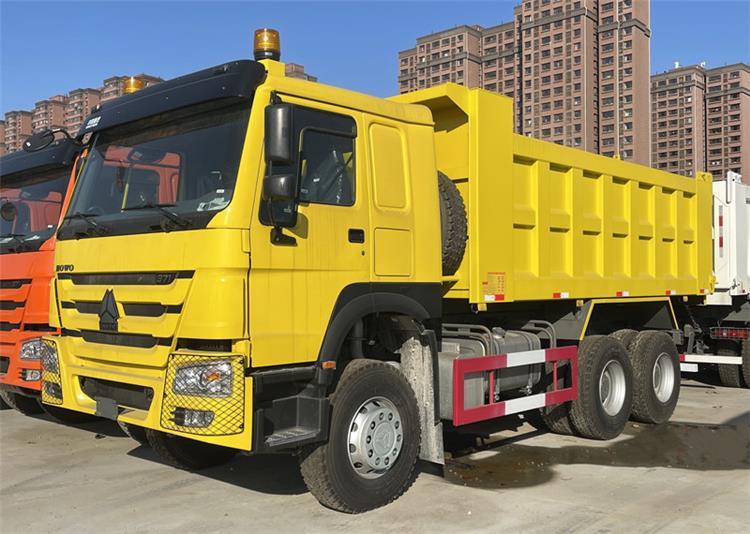

Howo Dump Truck Trailer Specification:

Howo Dump Truck Price: USD38000-48000

Model: Howo 6x4 420 hp Tractor Truck

Overall dimension: 6900*2550*3450mm

Driving Type: LHD (RHD is optional)

Engine: Diesel 4-stroke direct injection diesel engine

Engine model: D12.42, Euro 2, 420 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 11.596 L

Steering: ZF power steering, model ZF8118, hydraulic steering with power assistance;

Frame: U-profile parallel ladder frame with a section of 300x80x8mm, reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on the front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Tires: 13R22.5
