Different Parameters, Different Price. Price Reference Only.
TITAN Vehicle offers 3 axle lowbed excavator semi trailer designed to carry 60 tons, 80 tons. It's main cargo platform is ultra low, which ensures the stability in transportation.
We produce very durably Tri Axle Lowbed Excavator Trailers with high strength to meet the transport needs. TITAN's Main beam adopts HG60 high strength steel, with high loading capacity. Side beam adopt “H” shape design, the durable design avoid the side beam having the deformation.
Tri Axle Lowbed Excavator Trailers for sale are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc.
We can customize the 3 axle lowbed trailer according to your needs.

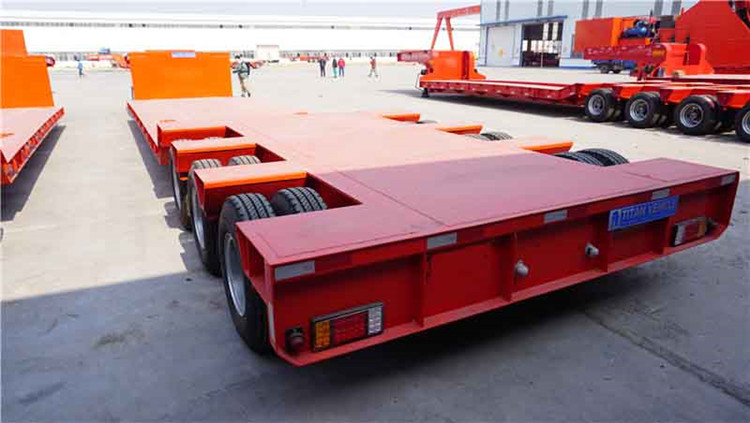

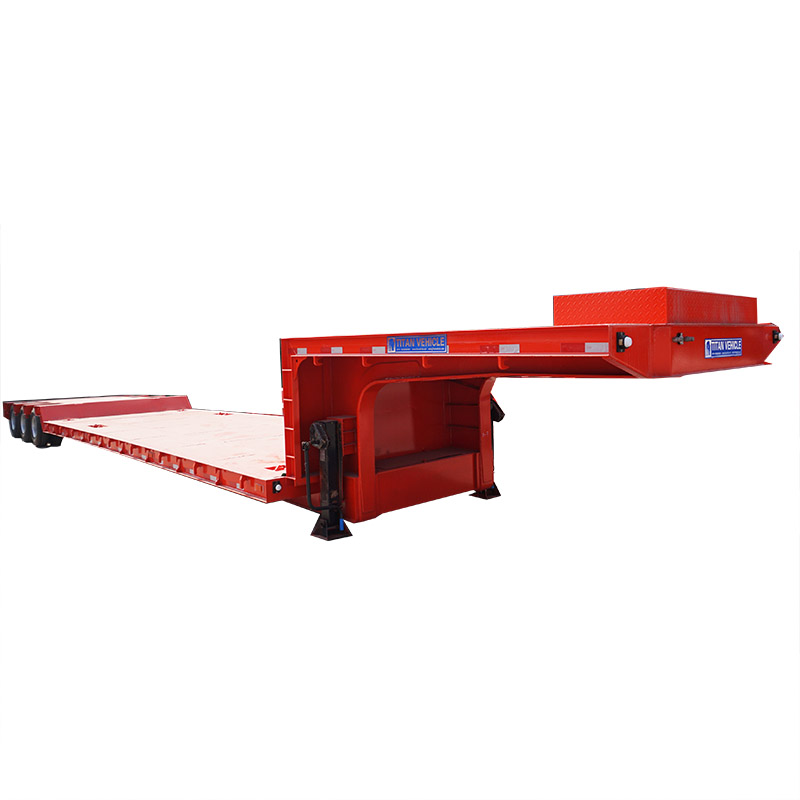

3 Axle Lowbed Excavator Trailer for Sale in Sierra Leone
3 Axle Lowbed Excavator Trailer for Sale in Sierra Leone
Dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60-80T
Axle: 16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG60 high strength steel, with high loading capacity.
2. Side beam adopt “H” shape design, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service life, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
