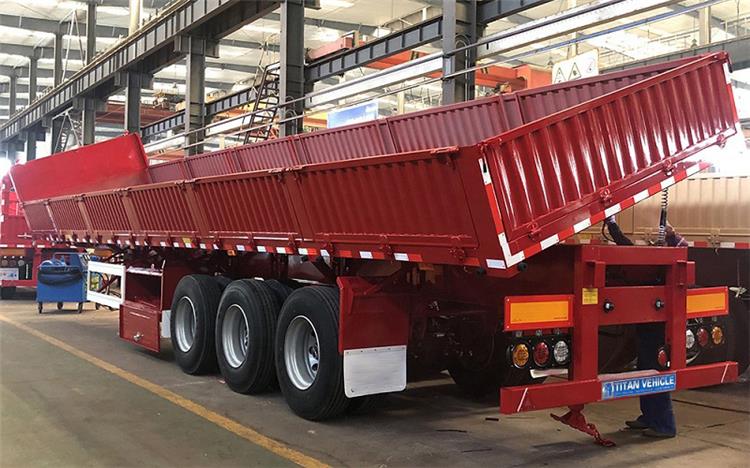

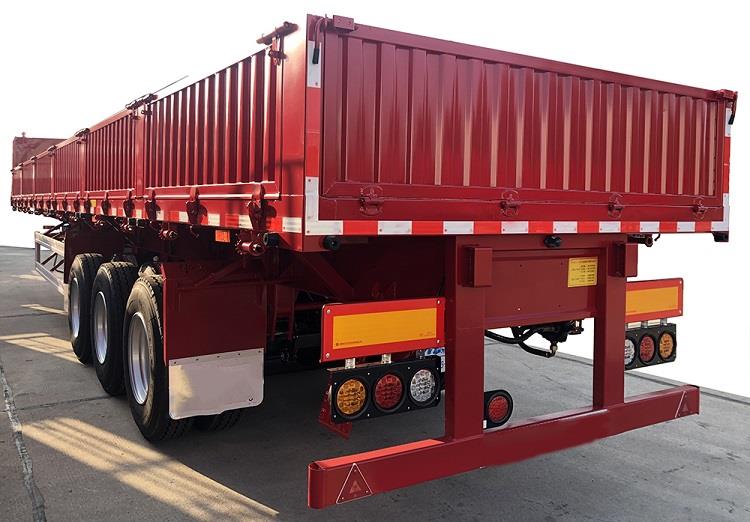

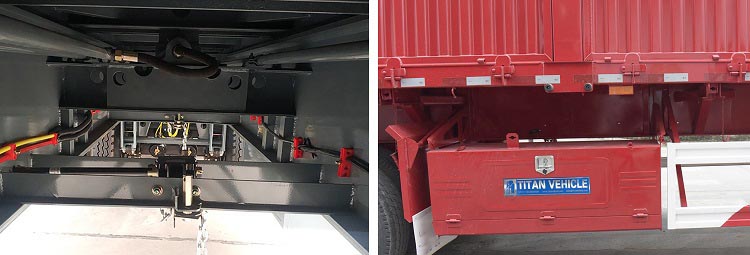

34 Ton Side Tipper Trailer

Product description:

The Side tipper trailer is designed to fall sideways for a reason, and you may be forced to unload in areas where there is not enough space. In this case, you can use side tipper trailer to help save space. The load capacity of the side tipper trailer may be greater than that of the end dump trailer.

34 Ton Side tipper trailer suitable for large workplaces, 34 Ton Side Tipper Trailer for Sale maximum carrying capacity can reach 80-100tons.

Side tipper trailer Specifications:

Dimension: 11000mmx2500mm x4000mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm

Bottom Platform: 4 thick checkered plate

Side wall thickness: 3mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of hydraulic lifting system

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
