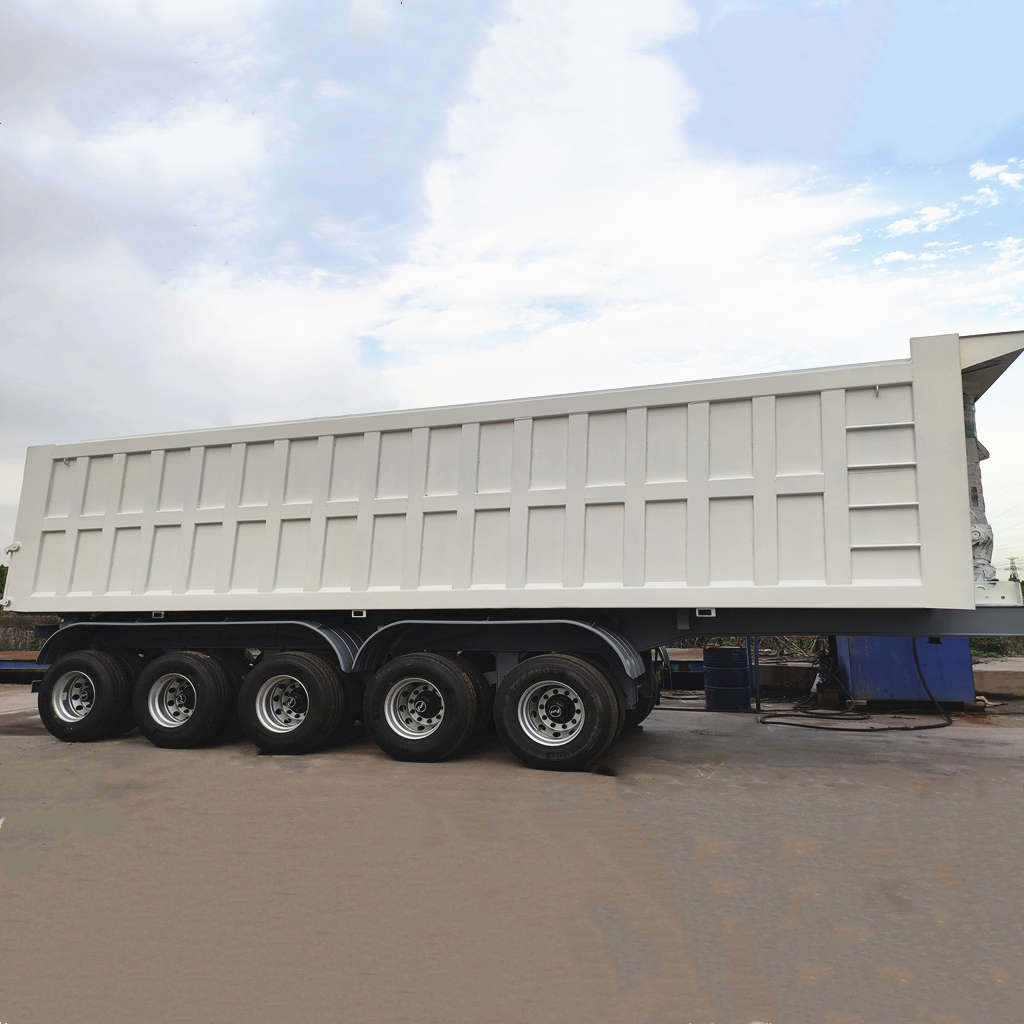

5 Axle Dump Semi Trailer
5 Axle Dump Semi Trailer

5 Axle Dump Semi Trailer

17500 USD

Different Parameters, Different Price. Price Reference Only.



Dump Semi Trailer is also called rear dump trailers. China 5 Axle Dump Semi Trailer for Sale are usually used to carry building materials such as sand, stones, etc.

SKU: 5 Axle Dump Semi Trailer
GTIN: 6975766111182
MPN: TITAN9407073
Brand: TITAN

Product description:

Dump Semi Trailer will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained.

Dump Semi Trailer is also called rear dump trailers. China 5 Axle Dump Semi Trailer for Sale are usually used to carry building materials such as sand, stones, etc.

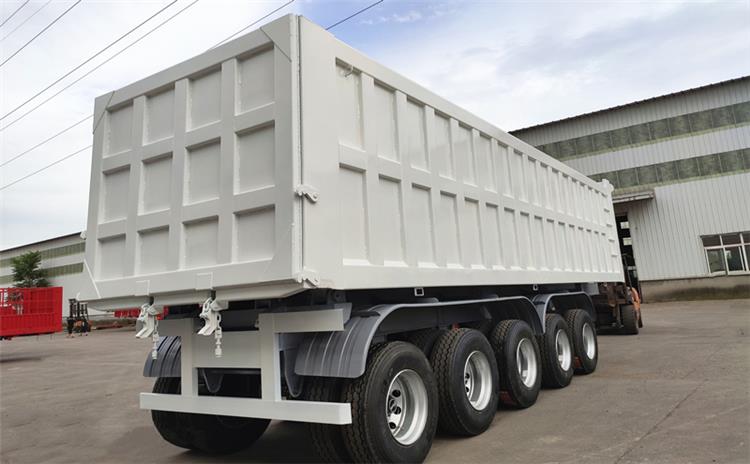

China 5 Axle Dump Semi Trailer for Sale

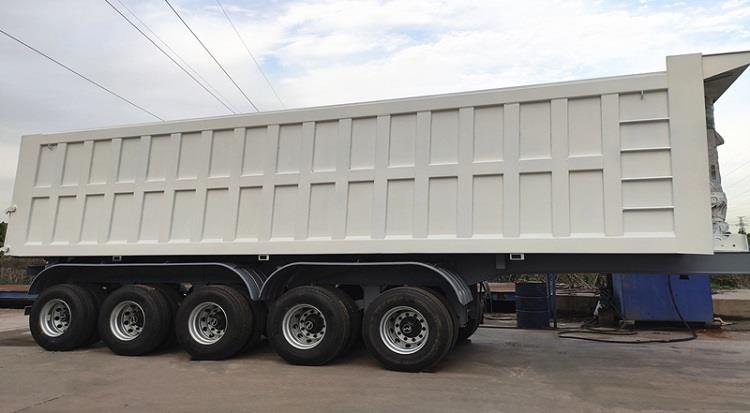

China 5 Axle Dump Semi Trailer for Sale



Dump semi trailer Specifications:

Dimension: 11000mmx2500mm x4000mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Review

Mbuyisi Ndlovu - 2021-06-21T14:06:54+0800
I think that's a pretty good 5 axle tip trailer for the price. It's paid for itself for me.
