50 Ton Detachable Front Loader Trailer

50 ton detachable lowboy trailers for sale:

With front loader trailer, you don’t have to be worried about this since you can almost carry all types of cargo.

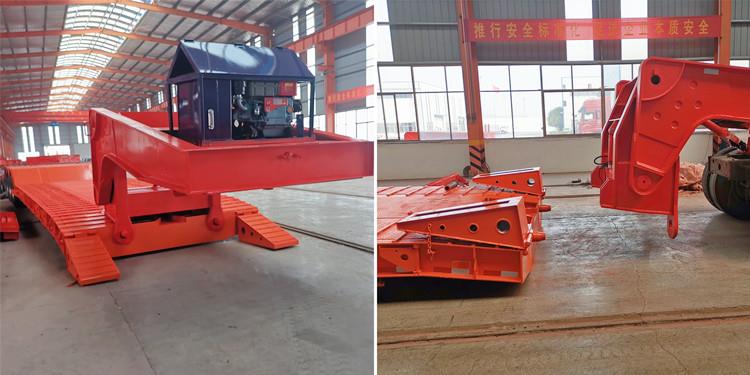

Characteristics of front loader trailer are that it can be detached from the front unlike with a lowbed semi trailer, so it is also called front loading detachable gooseneck lowboy trailer. This feature has been provided in a lowboy gooseneck trailer for sale to enhance loading and offloading of cargo.

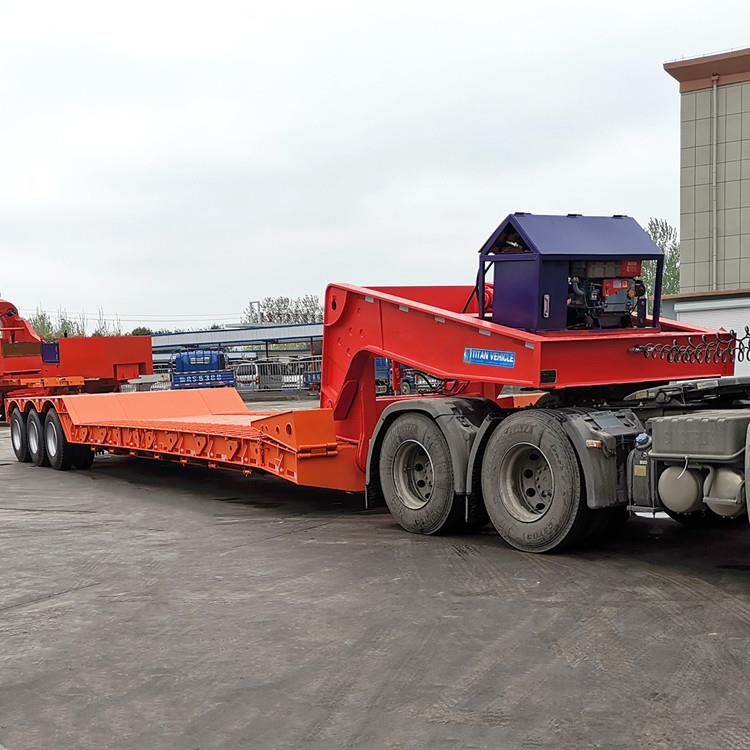

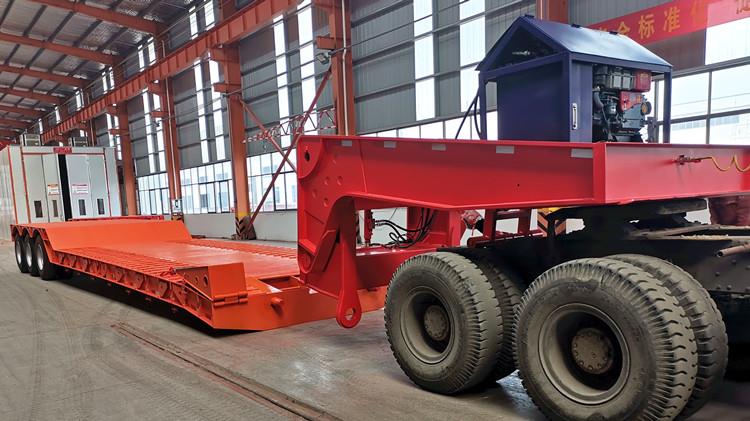

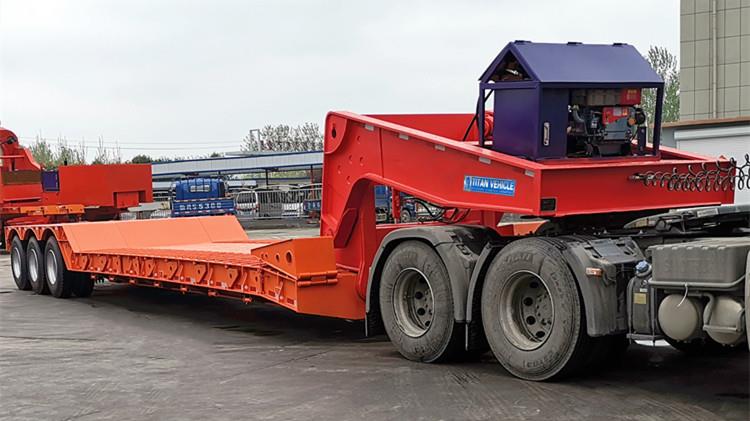

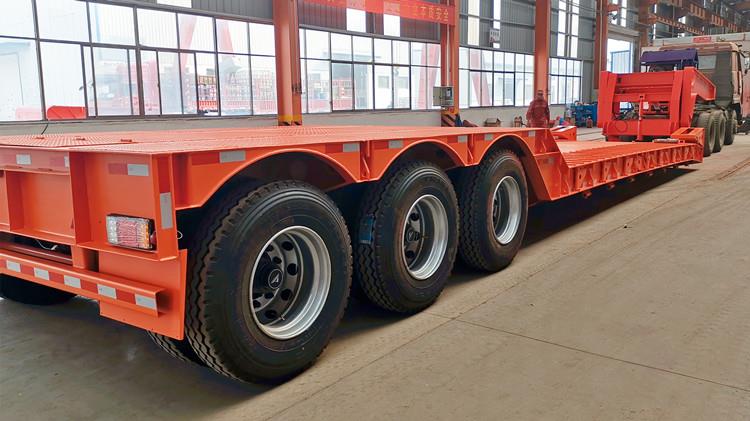

50 Ton Detachable Lowboy Gooseneck Front Loader Trailer for Sale

50 Ton Detachable Lowboy Gooseneck Front Loader Trailer for Sale

50 Ton Detachable Lowboy Gooseneck Front Loader Trailer for Sale

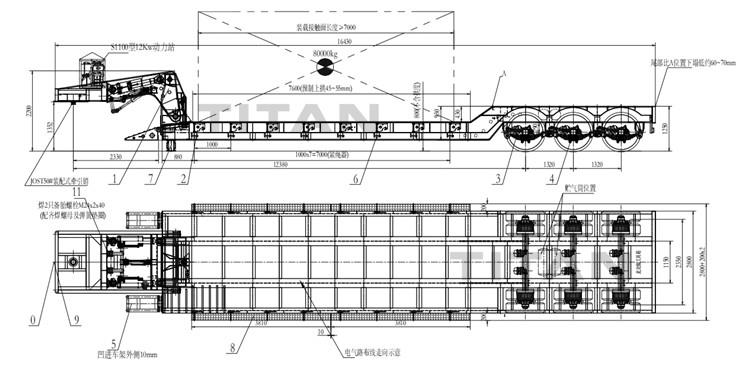

Specification of detachable gooseneck trailers for sale:

Dimension: 14400mm x 3000mm x 2500mm

Loading capacity(T): 50T

Axle: 3 axle

Tire: 12 units

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Features of lowboy gooseneck trailer for sale:

1. Strong carrying capacity

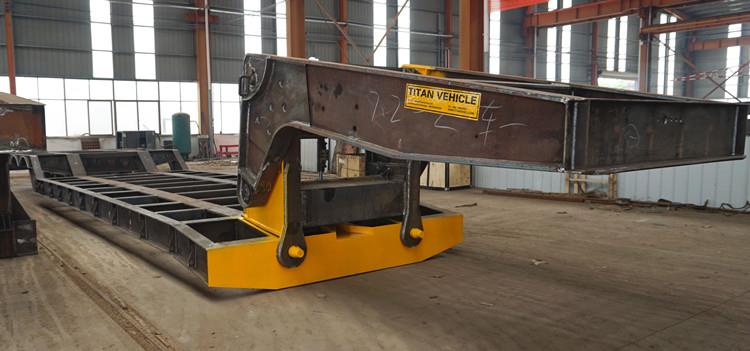

Detachable trailer main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN detachable gooseneck trailer adopts reinforced the gooseneck and upper and lower plate by double layer.

2. Low center of gravity and good stability

Due to the low ground clearance and low longitudinal beam height of detachable gooseneck lowboy trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center front loading low loader, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.

TITAN detachable gooseneck trailers for sale bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN front loader trailer adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.

3. Easy operation

The lifting operation handle of the bearing surface mostly adopts the centralized electric control device, rather than the traditional handle to control the operation, so that the operation interface is more convenient.

TITAN hydraulic system has undergone five major system upgrades in the ten-year production process, and now the hydraulic system has very good stability and stability The customer only needs regular maintenance. It can be used for ten years.

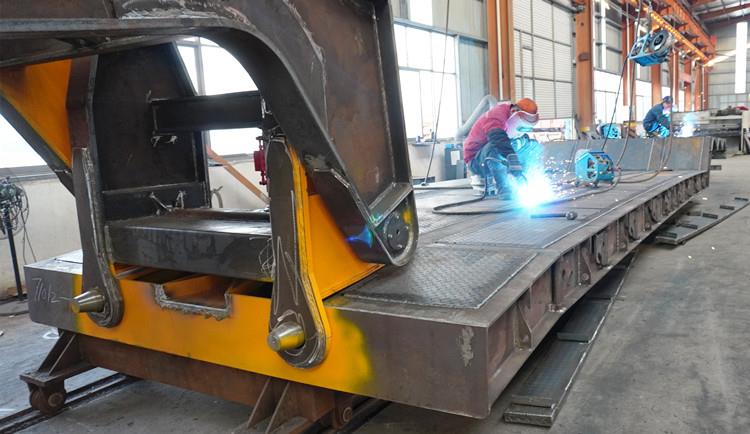

50 ton detachable lowboy trailers for sale in TITAN factory

Through the video, you can know different types of 60 ton lowboy trailer for sale, etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
