China TITAN 50000 litres crude palm oil tanker truck semi trailer with good pressure-bearing, anti-distortion, anti-vibration and explosion-proof performance make your oil tanker trailers much safety and more beneficial.
TITAN 50000 litres crude palm oil tanker truck semi trailer have various capacities for your choices cause we design and produce your oil tanker trailer customized.
Build the most durable and strong tankers, especially for Africa Market which need to consider the road conditions. ‹Get Quotation›
50000 Litres Crude Palm Oil Tanker Truck Semi Trailer Price for Sale In Nigeria Lagos
50000 Litres Crude Palm Oil Tanker Truck Semi Trailer Price for Sale In Nigeria Lagos

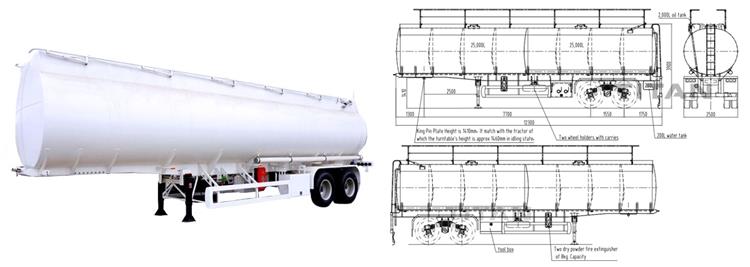

Dimension: 12300mm * 2500mm *3900mm
Total volume(L): 50000l
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 2 Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 2 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Bogie suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

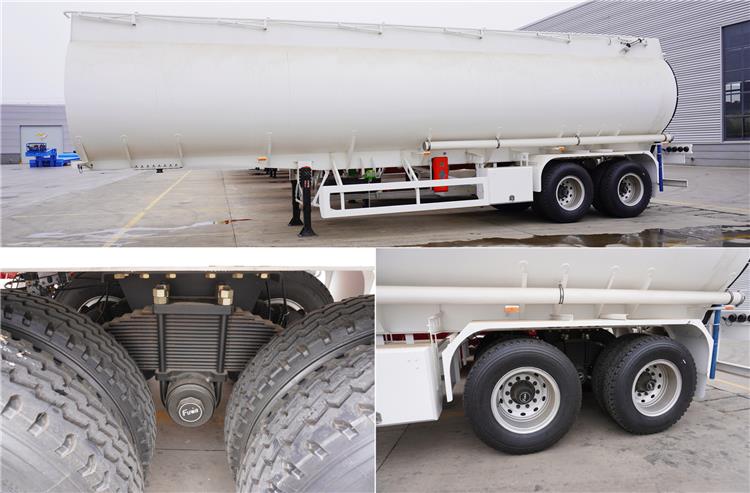

The bogie suspension is to reduce the common leaf spring front and rear brackets to a single bracket connected to the 50000 litres crude palm oil tanker truck semi trailer body. Its load point is shared on the front and rear axles. Compared with ordinary leaf spring suspension, the bearing capacity of bogie suspension is bigger.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
