Wind Blade Adapter

Wind Blade Adapter with modular semi trailer

TITAN designs and produce wind blade adapter with modular semi trailer. That is for tranpsport 30 meter to 67 meters Rotor blade, the Rotor Blade Adapter is specially for steep hills or narrow winding mountainous roads, and the rotor blade adapter can avoid obstacles such as the trees, buliding or limited spece, After Mounting on platform trailers, rotor blades can be picked up and positioned at an angle of up to 60°, pivoted as well as rotated around their owen axis. With the TITAN Wind Blade Adapter with modular trailer, the rotor blades can be securely picked up and maneuvered around any obstacle,that is the easily, safely and efficiency way to transport the rotor blades for customers.

According to different road conditions and load requirements, TITAN Wind Blade Adapter can be mounted and transported on both on a pulled platform trailer combination as well as module trailer, and self propelled modules.

Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Main Features - TITAN Wind Blade Adapter with modular trailer

• Max rotation angle of the rotor blade 360°

• Angle of inclination up to 60°

• Rotor blade adapter for diameters of 1.8m and 2.3 m wind blade

• Manual operation and wireless remote control

• Radio remote control with display of wind speed, transverse gradient, blade position, ballast position.

• Titan wind blade adapter can combine with modular semi trailer

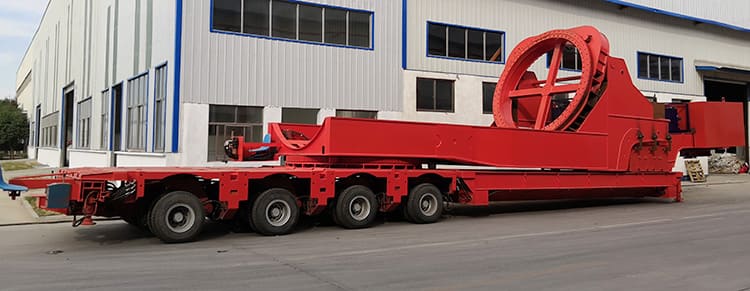

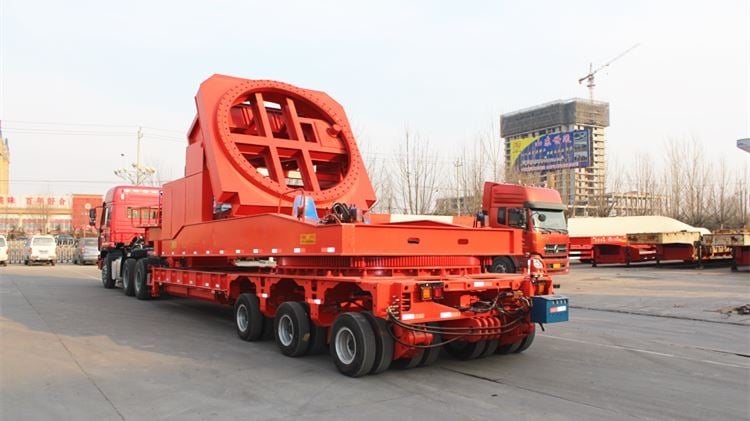

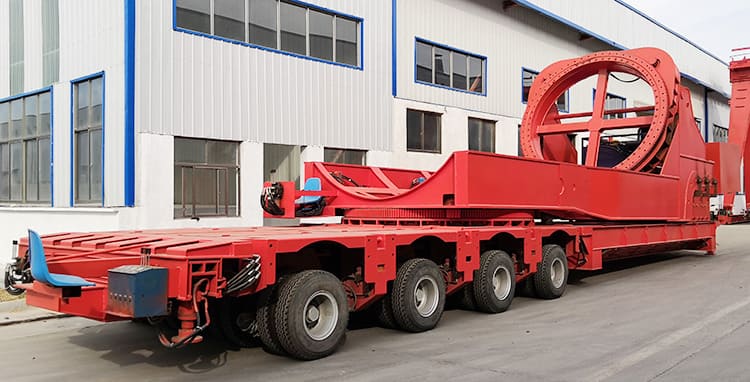

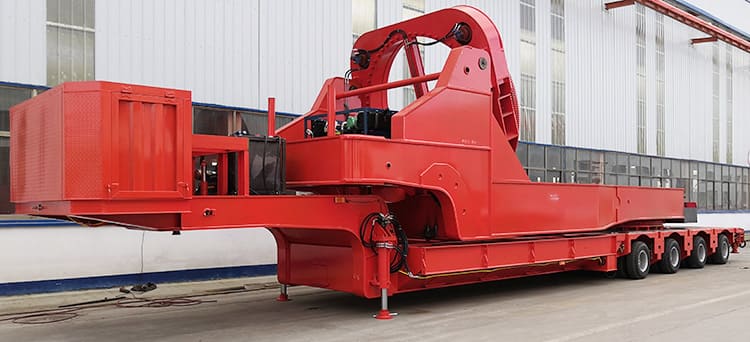

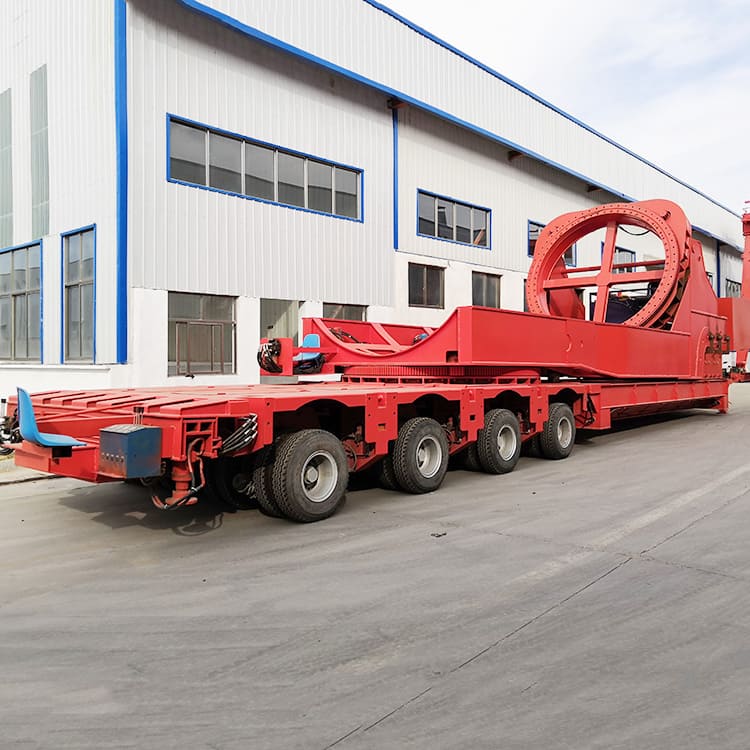

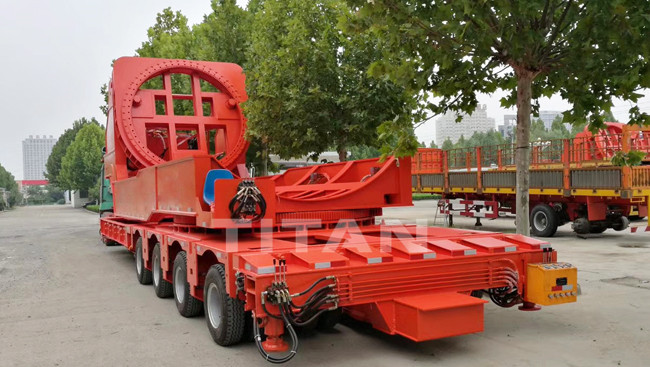

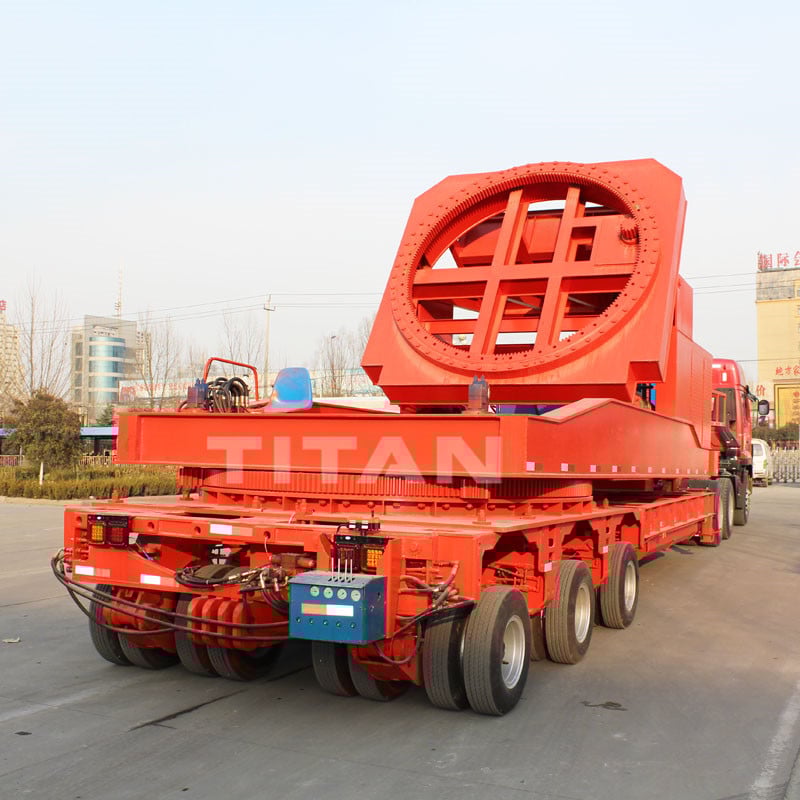

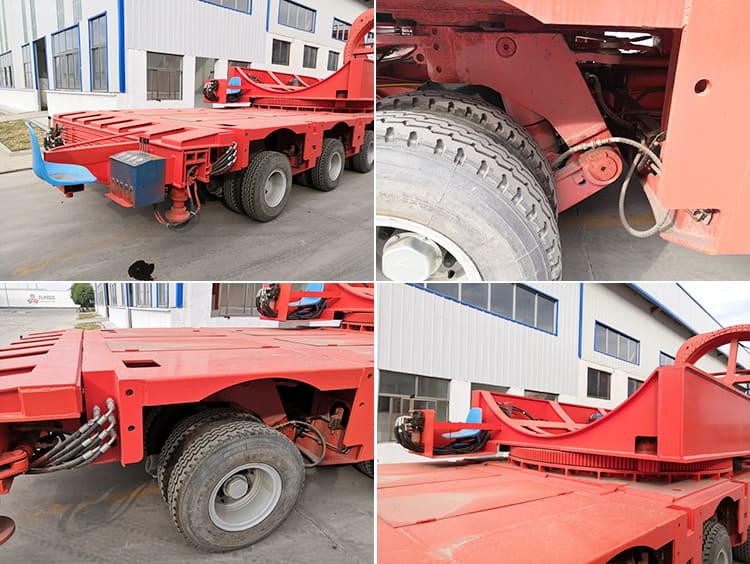

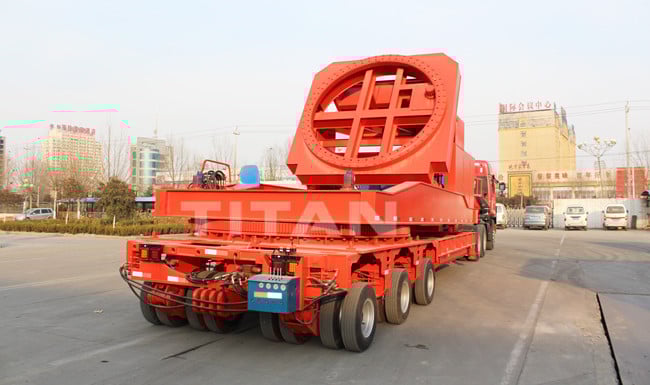

Pictures - TITAN Wind Blade Adapter with modular Trailer

TITAN professional engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and also your local regulations. TITAN engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.

All customers and friends are warmly welcomed to our company for visit and business negotiations, TITAN will as always to our best effort to provide you the most durable TITAN Wind Blade Adapter with modular trailer to support you forever.

If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!

We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !

Orders for ready-made or custom-made trailers are welcome!
