Extendable Low Bed Trailer
Extendable Low Bed Trailer

Extendable Low Bed Trailer

61530 USD

The TITAN extendable low bed trailer adopts a rear steering trailer, and the rear wheel of the 10 axle extandable low bed trailer has an independent steering system, which can make the trailer steering more flexible.

SKU: Extendable Low Bed Trailer
GTIN: 6975766110635
MPN: TITAN9432040
Brand: TITAN

Extendable Low Bed Trailer:

The TITAN 10 axle extendable low bed trailer is specially designed for the transportation of wind blades. This extendable low bed trailer is designed to increase the length of the body by installing telescopic beams. The 10-axle extendable low bed trailer can be used to transport wind blades up to 80 meters long.

In addition to transporting wind blades, this 10-axle extendable low bed trailer can also be used to transport extra-long cargo. TITAN provides solutions for the transportation of all windmill components for wind power construction companies.

Extendable Low Bed Trailer for Sale Near Me

Extendable Low Bed Trailer for Sale Near Me

Extendable Low Bed Trailer for Sale Near Me

Extendable Low Bed Trailer for Sale Near Me

Extendable Low Bed Trailer for Sale Near Me

Extendable Low Bed Trailer for Sale Near Me

Extendable Low Bed Trailer for Sale Near Me

Extendable Low Bed Trailer for Sale Near Me

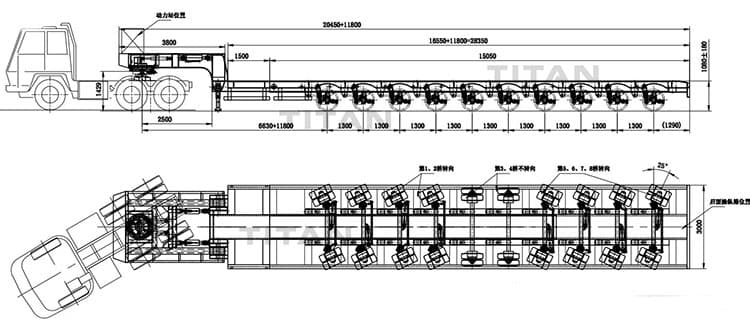

Extendable Low Bed Trailer Specification:

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 10 Axles

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel

Extendable Low Bed Trailer for Sale Near Me

10 Axle Extendable Low Bed Trailer for Sale



10 Axle Extendable Low Bed Trailer Advantages

1.The load-bearing platform of this extendable low bed trailer is widened by 250mm on both sides; the longest can be stretched 7500x2, and the length of the load-bearing platform is 14.5m; it meets the requirement of 29m after the cargo platform is stretched

2.The gooseneck of this extendable low bed trailer is powered by a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle.

3. The hydraulic suspension with lifting function is applied, and the force between the shafts is balanced by the suspension oil cylinder, which has the function of independent lifting shaft.

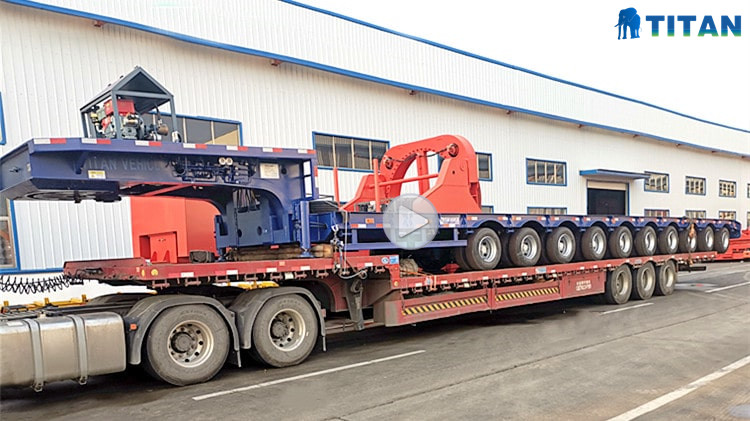

Extendable low bed trailer display video

Review

Mr. Siegfried from Kazakhstan - 2022-09-27T10:09:11+0800
Our operator said the extendable low bed trailer is very handful. The extendable low bed trailer is easy to operate. The appearance of the trailers is quite beautiful.
