Transporting large, non-disassembleable cargo is the primary purpose of the TITAN windmill blade trandport trailer. Such large goods are generally windmill parts such as wind blades, wind towers, etc.
The TITAN windmill blade transport trailer is made for transporting non-dismantling large cargo, mainly used to transport windmill parts such as blades and tower. This windmill blade transport trailer uses a telescopic beam, which allows the car to be increased or shortened in length, and the longest windmill blade transport trailer can be extended to 56m.
The windmill blade transport trailer adopts 3-point support hydraulic suspension, hydraulic all-wheel traction or manual steering, which makes the transportation of the windmill blade more convenient and fast
Windmill Blade Transport Trailer for Sale
Windmill Blade Transport Trailer for Sale
Windmill Blade Transport Trailer for Sale
Dimension: 22,450mmX3120mmX1580mm
Total length: 61,000mm after extension
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 4 axle
Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)
Tire: 16 units, Triangle brand
Landing gear: JOST C200
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

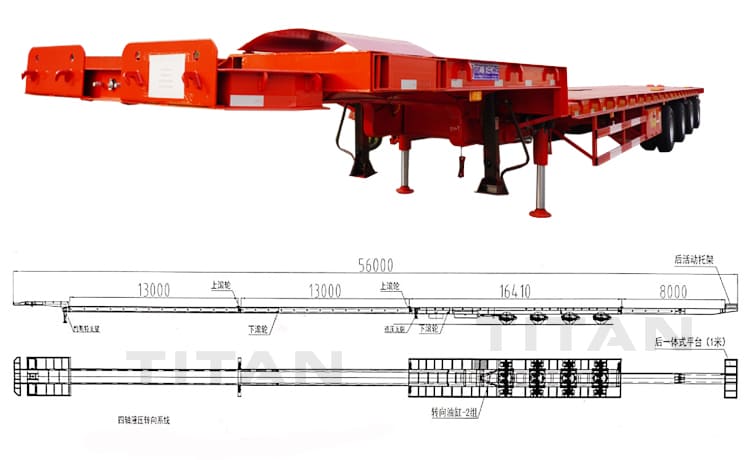

Drawing of Windmill Blade Transport Trailer 56M
Windmill Blade Transport Trailer 56M Display Video
