Windmill Blade Trailer

Windmill Blade Trailer for Sale:

The windmill blade is a large piece of goods with a length of 80m and above. The windmill blade trailer designed by TITAN is mainly used to transport wind blades, etc. Due to the different lengths of the blades, the product sizes are also different. According to the actual size of the equipment, select the corresponding transport model. TITAN can customize the length of the windmill blade trailer according to your needs.

The windmill blade trailer carts made by TITAN have first-class craftsmanship, and the windmill blade trailer with special lengths put forward strict requirements on the manufacturing process of the telescopic beams. TITAN's high standard of workmanship and welding ensures easy adjustment of the extension beams.

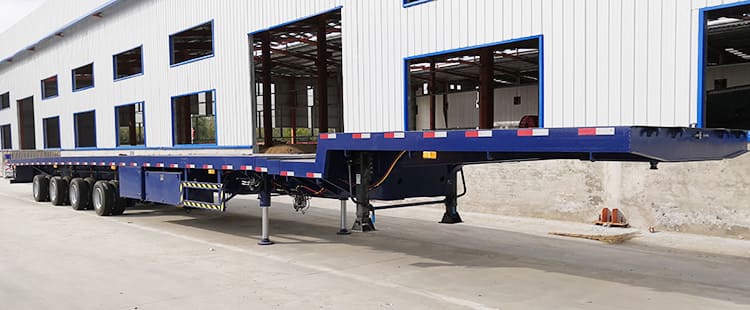

Windmill Blade Trailer for Sale in Kazakhstan

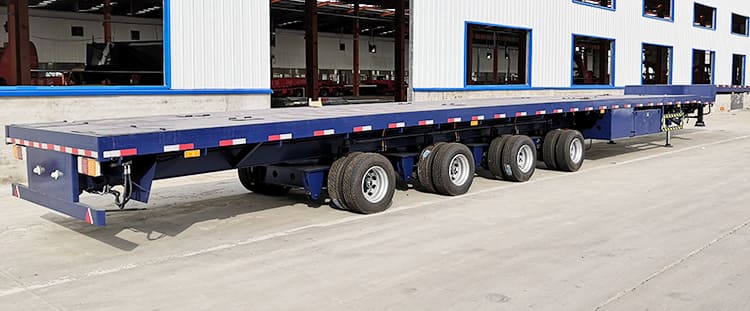

Windmill Blade Trailer for Sale in Kazakhstan

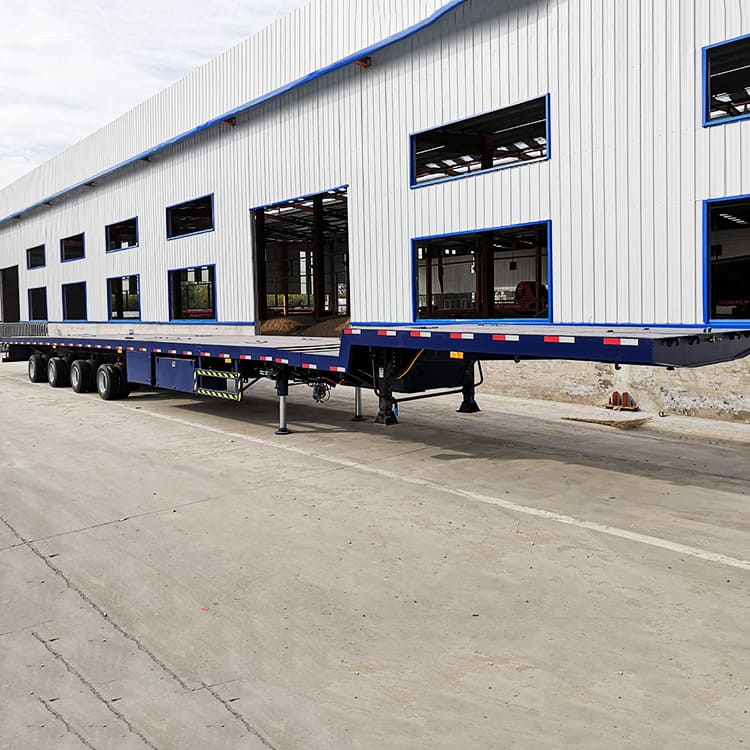

Windmill Blade Trailer for Sale in Kazakhstan

Windmill Blade Trailer Specification：

Brand: TITAN Windmill Blade Trailer 4 Axle 60M

Dimension: 22,450mmX3120mmX 1580mm

Total length: 61,000mm after extension

Braking system: WABCO emergency valve

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 4 axle

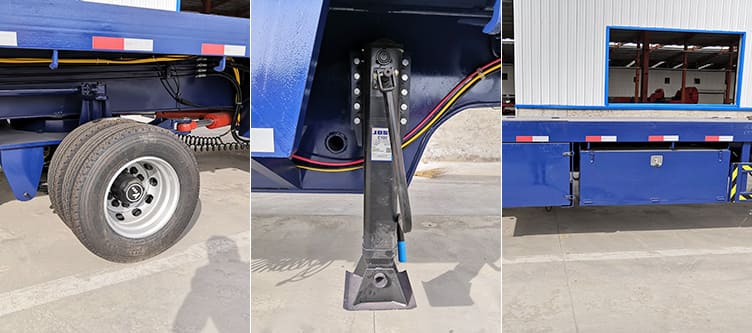

Landing gear: JOST C200

Suspension: Hydraulic suspension.

Tire: 16 units, Triangle brand

King pin: 3.5 inch high tensile steel bolted type

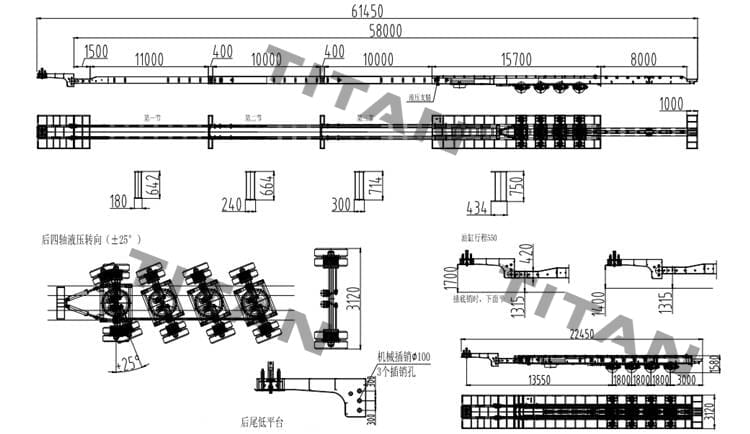

Drawing of Windmill Blade Trailer 4 Axle 60M

Windmill Blade Trailer Advantages：

1. This windmill blade trailer is characterized by a highly sturdy frame and stable extension beams.

2. The suspensions that TITAN can provide you installed on the windmill blade trailer for sale  are: mechanical spring suspension, air suspension or hydraulic suspension.

3.The length of the windmill blade trailer 4 axle 60m can be extended to 50m front and rear, and it is used to transport special wind blades on the road. Its loading capacity can reach an astonishing 90 tons.

4. The TITAN windmill blade trailer can be equipped with manual valve operation and wireless remote control to make the loading and unloading process safer.

Windmill Blade Trailer 4 Axle 60M Display Video
