Wind Tower Trailer

Wind Tower Trailers for Sale:

The main design purpose of this wind tower trailer is to transport the air ducts on ordinary roads. This car has a very strong bearing capacity and can transport 100-200 tons of towers.

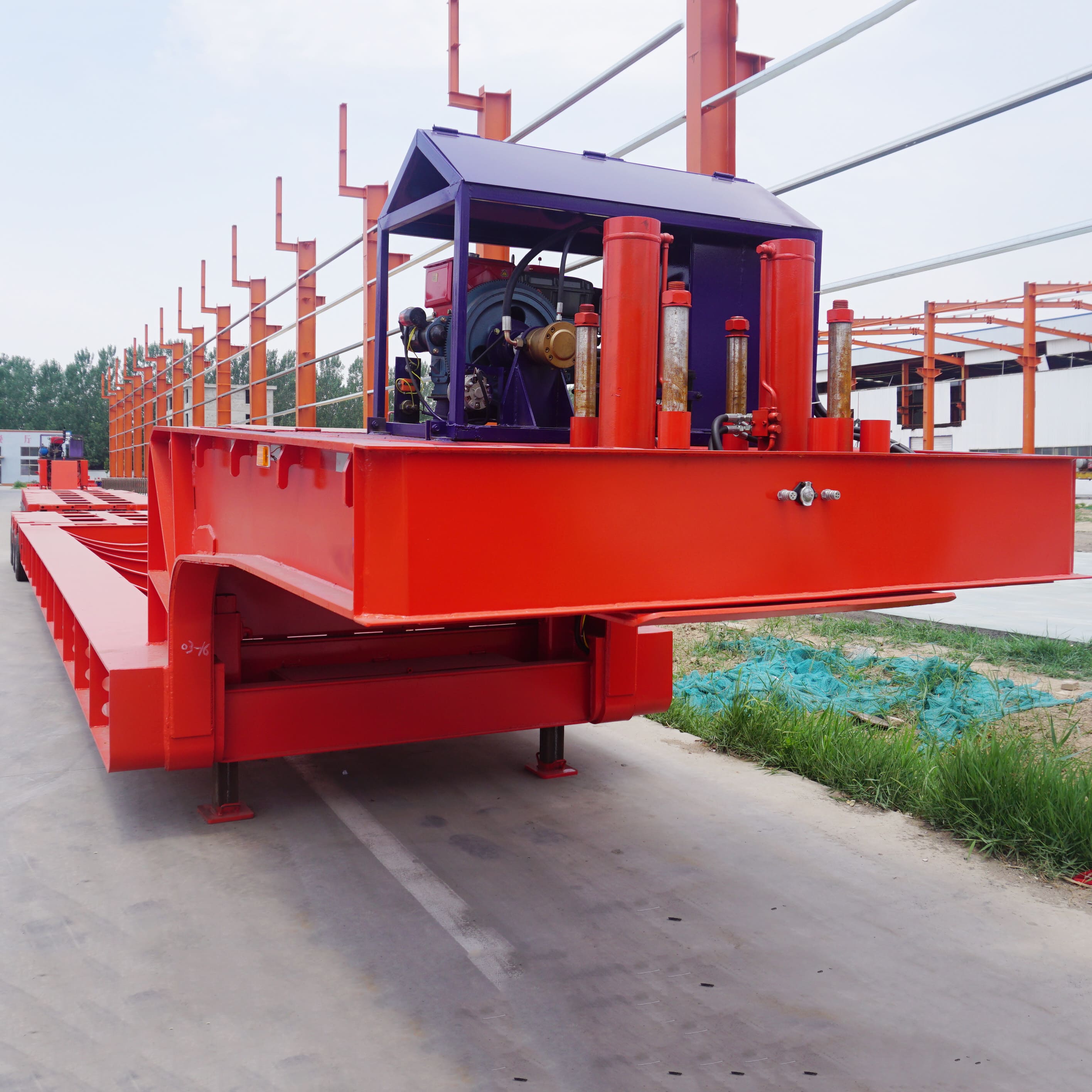

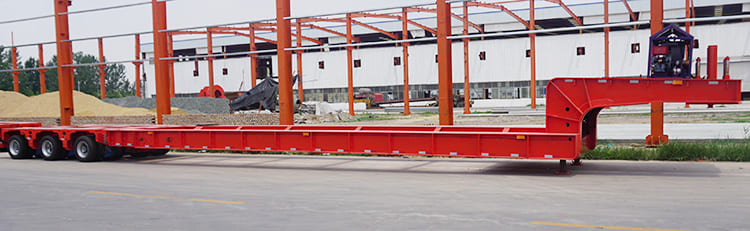

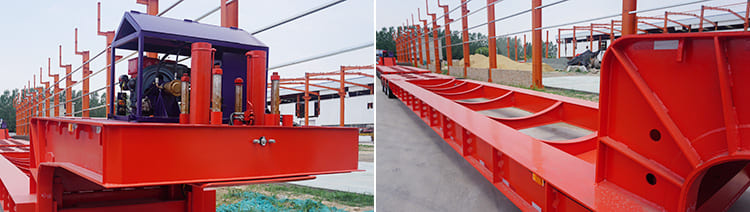

This wind tower trailers for sale has two parts: one is the adapter side with the gooseneck to connect to the fifth wheel. The second is a lowbed trailer. Oversized tanks over 5 meters in diameter can be transported.

Wind Tower Trailers for Sale | Wind Tower Transportation

Wind Tower Trailers for Sale | Wind Tower Transportation

Wind Tower Trailers for Sale | Wind Tower Transportation

Wind Tower Trailer Specification

Brand: TITAN Wind Tower Trailers for Sale

Gooseneck: Normal or hydraulic lifting gooseneck optional

Axles: 5 line 10 axle, hydraulic steering optional

Power station: for controlling the hydraulic systems

Braking system: Double air chamber, brake valve; ABS optional

Electrical: LED light, 7 ways,24V

Painting: Blasting and clean rust,1 coat of prime painting, 2 coat of finish paint

Bogie distance: 580/1760mm

Tyre specification: 215/75R17.5

Platform weight: 15Tons

Tire: 9.00R20*24Pcs

Axle distance: 1500mm

Rim specification: 6.00 (with reinforced rim)

Steering system: Hydro Mechanical steering

Suspension: Hydraulic suspension with three supports

Brake system: Dual line circuit

Loaded speed: 20km/h

Deadweight: 27000kg

Max. turn radius: 12410mm inside/ 43245mm outside

TITAN Wind Tower Trailer Advantage:

1. The shape of this wind tower trailers for sale is a curved platform low bed trailer. .Width and length can be customized according to different needs of customers.

2.The platform height can be made very low. 350mm-900mm from the ground.

3.The axles of this wind tower trailer can be normal or steered, and the modular hydraulic lift bed trailer is optional.
