Wind Turbine Blade Trailer 6 Axle 62M
Wind Turbine Blade Trailer 6 Axle 62M

Wind Turbine Blade Trailer 6 Axle 62M

61530 USD

The wind turbine blade trailer is mainly used to transport wind blades, which can be up to 80m long. The main purpose of the TITAN wind turbine blade trailer is to ensure the safe transportation of 80-meter-long blades to the wind power station.

SKU: Wind Turbine Blade Trailer 6 Axle 62M
GTIN: 6975766110680
MPN: TITAN9432028
Brand: TITAN

Wind Turbine Blade Trailer

The main purpose of the design of the TITAN wind turbine blade trailer is hauling wind turbine blades on ordinary roads. In addition, this wind turbine trailer 6 Axle 62M can also be used to transport long and large cargo. The TITAN wind turbine blade trailer 6 axle 62m will make your transportation process easy and fast.

The length of the wind turbine blade trailer itself plus the telescopic length is 62m. The wind turbine blade trailer uses a mechanical shaft to connect the telescopic beam, so as to achieve the purpose of adjusting the length of the wind turbine trailer.

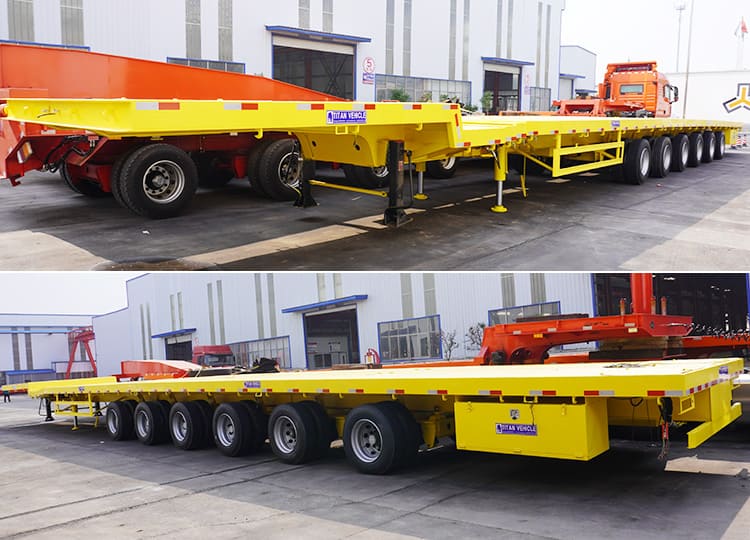

Wind Turbine Blade Trailer

Wind Turbine Blade Trailer for Hauling Wind Turbine Blades

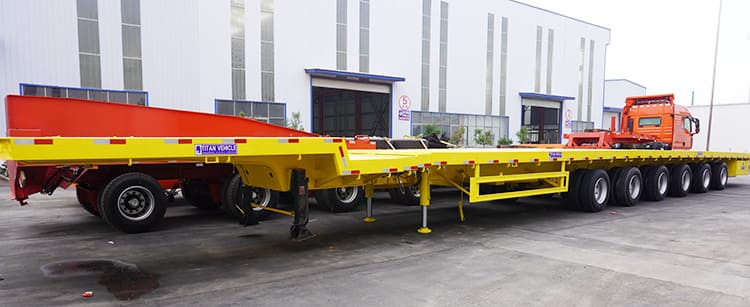

Wind Turbine Blade Trailer

Wind Turbine Blade Trailer for Hauling Wind Turbine Blades

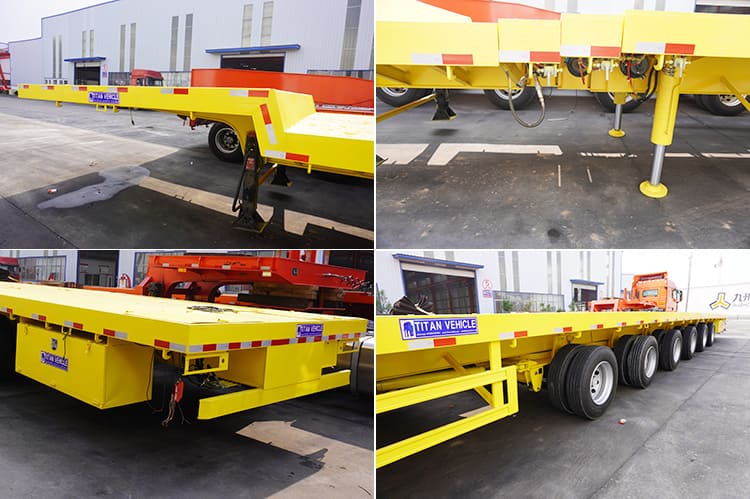

Wind Turbine Blade Trailer

Wind Turbine Blade Trailer for Hauling Wind Turbine Blades

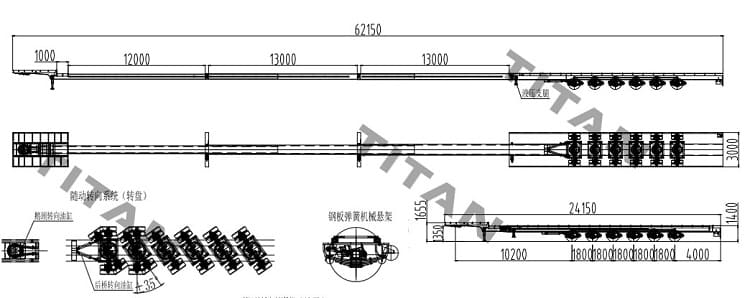

Wind Turbine Blade Trailer Specification:

Brand: TITAN Wind Turbine Blade Trailer 6 Axle 62M

Closed length: 24150mmX3000mmX 1650mm

Total length: 62,000mm after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Axle: 6 axle

Kingpin: 3.5 inch

Landing gear: JOST C200

Hydraulic power station: Diesel engine

Suspension: Hydraulic suspension

Tire: 24 units

Braking system: WABCO emergency valve



Wind Turbine Blade Trailer





Advantages of the Wind Turbine Blade Trailer

1. The whole wind turbine blade trailer is made of high-quality HG60 steel, which has the characteristics of high strength, high rigidity and not easy to deform.

2. Structural features of the wind turbine trailer: The wind turbine trailer has flat, concave beam, leaking tires, and pull-out structures.

3. Suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axle balance type or rigid suspension, and a mass balance block is installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the force.



Wind Turbine Blade Trailer for Hauling Wind Turbine Blades Display Video

Review

Mr Tafad from Vietnam - 2022-09-26T11:09:02+0800
I have been using the TITAN wind turbine blade trailer 6 axle 62m for half a year, it feels very good, easy to operate, they have technical guidance, I will recommend it to my friends.
