Ordinary extendable semi-trailers are a bit similar to low bed trailer transport vehicles, but the girder adopts a buckle box design. The girder is pulled to adjust the length of the vehicle to adapt to the transportation of vanes of different lengths. It is understood that the current domestic pumping The pull-type vane transport semi-trailer can be up to 50 meters long.

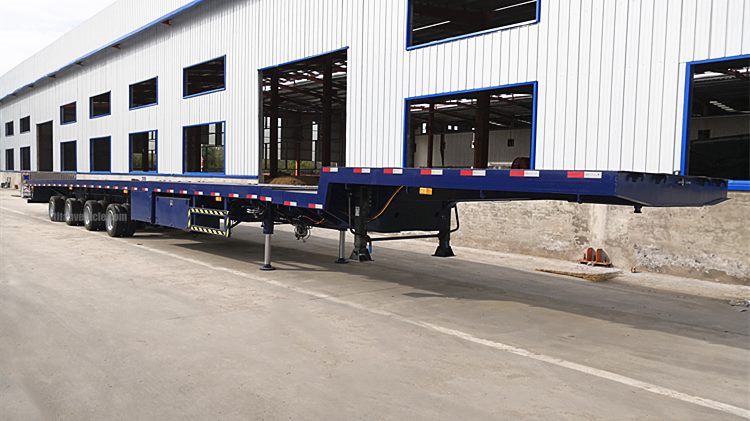

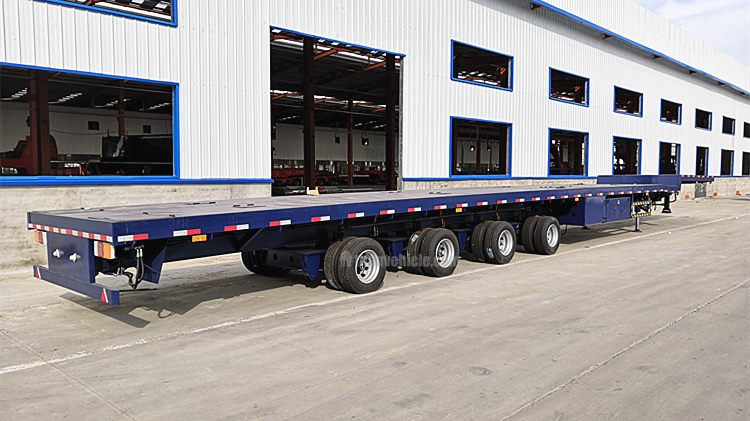

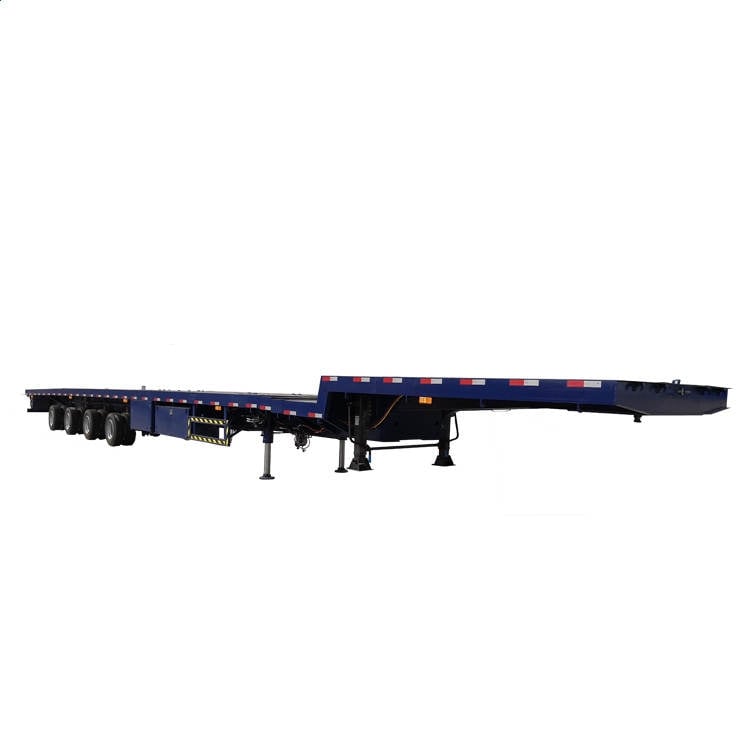

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer
Dimension: 22,450mmX3120mmX 1580mm
Total length: 61,000mm after extension
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 4 axle
Suspension: Hydraulic suspension.
Tire: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200

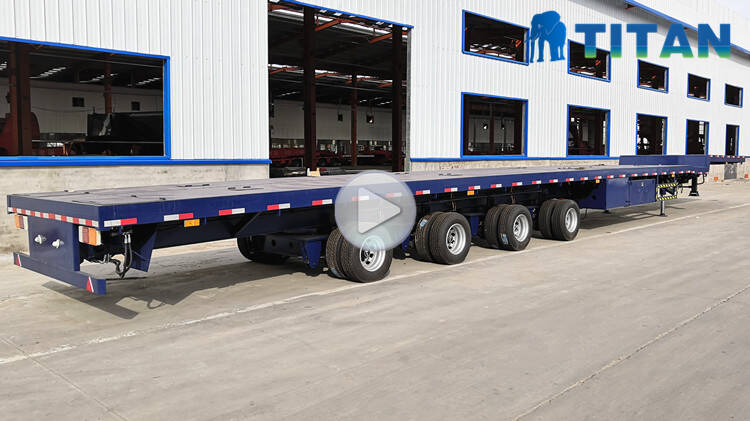

Through the video you can learn more about the telescopic trailer , extendable semi-trailer , wind turbine trailer etc.
Please click "TITAN Telescopic Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
