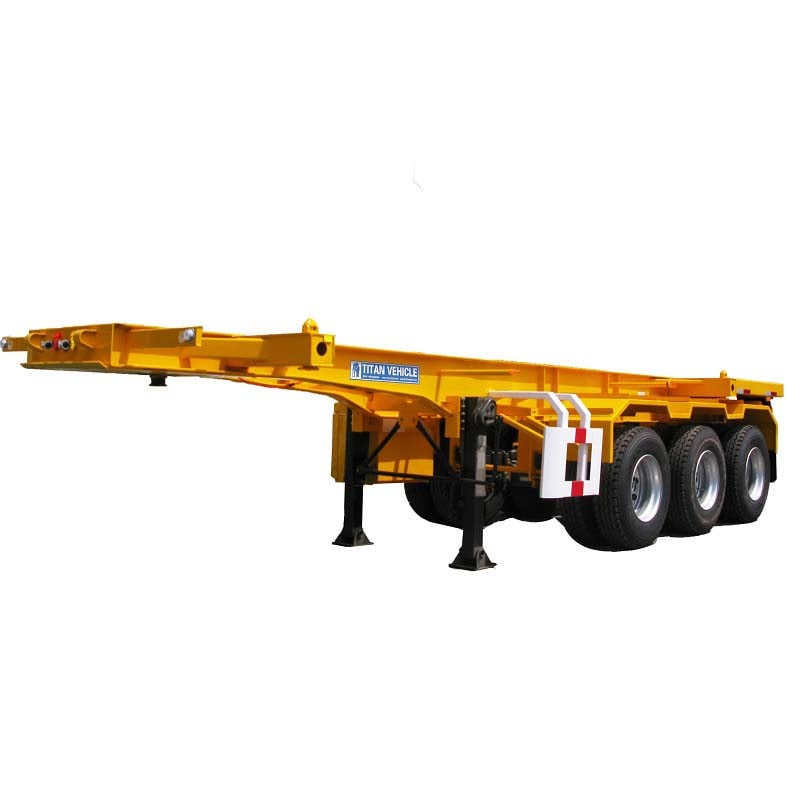

Tri Axle 20ft Skeletal trailer

Product Description:

Use a Tri Axle 20ft Skeletal trailer to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.

TITAN tri axle skeletal trailer can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension.

Tri Axle 20ft Skeletal trailer for Sale

Tri axle skeletal trailer Specifications:

Dimension(mm): 6200x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)
