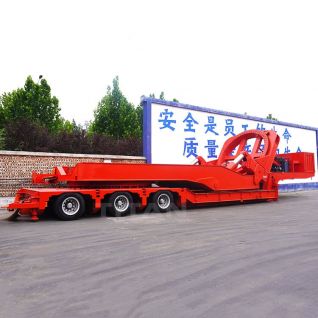

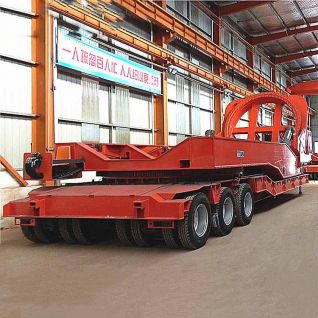

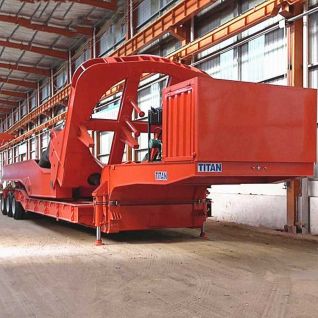

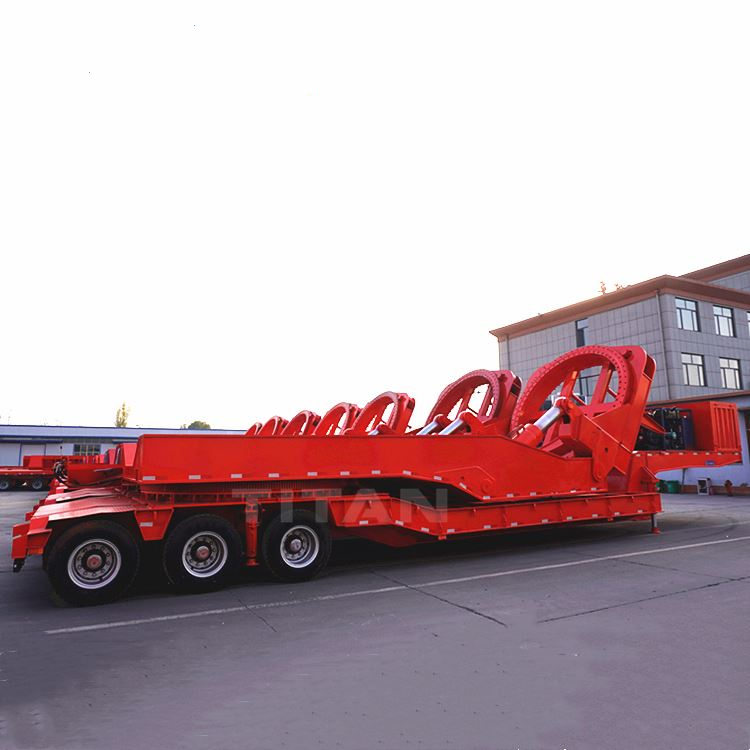

Wind Blade Lifter Adaptor

Wind Blade Lifter Adaptor Product Description:

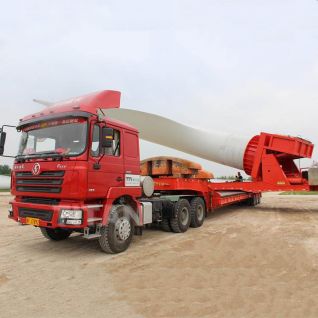

The wind blade lifter adaptor adopts the pulling structure to extend the length, and the wind blade lies flat on top of the trailer.

The significant feature of the wind blade transport semi-trailer is that it is super long and has longitudinal expansion and contraction. Due to the super length of the vehicle type, the turning difficulty is significantly increased. To overcome driving on the curve, the wind blade transport vehicle is generally equipped with a hydraulic steering system, and the rear axle is fitted with a power station.

.

Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification:121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Advantage:

1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.

2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

Through this video, you can learn more details about wind blade lifter adaptor , wind blade lifter adaptor for sale , 3 line 6 axle wind blade lifter adaptor, etc.

If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
