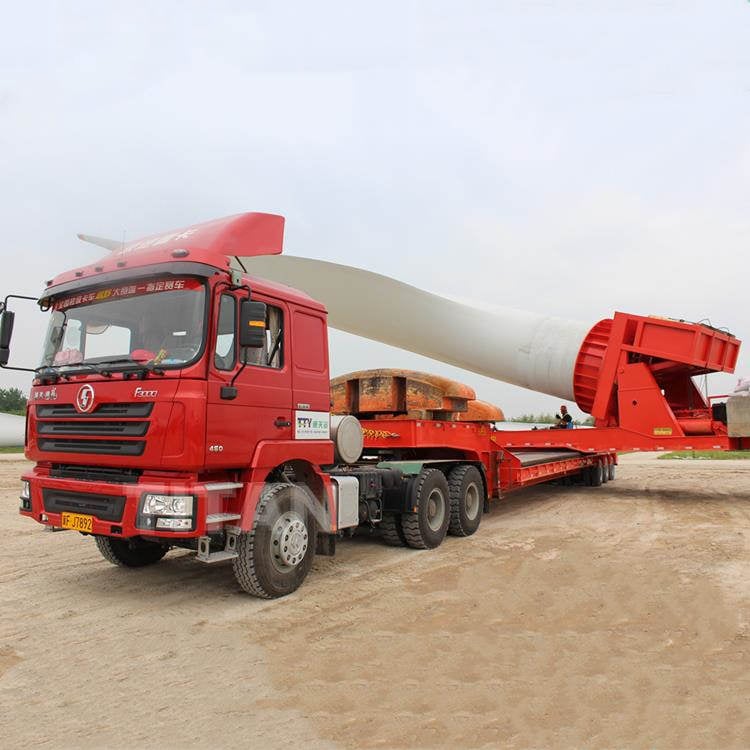

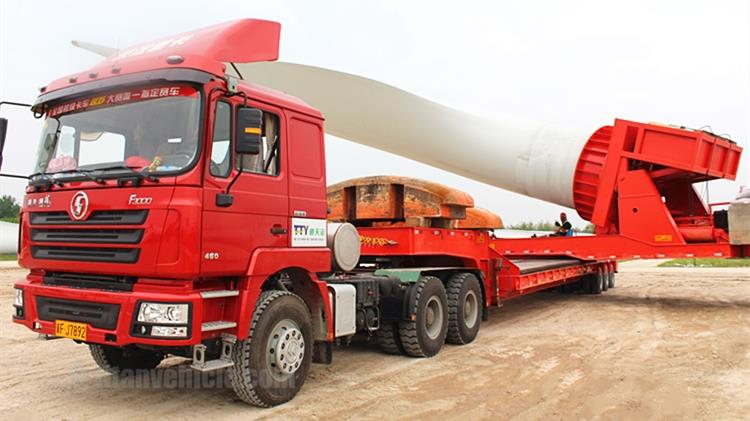

In this design structure, the turbine blade is fixed on the adapter. What makes this trailer special is that the adaptor is customized for the blade. That means it will unlikely be used for another function. It is the kind of trailer you need if all you want to do is transport wind turbine blades only.
Brand: TITAN Adapter trailer for 80m wind turbine blade transportation
Dimension: 16250mm*3700mm*5000mm
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine
Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model
Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16
These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.
Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.
Through the video, you can know different types of wind turbine blade trailer , 3 line 6 axle wind turbine blade , wind turbine blade transport trailer, etc.
