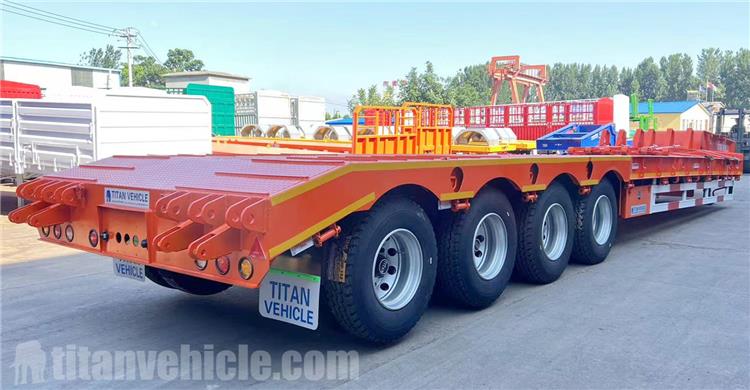

100 Ton Low Loader Semi Trailer for Sale In Jamaica

Jamaica customer learned about TITAN 100 ton low loader semi trailer through a friend's introduction. The client operates a local transportation company in Jamaica, mainly transporting heavy equipment such as excavators and tractors. After consulting several semi-trailer manufacturers, the customer finally chose to cooperate with TITAN. Now, this 100 ton low loader semi trailer specially designed for transporting excavators has been produced. Shipping soon.

Most 100 ton low loader semi trailers are equipped with special braces that easily disconnect the trailer from the towing vehicle and secure it securely in the parking lot. The load capacity of each model of these supports varies, but usually averages 22 tons. There are two such supports, the front and the rear.

100 ton low loader semi trailer is designed to transport various equipment and other oversized cargo. There are other types of 100 ton low loader semi trailer used in construction, agriculture, and other engineering facilities. The main types of equipment transported by 100 ton low loader semi trailer heavy-duty trucks include road construction or military equipment.

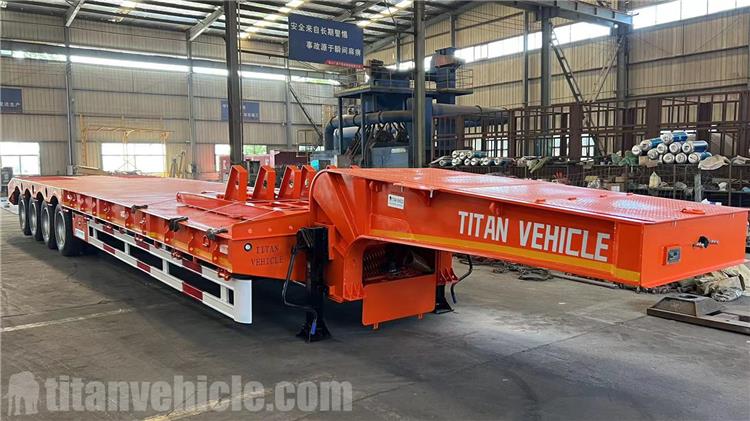

100 Ton Low Loader Semi Trailer for Sale In Jamaica

100 ton low loader semi trailer has a wide range of applications: 100 ton low loader semi trailer is widely used in long-distance transportation, because compared with traditional trucks, 100 ton low loader semi trailer has a larger loading capacity, and it is mainly used for bulky cargo transportation. It is mainly suitable for the transportation of various mechanical equipment, road construction and large steel products.

The 100 ton low loader semi trailer adopts a four-axis balance type. The specific method is to install mass balance blocks between the front and rear leaf springs, so that the deflection of the front and rear leaf springs can be changed in equal amounts. Make the force on the front and rear axles evenly balanced.

The frame of 100 ton low loader trailer is mainly composed of beam-type welded I-beam, supporting beam, connecting beam, side beam, lock head, traction pin connecting device, panel and so on.

100 Ton Low Loader Semi Trailer for Sale In Jamaica

Using high-strength structural steel, it has tensile strength and high load-bearing capacity, and the load-bearing capacity of the 4 axle low loader semi trailer can reach 100 tons.

The traction pin is an important part that connects the 100 ton low loader trailer for sale and bears the traction force and is connected with the fifth wheel. Generally forged from chrome alloy structural steel. According to different cargo tonnage, there are 50# traction pin and 90# traction pin. Generally limited to the total weight of 100 ton low loader semi trailer and cargo. 50# pins are used below 50T, and 90# pins are used above 50T. Above 90T, use 90# traction pin insurance. The 100 ton low loader semi trailer uses a 90 (3.5 inch) # bolt style drag pin.

Generally, the suspension of 100 ton low loader semi trailer adopts mechanical suspension, which is composed of series leaf spring and suspension support, which is used to support the load and slow down the impact of vehicle dynamic load. Due to the different uses of special vehicles, there are also different requirements for the design of the suspension. There are four commonly used suspensions: mechanical suspension, bogie suspension, air suspension

You can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
