Use a 20ft/40ft skel trailer for sale to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.
TITAN skel trailer can be customized to 20ft/40ft/45ft. We also provide customers with different options.

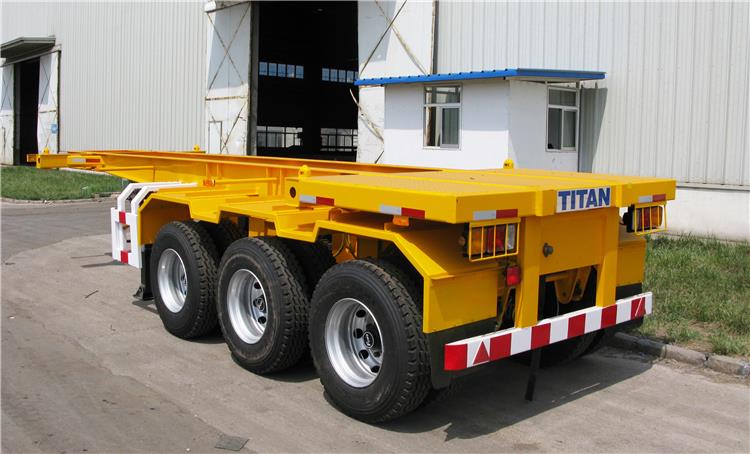

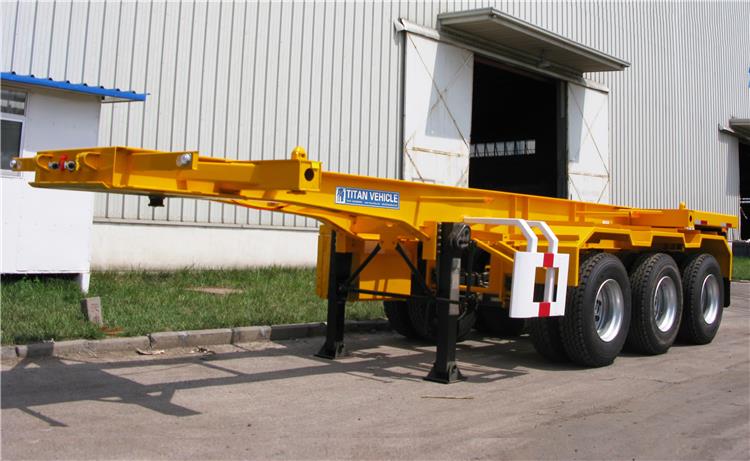

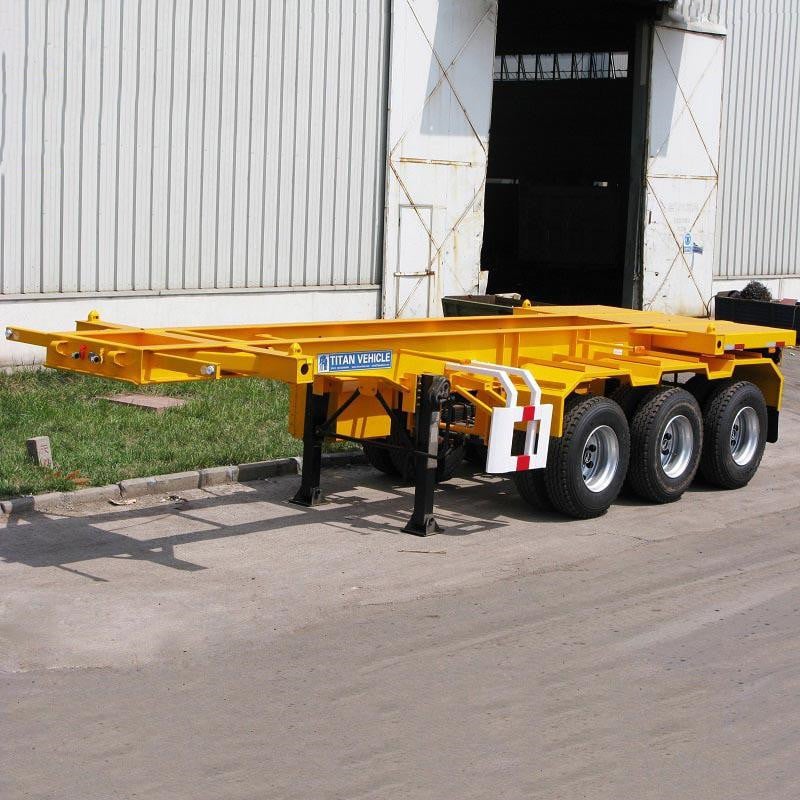

3 Axle 20ft Skel Trailer for Sale

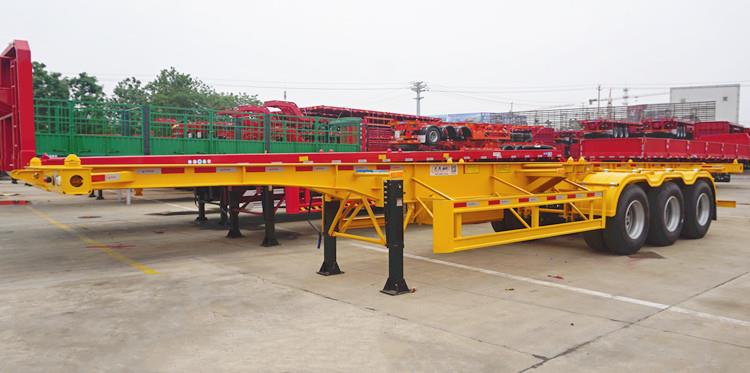

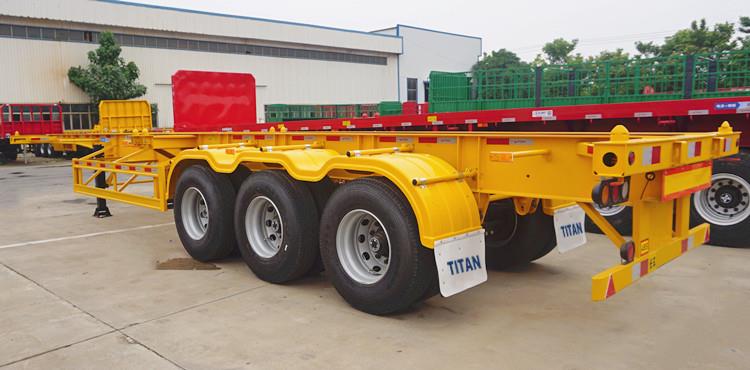

40ft skel trailer for sale
Dimension(mm): 7200x2500x1620mm(20ft) 12500x2500x1620mm(40ft)
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Drawing of 40ft skel trailer for sale

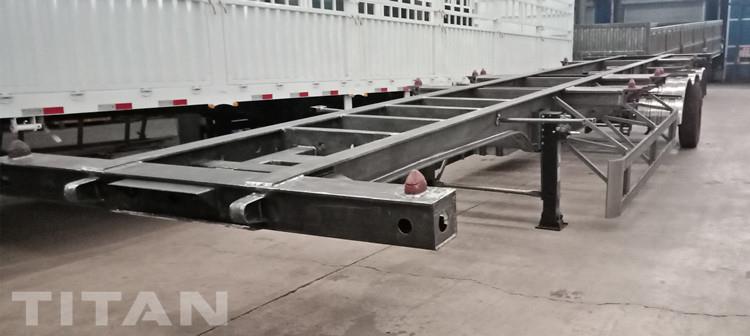

1. Frame of skel trailer for sale.
The 40ft skel trailer frame part is the main load bearing part, which is composed of beam, side beam and floor.
The thickness of the 20ft skel trailer for sale beam part depends on whether the thickness is an international standard. The international standard for the frame of the skeleton car is 14/8/16 mm. The semi skel trailer for sale material of the steel plate in the middle of the trailer skeleton beam is Q345B or manganese steel with a thickness of 8mm. Many unreliable suppliers will use 6mm Thickness beam slabs to save costs, but the carrying capacity was reduced by 26%. The international standard thickness of the middle part of the beam must be 8mm.

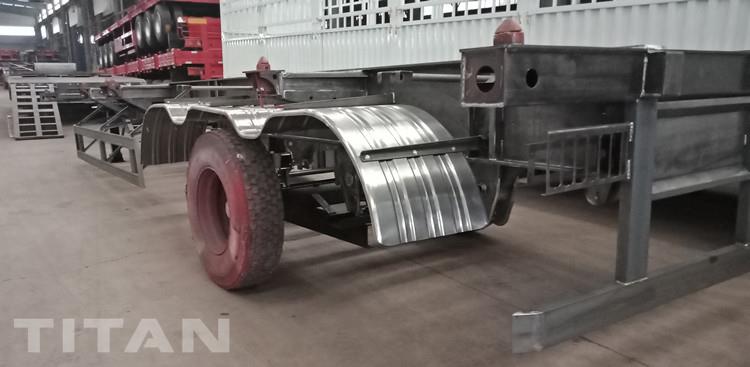

2. Axle of the skel trailer.
The axles of the semi skel trailer for sale are divided into three types: 13 ton coil carrier trailer axles, 13 ton axles + 16 ton container skel trailer brake system axles, 16 ton axles.
The axles of the 20ft skel trailer for sale are 13 ton axles + 16 ton brake system axles. The braking performance is better, and the braking distance is shortened by more than 5 meters.
3. Tire of the semi skel trailer for sale.
The 20ft skel trailer for sale uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.
The TITAN semi skel trailer for sale uses factory-made, wear-resistant tires. On Chinese highways, TITAN 40ft skel trailer tires can reach more than 300,000 kilometers.
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Container Skeleton Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
