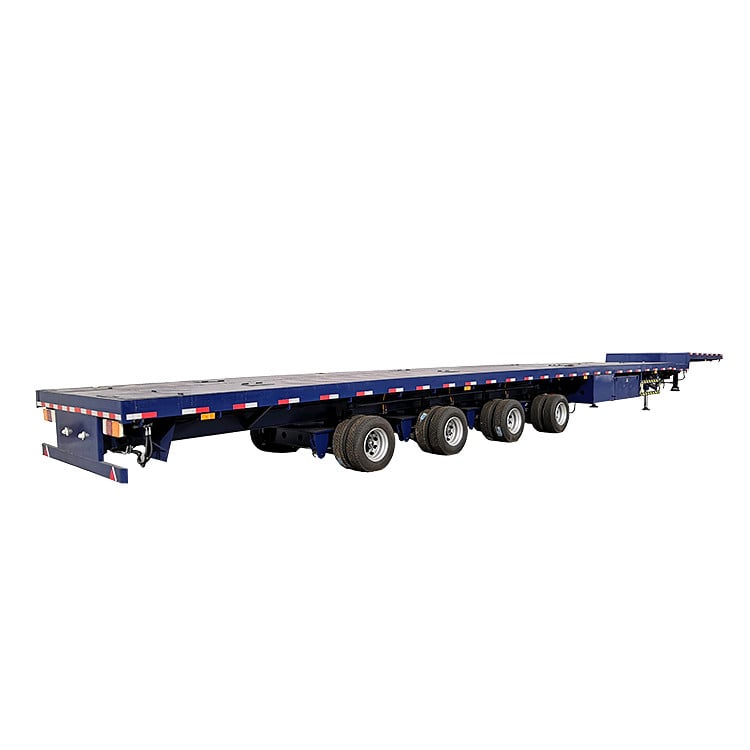

4 Axle Extendable Blade Trailer
4 Axle Extendable Blade Trailer

4 Axle Extendable Blade Trailer

61530 USD

Different Parameters, Different Price. Price Reference Only.



4 Axle Extendable Blade Trailer is specially designed for transporting wind turbine blades on ordinary roads. The pull-out wind power blade transport vehicle can be extended and contracted more than 3 times on its working platform to adapt to the transportation of wind power blades of different lengths.

SKU: 4 Axle Extendable Blade Trailer
MPN: TITAN9410052
Brand: TITAN

4 Axle Extendable Blade Trailer Product Description:

Our extendable trailers feature a flat, extendible load floor and hydraulically forced steering. The very large steering angle makes the manoeuvrability of the TITAN extendable trailer exceptional. Moreover, this hydraulic steering of the ballasttrailer and teletrailer ensures the maintenance costs are very low and tyre wear is kept to a minimum. Extendable trailer and telescopic trailer for sale from China TITAN are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 62 meters.

4 Axle Extendable Blade Trailer for Sale in Vietnam

4 Axle Extendable Blade Trailer for Sale in Vietnam

4 Axle Extendable Blade Trailer for Sale in Vietnam

4 Axle Extendable Blade Trailer for Sale in Vietnam

4 Axle Extendable Blade Trailer for Sale in Vietnam



Specification:

Brand: TITAN 4 Axle Extendable Wind Turbine Trailer

Dimension: 22,450mmX3120mmX 1580mm

Total length: 61,000mm after extension

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 4 axle

Suspension: Hydraulic suspension.

Tire: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200

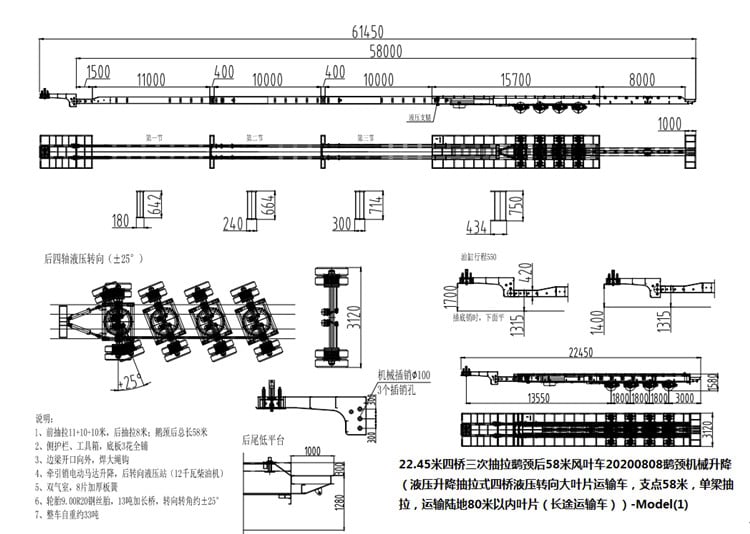

4 Axle Extendable Blade Trailer drawing
