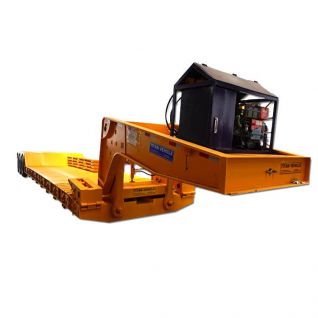

4 Axle Rgn Lowboy Trailer

4 Axle Rgn Lowboy Trailer Product Description:

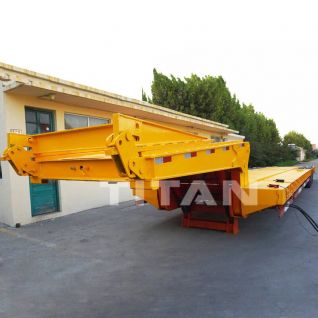

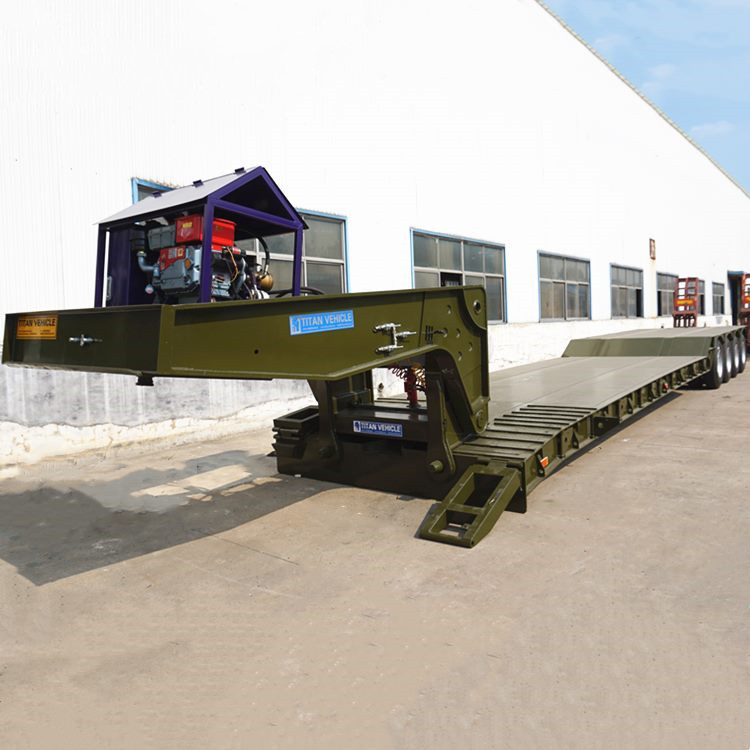

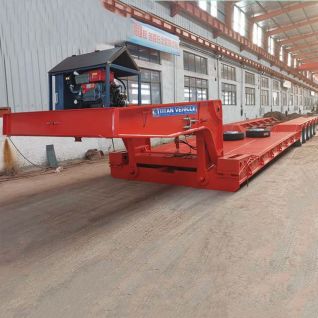

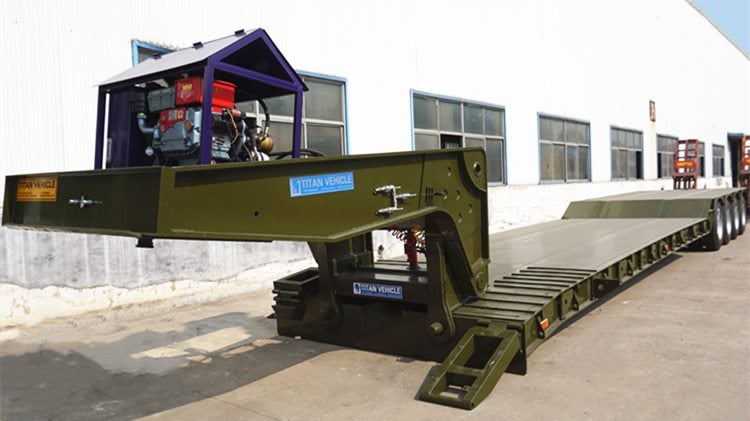

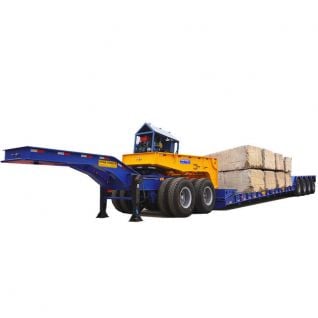

TITAN rgn lowboy trailers for transport excavator and construction equipment, large machinery transportation . With our increased cylinder stroke you can raise the trailer chassis as high as possible off the ground depending on the truck fifth wheel height. We can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton.

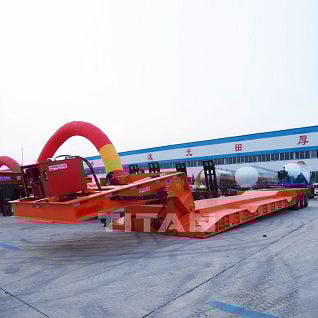

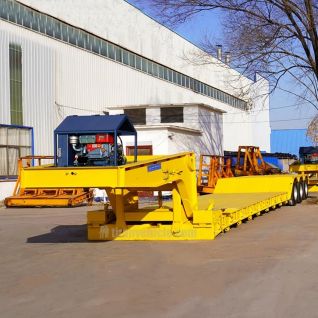

We offer rgn lowboy trailers in multiple types. These include flatbed version with the floor over the tires, equipment hauler style with fenders, and tilting deck in both deckover and floor between the fenders configuration. We offer detachable gooseneck trailers up to 55 ton capacity.

Specification:

Dimension: 16500mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

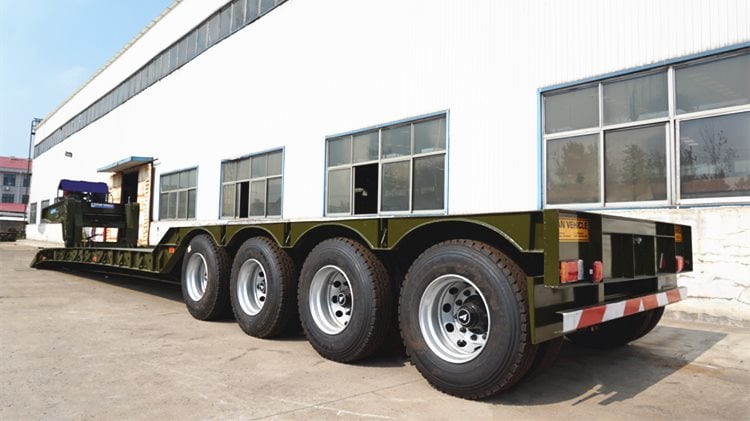

Axle: 4 axles, 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

If you want to know more details about the trailer, please click here "Removable Gooseneck Trailer" to watch the video!
